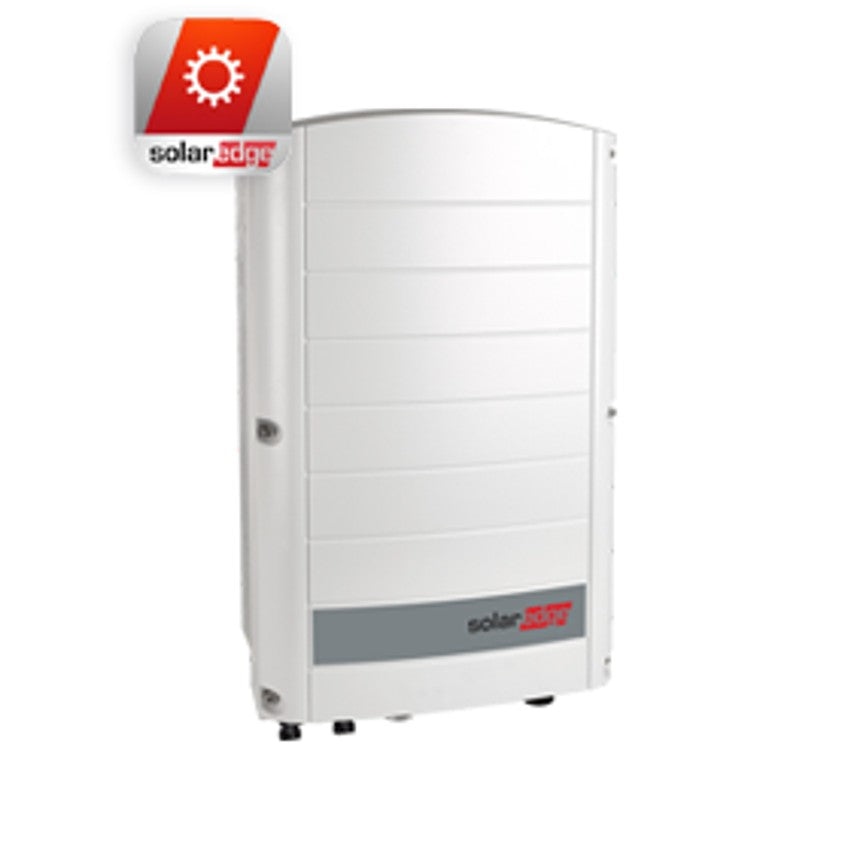

SolarEdge 10,000W Home Wave Inverter - Three Phase

SolarEdge 10,000W Home Wave Inverter - Three Phase

The SolarEdge SE-10000-3PH-NET is a 10kW three-phase Home Wave Inverter with SetApp functionality specifically designed to work with SolarEdge power optimisers. It combines sophisticated digital control technology with efficient power conversion architecture to achieve superior solar power harvesting and best-in-class reliability, featuring fixed-voltage technology that ensures optimal input voltage operation regardless of module count or environmental conditions.

Key Technical Details

• Product: SolarEdge 10,000W Home Wave Inverter - Three Phase
• Part No: SE-10000-3PH-NET
• Supplier Part No: SE10K-RW0TEBEN4
• Rated power: 10,000 W
• Rated AC power output: 10,000 VA
• Maximum DC power: 13,500 W
• Maximum DC power (Module STC): 13,500 W
• Maximum AC power (5 minutes): 10,000 W
• Surge AC power (1 second): 10,000 W
• Maximum continuous output current (per phase): 16 A
• Maximum input voltage: 900 V
• Minimum MPPT voltage: 750 V
• Maximum MPPT voltage: 900 V
• Maximum DC current: 16.5 A
• Maximum DC inputs: 2
• MPPT quantity: 2
• Maximum inverter efficiency: 98%
• Euro efficiency: 97.6%
• Connector type: MC4
• Included connectors: 4
• Transformer: None
• Integrated DC switch: Yes
• Dimensions (H x W x D): 540 x 315 x 191 mm
• Weight: 16.4 kg
• IP rating: IP65
• Number of phases: 3
• Communication: Ethernet, RS485, (WiFi, ZigBee, cellular optional)
• Standard warranty: 12 years

Key Features

• Specifically designed to work with SolarEdge power optimisers
• Quick and simple commissioning on a smartphone via SolarEdge SetApp
• Compact, lightweight and easy to install
• Built-in module-level monitoring
• IP65 rated - suitable for outdoor and indoor installation
• Smart Energy Management control
• Perfect for residential systems - low noise level with no external fan
• Advanced safety features - integrated arc fault protection and SafeDC
• Combines sophisticated digital control technology with efficient power conversion architecture
• Fixed-voltage technology ensures optimal input voltage operation
• Proprietary data monitoring receiver integrated into inverter

System Capabilities

• Oversizing up to 135% possible
• Superior solar power harvesting with best-in-class reliability
• Aggregates power optimiser performance data from each PV module
• Data transmission to web via SolarEdge Monitoring Portal for performance analysis, fault detection and troubleshooting
• Export limitations possible using meter
• Fixed-voltage technology ensures inverter operates at optimal input voltage regardless of module count or environmental conditions
• Tested and certified according to G98 or G99 with most recent firmware version

Installation Notes

• Three-phase residential and commercial installation
• Important: This inverter has no trackers and requires power optimisers to function
• No display - commissioned via SolarEdge SetApp mobile application
• UK only: Tested and certified according to G98 or G99, but only with most recent firmware version
• Important: Please update inverter firmware during SetApp phone app commissioning process as per Installation Manual
• New communication board version requires setup and commissioning via SolarEdge SetApp mobile application
• Integrated DC switch included
• DC fuses: Not included
• IP65 rating suitable for outdoor and indoor installation
• Requires suitable SolarEdge power optimiser for operation
• Extended warranty options available: 20-year and 25-year extensions
