Key Information
- The ultimate home energy manager in charge of PV production, battery storage, backup operation during a power outage (may require additional hardware), and smart energy devices
- Record-breaking 99% weighted efficiency with up to 200% DC oversizing
- Small, lightweight, and easy to install
- Advanced safety features with integrated arc fault protection
- Enables module-level monitoring and full visibility of battery status, PV production, and self-consumption data
- A scalable solution that supports future homeowner needs through easy connection to a growing ecosystem of products
SolarEdge
SolarEdge 10,000W Home Hub Inverter with Whole Home Backup Potential 1PH
SolarEdge 10,000W Home Hub Inverter with Whole Home Backup Potential 1PH
Share

SolarEdge 10,000W Home Hub Inverter with Whole Home Backup Potential 1PH

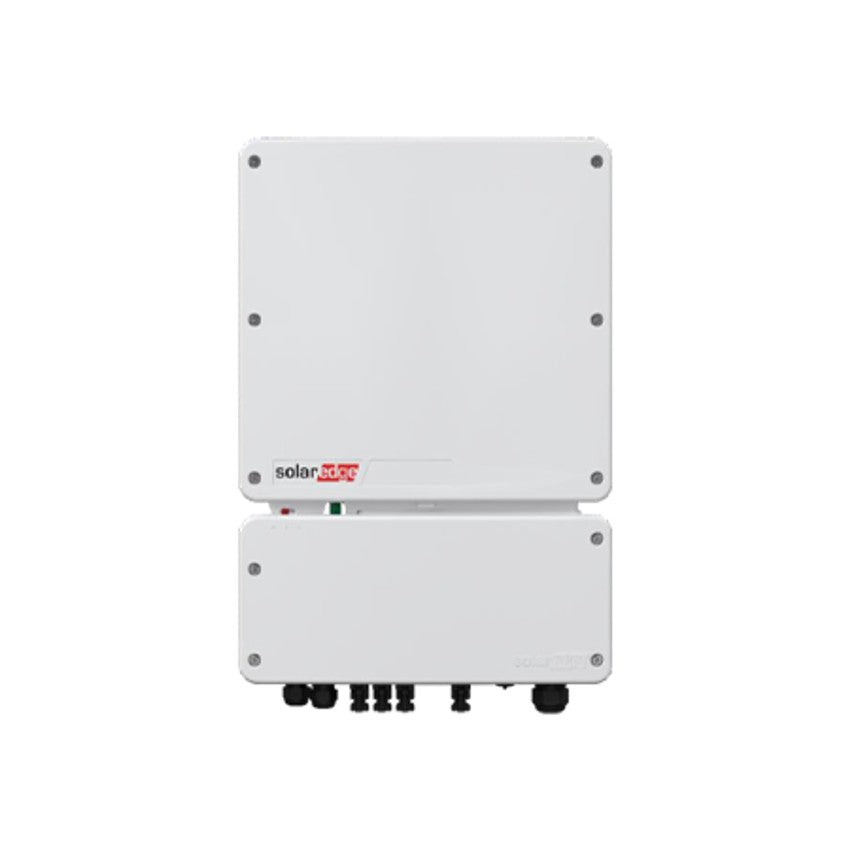

The SolarEdge SE-10000H-NET-RWB is a 10kW single-phase Home Hub Inverter designed for storage and backup applications. It manages PV production, battery storage, and backup operation during power outages, featuring record-breaking 99% weighted efficiency with up to 200% DC oversizing capability and seamless integration with the SolarEdge Home ecosystem.
Key Technical Details
- Product: SolarEdge 10,000W Home Hub Inverter with Whole Home Backup Potential 1PH
- Part No: SE-10000H-NET-RWB
- Supplier Part No: SE10000H-RWBMNBF54
- Rated power: 10,000 W
- Rated AC power output: 10,000 VA
- Maximum DC power (Module STC): 20,000 W
- Maximum AC power (5 minutes): 6,000 W
- Surge AC power (1 second): 6,000 W
- Maximum backup power output: 10,000 VA
- Maximum current: 45.5 A
- Maximum backup current: 45.5 A
- AC output voltage range: 184 - 264.5 Vac
- Maximum input voltage: 480 V
- Nominal DC input voltage: 380 V
- Minimum MPPT voltage: 380 V
- Maximum MPPT voltage: 480 V
- Maximum DC current: 25.5 A (16.5 A)
- Maximum DC inputs: 2
- MPPT quantity: 2
- Peak inverter efficiency: 99.2%
- Euro efficiency: 99%
- Connector type: MC4
- Included connectors: 0
- Transformer: None
- Integrated DC switch: No
- Dimensions (H x W x D): 535 x 370 x 185 mm
- Weight: 19.6 kg
- Protection rating: IP65
- Number of phases: 1
- Communication: RS485, Ethernet, WiFi, SolarEdge Home Network
Key Features
- Ultimate home energy manager in charge of PV production, battery storage, backup operation during power outages, and smart energy devices
- Record-breaking 99% weighted efficiency with up to 200% DC oversizing
- Small, lightweight, and easy to install
- Advanced safety features with integrated arc fault protection
- Enables module-level monitoring and full visibility of battery status, PV production, and self-consumption data
- Scalable solution that supports future homeowner needs through easy connection to growing ecosystem of products
- Seamless integration with complete SolarEdge Home ecosystem through SolarEdge Home Network
- Combines sophisticated digital control technology with efficient power conversion architecture
- Proprietary data monitoring receiver integrated into inverter
System Capabilities
- Supported battery: SolarEdge Home Battery 400V
- Number of batteries per inverter: 1-3
- Continuous discharge power: 5,000W per battery (limited to inverter rated AC power)
- Backup capability requires SolarEdge Backup Interface (SE-SBI-1PH)
- Inverter can work without the Backup Interface
- Can be installed alongside SolarEdge power optimisers, batteries, EV charger, backup applications
- Aggregates power optimiser performance data from each PV module
- Data transmission to SolarEdge Monitoring Portal for performance analysis, fault detection and troubleshooting
Installation Notes
- Single-phase residential installation for storage and backup applications
- Requires SolarEdge Backup Interface (SE-SBI-1PH) for backup function to work
- Only certified to be installed in UK, Spain and France
- Important: With a TN-C-S supply and the SolarEdge Backup Interface, you MUST install an earth electrode to the MET. Please refer to 'SolarEdge QIG UK ONLY (Corrected)' for full details
- Commissioned via SolarEdge SetApp mobile application
- Compact and lightweight design for easy installation
- IP65 rating suitable for outdoor and indoor installation
- Requires suitable SolarEdge power optimiser for operation
- Backup applications subject to local regulations and require connection with SolarEdge Home Batteries and SolarEdge Home Backup Interface
