Part No:LR7-54HTH-460M-SDM1
Quick Find:1800x1134x30mm
No Stock, Please Enquire!
Key Information
- Up to 23.0% Efficiency 455 - 470W
- Panel Rating 460W Efficiency: 22.5%
- <1.5%W First year Power Degredation
- .40%W year 2-25 Power Degredation
- Maximum Series Voltage: DC1500V
- Power Tolerance 0~3%
- 21.6KG
- Connector: MC4 EVO4
- Product Warranty: 25 Years
- Dimensions: 1800mm x 1134mm x 30mm
- Winner of the 2021 Intersolar Award, RETC high achiever award 4 years in a row
- Revolutionary Hybrid Passivated Back Contact (HPBC) Technology
- High micro-crack resistance for improved reliability
- Improved low light performance
- Busbar-free design for a seamless, modern appearance.
- High temperature restriction for improved fire safety
- Better temperature coefficient at -0.28%/℃
450-500W
Longi

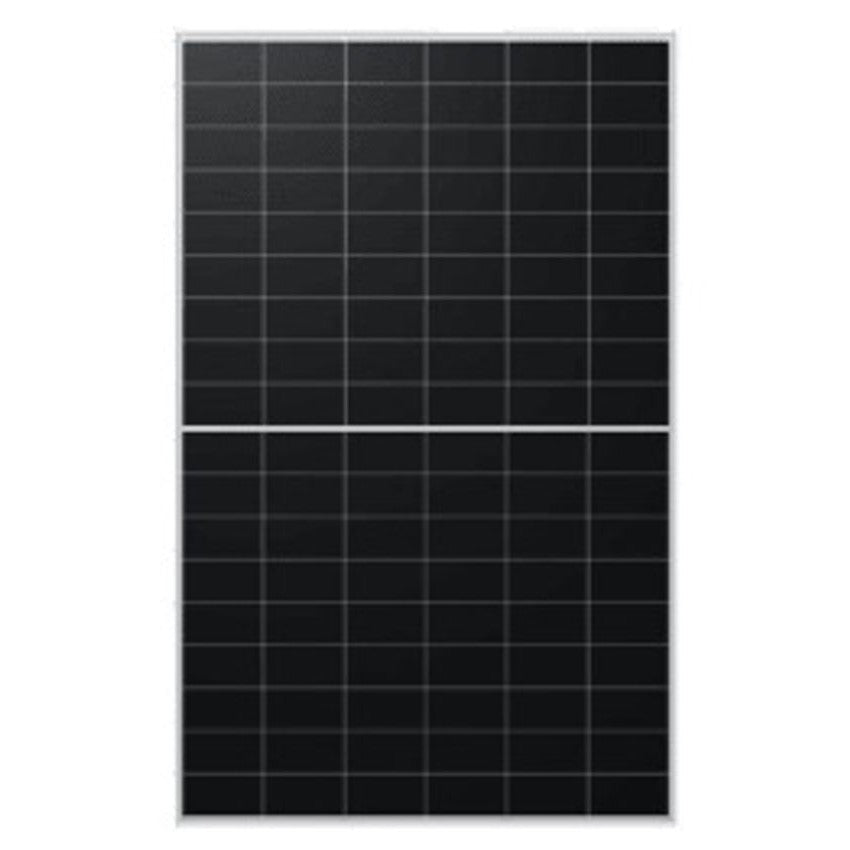

Longi 460W Hi-MO X6 Max Explorer HPBC Half Cell Black Frame SDM1
Longi 460W Hi-MO X6 Max Explorer HPBC Half Cell Black Frame SDM1
Regular price
£55.89
Regular price
Sale price
£55.89
Unit price
/
per
Share

Longi Hi-MO X6 Max Explorer 460W HPBC Half Cell Black Frame SDM1
The Longi Hi-MO X6 Max Explorer 460W module is designed for residential systems that require a balance of high efficiency, durability and clean visual presentation. Using advanced Hybrid Passivated Back Contact cell technology, this half cell module delivers strong performance, improved low light response and long term reliability in a robust black frame format.
Key Technical Details
- Power Rating: 460W
- Module Efficiency: 22.5%
- Width: 1,134mm
- Height: 1,800mm
- Dimensions: 1800mm x 1134mm x 30mm
- Weight: 21.6KG
- Technology: Hybrid Passivated Back Contact (HPBC)
- Part Number: LR7 54HTH 460M SDM1
- Model Number: LR7 54HTH 460M SDM1
- Panel Class: Monocrystalline
- Efficiency Range: Up to 23.0% (455W to 470W modules)
- Panel Efficiency (460W): 22.5%
- First Year Power Degradation: <1.5%W
- Annual Power Degradation (Years 2 to 25): .40%W
- Power Tolerance: 0~3%
- Maximum Series Voltage: DC1500V
- Connector: MC4 EVO4
- Product Warranty: 25 years
Why the Hi-MO X6 Max Explorer Series Stands Out
Hi-MO X6 Max Explorer modules use back contact architecture to increase active light absorption while removing front side busbars. This design improves efficiency, enhances low light performance and delivers a seamless, modern appearance suited to contemporary residential rooftops.
Longi Key Features
- Winner of the 2021 Intersolar Award and RETC High Achiever Award for four consecutive years
- Revolutionary Hybrid Passivated Back Contact technology
- High resistance to micro cracking for improved reliability
- Improved low light performance for higher real world yield
- Busbar free design for a clean, modern appearance
- High temperature restriction for improved fire safety
- Temperature coefficient of -0.28%/℃
