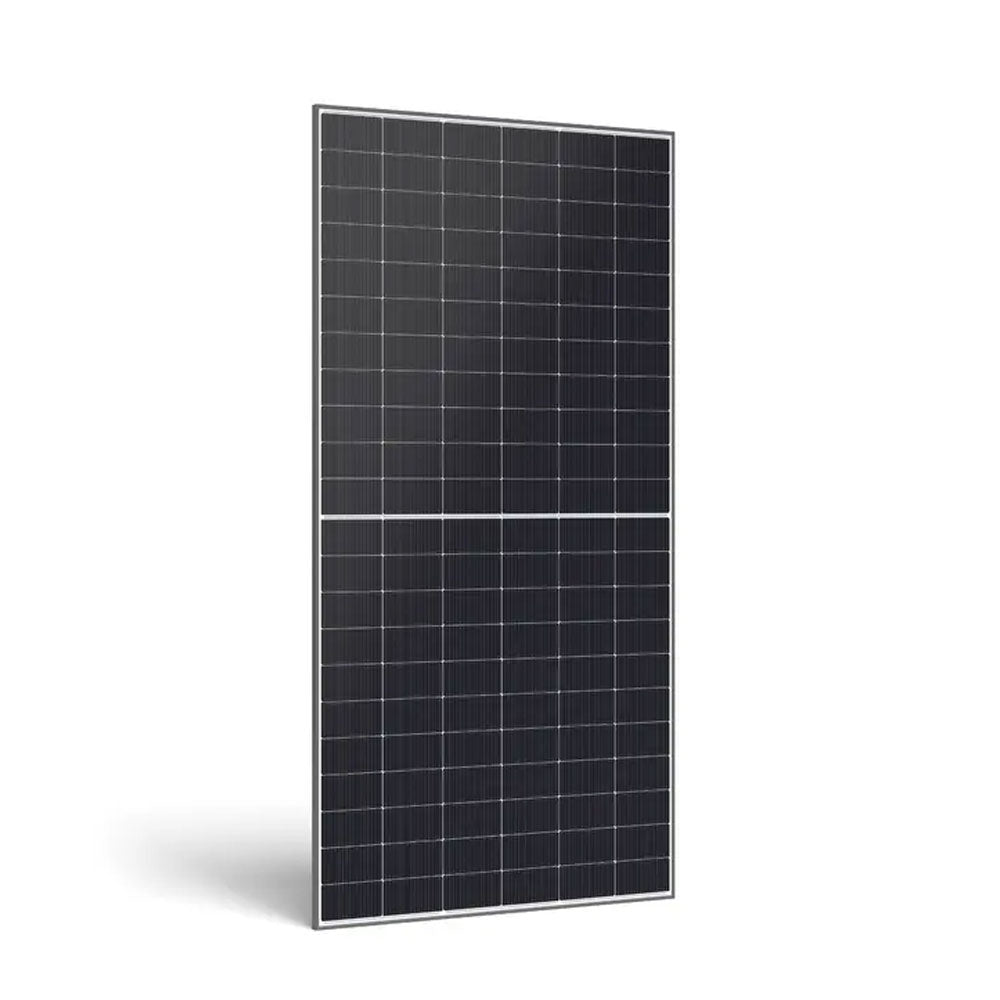

JA Solar 540W N-Type TOPCon Bifacial Double-Glass Solar Panel – Black Frame
The JA Solar JAM60D-42-540-LB-TS-BF is a 540 W N-type TOPCon bifacial double-glass solar panel featuring MBB (multi-busbar) half-cell technology in a 60-cell configuration. With 23.1% front-side module efficiency, bifacial energy gain from the rear side, a temperature coefficient of -0.30%/°C, and very low LID (light-induced degradation), this panel delivers high energy yield for commercial and residential PV systems. Part of the JA Solar D42 module series and the Integrated Traceable System (ITS) for full supply chain traceability. Black frame. 1,500 V DC maximum system voltage. MC4-EVO2A connectors. Clamping on long side only. 12-year product warranty, 30-year performance warranty. MCS certified. Available from DECO Group, a UK-based solar trade wholesaler.
Key Technical Details
Electrical (STC, Front Side)
- Part number: JAM60D-42-540-LB-TS-BF
- Module type: N-type TOPCon bifacial double-glass, MBB half-cell
- Number of cells: 60
- Rated power (Pmax): 540 W
- Module efficiency: 23.1%
- Open-circuit voltage (Voc): 44.33 V
- Voltage at Pmax (Vmp): 37.25 V
- Short-circuit current (Isc): 15.36 A
- Current at Pmax (Imp): 14.50 A
- Maximum system voltage: DC 1,500 V
- Temperature coefficient of Pmax: -0.30%/°C
- Bifacial: Yes (rear-side energy gain)
Mechanical
- Dimensions: 2,063 x 1,134 x 30 mm
- Weight: 28.8 kg
- Glass: Double glass (bifacial)
- Frame: Black
- Connector: MC4-EVO2A
- Clamping: Long side only
- Pallet: Oversized — forklift required for offloading
Key Features
- 540 W front-side rated output with additional bifacial rear-side energy gain
- 23.1% module efficiency with N-type TOPCon MBB half-cell technology
- Bifacial double-glass construction captures reflected light from the rear for higher total energy yield
- Very low LID (light-induced degradation) inherent to N-type technology
- Better weak illumination response for improved low-light generation
- Temperature coefficient of -0.30%/°C
- 1,500 V DC maximum system voltage
- JA Solar Integrated Traceable System (ITS) for full supply chain traceability
- MC4-EVO2A connectors
- MCS certified (BABT17001-1016-540W)
- 12-year product warranty and 30-year linear performance warranty
Warranty
- Product warranty: 12 years
- Linear power output warranty: 30 years
Installation Notes
- At 28.8 kg, a two-person lift is recommended
- Clamping on long side only
- Forklift required on site for pallet offloading due to oversized pallet dimensions
- Bifacial panels benefit from elevated mounting or light-coloured surfaces beneath to maximise rear-side energy gain
- Verify that open-circuit voltage at minimum expected temperature remains within inverter limits
- Must be installed by a qualified solar installer or competent electrician
Common Questions
Click a question below to reveal the answer.
What is the difference between bifacial and monofacial panels?
Bifacial panels capture light on both the front and rear sides, generating additional energy from reflected and diffuse light hitting the back of the panel. The 540 W rating is the front-side output; total energy yield is higher depending on the mounting configuration and surface reflectivity beneath the panel.
How does this compare to the JA Solar 470W monofacial panel?
The 540 W bifacial uses 60 cells in a larger format (2,063 x 1,134 mm vs 1,762 x 1,134 mm), with TOPCon technology and bifacial gain. The 470 W monofacial uses 54 cells in a more compact format. Both are N-type double-glass with MCS certification and ITS traceability. The 540 W also supports long-side clamping only (vs long and short side on the 470 W).
What warranty does this panel have?
12-year product warranty and 30-year linear power output warranty.
Do I need a forklift for delivery?
Yes. Due to the oversized pallet dimensions, a forklift is required on site for offloading.
About JA Solar
JA Solar is a leading global manufacturer of high-performance solar modules and one of the world's largest PV module suppliers. The D42 module series represents JA Solar's latest N-type TOPCon bifacial technology for maximum energy yield.
DECO Group is an authorised for JA Solar. We supply JA Solar panels alongside compatible inverters, mounting systems, and installation accessories. Browse our solar panel catalogue for residential and commercial PV modules.
