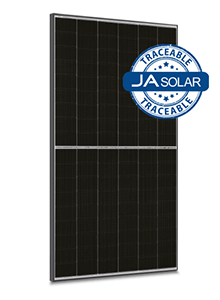

JA Solar 470W N-Type Double-Glass Monofacial Solar Panel – Black Frame
The JA Solar JAM54D-40-470-LR-TS-MC4 is a 470 W N-type double-glass monofacial solar panel featuring MBB (multi-busbar) half-cell technology in a 54-cell configuration. With 23.5% module efficiency, a temperature coefficient of -0.29%/°C, dual-glass construction, and lower LID (light-induced degradation) inherent to N-type cell technology, this panel delivers reliable performance for residential and commercial PV systems. Part of the JA Solar Integrated Traceable System (ITS) for full supply chain traceability. Black frame. 1,500 V DC maximum system voltage. MC4-EVO2 connectors. Clamping on long and short sides. 25-year product warranty, 30-year performance warranty. MCS certified. Available from DECO Group, a UK-based solar trade wholesaler.
Key Technical Details
Electrical (STC)
- Part number: JAM54D-40-470-LR-TS-MC4
- Module type: N-type double-glass monofacial, MBB half-cell
- Rated power (Pmax): 470 W
- Module efficiency: 23.5%
- Open-circuit voltage (Voc): 40.4 V
- Voltage at Pmax (Vmp): 33.84 V
- Short-circuit current (Isc): 14.66 A
- Current at Pmax (Imp): 13.89 A
- Maximum system voltage: DC 1,500 V
- Temperature coefficient of Pmax: -0.29%/°C
Mechanical
- Dimensions: 1,762 x 1,134 x 30 mm
- Weight: 22 kg
- Glass: Double glass (dual glass)
- Frame: Black
- Connector: MC4-EVO2
- Clamping: Long side and short side
- Pallet quantity: 36 panels maximum per order
Key Features
- 470 W rated output from a compact 54-cell half-cell format (1,762 x 1,134 mm)
- 23.5% module efficiency with N-type MBB half-cell technology
- Double-glass construction for enhanced durability and environmental resistance
- Lower LID (light-induced degradation) compared to P-type panels
- Better weak illumination response for improved generation in low-light conditions
- Temperature coefficient of -0.29%/°C
- 1,500 V DC maximum system voltage
- Clamping on both long and short sides for flexible mounting orientation
- JA Solar Integrated Traceable System (ITS) for full supply chain traceability
- MC4-EVO2 connectors
- MCS certified
- 25-year product warranty and 30-year linear performance warranty
Warranty
- Product warranty: 25 years
- Linear power output warranty: 30 years
Installation Notes
- At 22 kg, manageable for single-person installation
- Clamping on long side and short side for flexible mounting options
- Verify that open-circuit voltage at minimum expected temperature remains within inverter limits
- Must be installed by a qualified solar installer or competent electrician
Common Questions
Click a question below to reveal the answer.
What does "LR" and "TS" mean in the model number?
LR indicates a low-resistance variant for improved performance. TS indicates the panel is part of the JA Solar Integrated Traceable System (ITS), providing full supply chain traceability from cell to module.
What are the advantages of N-type over P-type panels?
N-type panels offer lower LID (light-induced degradation), better weak illumination response for improved low-light generation, and a better temperature coefficient, resulting in higher energy yield over the system lifetime.
Can this panel be clamped on the short side?
Yes. Unlike some panels that only support long-side clamping, the JA Solar 470 W supports clamping on both long and short sides, giving installers more flexibility in mounting orientation.
Is this panel MCS certified?
Yes. The JA Solar 470 W is MCS certified, qualifying for the Smart Export Guarantee in the UK.
