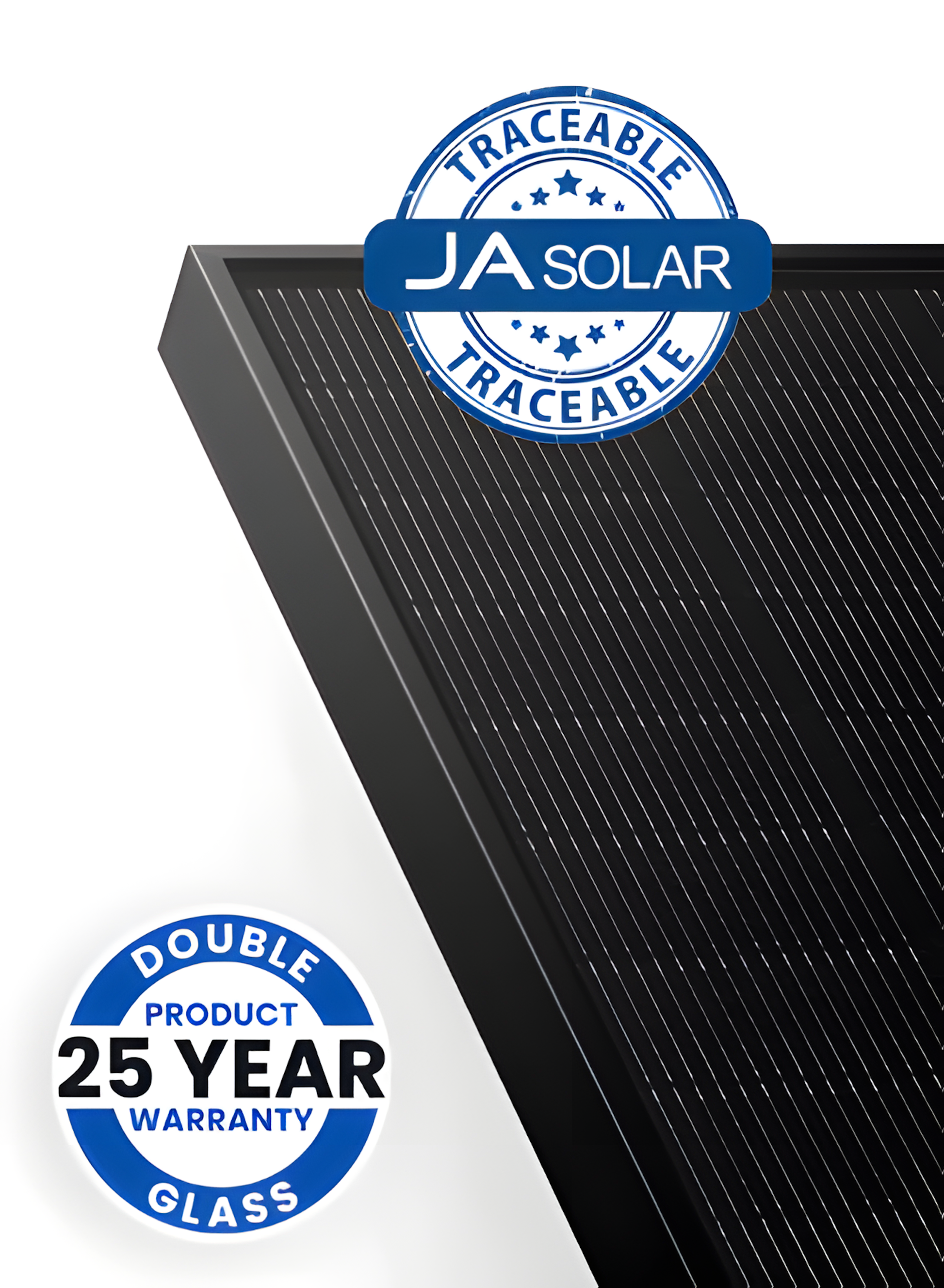

JA Solar 460W N-Type TOPCon All-Black Monofacial Double-Glass Solar Panel
The JA Solar JAM54D-41-460-LR-TS-AB-MC4 is a 460 W N-type TOPCon all-black monofacial double-glass solar panel from the JA Solar DeepBlue 4.0 series. With 23.0% module efficiency, 108 laser-traceable half-cut cells with 16-busbar MBB architecture, a temperature coefficient of -0.29%/°C, and double-glass construction (3.2 mm front and rear tempered glass), this panel delivers premium performance in a true all-black format (black frame, black cells, black rear glass). N-type TOPCon technology provides virtually zero LID, superior low-light response, and better temperature performance than standard P-type PERC panels. 1,500 V DC maximum system voltage. MC4 connectors with 1,200 mm landscape cable. 25-year product warranty, 30-year linear performance warranty. MCS eligible. Available from DECO Group, a UK-based solar trade wholesaler.
Key Technical Details
Electrical (STC)
- Part number: JAM54D-41-460-LR-TS-AB-MC4
- Series: JA Solar DeepBlue 4.0
- Cell type: N-type TOPCon monocrystalline (Bycium+)
- Cell configuration: 108 half-cut cells (54 x 2), 16 busbars per cell (MBB)
- Rated power (Pmax): 460 W (+0/-5 W tolerance)
- Module efficiency: 23.0%
- Open-circuit voltage (Voc): 40.6 V
- Voltage at Pmax (Vmp): 33.68 V
- Short-circuit current (Isc): 14.43 A
- Current at Pmax (Imp): 13.66 A
- Maximum system voltage: DC 1,500 V
- Series fuse rating: 30 A
Temperature Coefficients
- Temperature coefficient of Pmax: -0.29%/°C
- Temperature coefficient of Voc: -0.26%/°C
- Temperature coefficient of Isc: +0.046%/°C
- NOCT: 44 ± 2°C
- Operating temperature: -40°C to +85°C
Mechanical
- Dimensions: 1,762 x 1,134 x 30 mm
- Weight: 22 kg
- Front glass: 3.2 mm tempered
- Rear glass: 3.2 mm tempered (double glass, monofacial — opaque black)
- Frame: Anodised aluminium, all-black
- Junction box: IP68, 3 bypass diodes
- Connectors: MC4 (genuine)
- Cable: 4 mm², 1,200 mm landscape cable
- Maximum snow load: 5,400 Pa (front)
- Maximum wind load: 2,400 Pa
- Traceability: Laser-traceable (LR designation)
Key Features
- 460 W rated output with 23.0% efficiency from N-type TOPCon (Bycium+) cells
- True all-black aesthetic: black frame, black cells, black rear glass — no silver or white visible
- Double-glass construction (3.2 mm + 3.2 mm tempered glass) for 30+ year durability without a polymer backsheet
- Monofacial design — the appropriate choice for pitched roof installations where the rear is not exposed to light
- Virtually zero light-induced degradation (LID) with N-type technology
- Superior low-light and overcast performance from enhanced infrared spectral response
- Temperature coefficient of -0.29%/°C retains more output in warm conditions than standard PERC panels
- 108 half-cut cells with 16-busbar MBB design for reduced resistive losses and improved shade tolerance
- Laser-traceable cells (LR) for full supply chain transparency and ESG procurement compliance
- 5,400 Pa snow load and 2,400 Pa wind load
- 30-year linear performance warranty with ≥87.4% output retention
- MCS eligible
Degradation and Warranty
- First-year degradation: maximum 2%
- Annual degradation (year 2–30): ≤0.40% per year
- Output retention at 30 years: ≥87.4%
- Product warranty: 25 years
- Performance warranty: 30-year linear
Installation Notes
- At 22 kg, manageable for single-person installation
- 1,200 mm landscape cable included
- Clamping on long side; mid-clamps positioned within the marked clamp zone on the frame
- For standard aluminium rail mounting: M8 bolts at 22 Nm torque for mid-clamp mounting
- Verify that open-circuit voltage at minimum expected temperature remains within inverter limits
- Must be installed by a qualified solar installer or competent electrician
Common Questions
Click a question below to reveal the answer.
Why choose monofacial over bifacial for a UK rooftop?
For pitched roof installations where the rear of the panel faces the roof surface, bifacial rear-side gain is negligible (typically less than 2%). The monofacial double-glass version offers the same front-side performance with full all-black aesthetics. Bifacial panels are most beneficial in ground-mounted systems on light-coloured ground or elevated racking.
What does the "LR" laser traceability mean?
Each individual cell has a unique laser-etched identifier allowing it to be traced through the manufacturing supply chain from wafer to finished module. This supports ethical sourcing, modern slavery compliance, and ESG procurement requirements. It does not affect electrical performance but is a quality and provenance indicator.
How does this panel compare to the JA Solar 470W monofacial (JAM54D-40)?
Both are 54-cell N-type double-glass panels in the same 1,762 x 1,134 x 30 mm format at 22 kg. The 460 W is the all-black monofacial variant (JAM54D-41 series) with opaque black rear glass. The 470 W (JAM54D-40 series) has a black frame but is not fully all-black. Both use MBB half-cell technology with MC4 connectors and ITS traceability. The 460 W has a 25-year product warranty vs 25 years on the 470 W, but the 460 W has more detailed degradation guarantees (≤0.40%/year, ≥87.4% at 30 years).
Is the all-black design suitable for conservation areas?
The true all-black appearance (black frame, black cells, black rear glass) makes this one of the most visually discreet panels available, which may help with planning considerations. Planning approval is always subject to local authority requirements.
About JA Solar
JA Solar Technology Co., Ltd. is a Bloomberg Tier 1 module manufacturer and one of the world's largest PV module suppliers. The DeepBlue 4.0 series represents JA Solar's latest N-type TOPCon technology platform. JA Solar holds ISO 9001, ISO 14001, and ISO 45001 certifications.
DECO Group supplies JA Solar panels across the DeepBlue 4.0 range in monofacial and bifacial variants alongside compatible inverters, mounting systems, and installation accessories. Visit decogroup.co.uk for the full catalogue.
