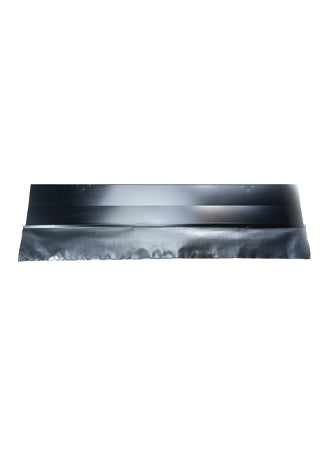

GSE IN ROOF Semi Rigid Bottom Flashing - 1800mm - Black

The GSE Semi Rigid Bottom Flashing is an 1800mm flashing component designed to seal the lower edge of a GSE in-roof PV array where the mounting system meets the roof tiles or gutter line below. Its semi-rigid construction provides a stable, secure fit along the bottom perimeter of the array while retaining enough flexibility to conform to the roof profile, creating a reliable weather barrier at this critical drainage point.

Key Technical Details

• Product: GSE Semi Rigid Bottom Flashing
• Part Code: GSE-ART106044
• Manufacturer Reference: ART106044
• Length: 1800mm
• Weight: 0.57 kg
• Colour: Black
• Construction: Semi-rigid
• Overlap between semi-rigid flashing pieces: 170mm
• Overlap underneath lateral flashing: 200mm
• Mounting category: In-roof integration

Key Features

• Semi-rigid construction balances structural stability with sufficient flexibility to follow the roof surface profile along the bottom edge of the array
• 1800mm length provides coverage across the lower perimeter, with multiple pieces overlapping at 170mm intervals where wider arrays require additional flashing sections
• 200mm overlap underneath the lateral flashing ensures a continuous, layered seal at the junction between the bottom and side perimeters of the array
• Black finish matches all other GSE in-roof system components for a consistent, integrated appearance
• Lightweight at 0.57 kg per piece, keeping handling straightforward during roof-level installation

Installation Notes

• Install along the bottom edge of the GSE in-roof array where the mounting framework transitions to the roof tiles or gutter connection below
• Where multiple bottom flashing pieces are required, maintain a minimum 170mm overlap between adjacent sections to ensure a continuous weathertight seal
• The bottom flashing must extend 200mm underneath the lateral flashing at each side of the array to create a properly layered junction between the bottom and side perimeter seals
• Ensure correct overlap orientation so that water is directed away from the array and down the roof slope without being channelled beneath any flashing joints
• Must be used exclusively with GSE in-roof system components to maintain full system compatibility and manufacturer warranty conditions
• Refer to the GSE in-roof installation documentation for the correct positioning sequence relative to the lateral flashings, frames, and any flexible sealing strips used at the array base
