GSE
GSE - Self Tapping Screw - 6,5MMx45MM + EPDM washer
GSE - Self Tapping Screw - 6,5MMx45MM + EPDM washer
Ready to ship
Next working day delivery available
Order by noon for delivery the next working day
Choose your delivery date at checkout
Couldn't load pickup availability
Share

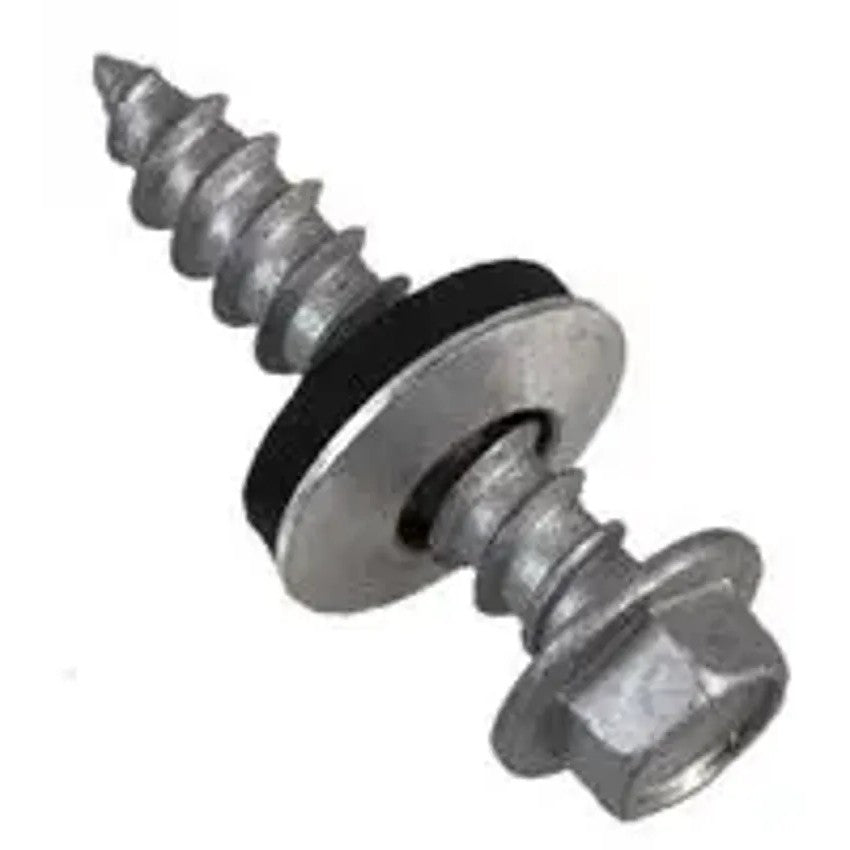

GSE Short 45mm Silver Screw - Self Tapping Screw with EPDM Washer
The GSE ART105988 is a short-version self-tapping screw (45mm instead of standard 60mm) made from A2 stainless steel with integrated EPDM washer. Specifically designed for fixing GSE frames and trays to roofs without counter-battening, this shorter screw prevents the risk of screwing through a single batten into the roof felt - an increasingly common requirement in UK installations.
Key Technical Details
- Product: GSE Short 45mm Silver Screw - Self Tapping Screw with EPDM Washer
- Part No: GSE-ST-SCREW
- Supplier Part No: ART105988
- Size: 6.5mm x 45mm
- Material: A2 Stainless Steel
- Finish: Silver
- Washer: Integrated EPDM washer
- Weight: 0.1 kg
- Application: Fixing GSE frames/trays to roof battens without counter-battening
Key Features
- Short 45mm length specifically designed for installations without counter-battening
- Standard GSE screws are 60mm - this shorter version prevents over-penetration
- A2 stainless steel construction for corrosion resistance and long-term durability
- Self-tapping design eliminates need for pre-drilling
- Integrated EPDM washer provides weatherproof seal
- EPDM rubber washer compresses to create watertight connection
- Prevents risk of screwing through single batten into roof felt
- Increasingly common requirement in UK installations
- Silver finish for aesthetic consistency
Product Description
- Short version of standard GSE screw (45mm vs 60mm length)
- Designed for use when no counter-battening is present on roof
- 6.5mm diameter provides secure fixing into timber battens
- Self-tapping thread cuts into timber without pre-drilling
- Integrated EPDM washer eliminates need for separate washer installation
- EPDM material resists UV degradation and weathering
- A2 stainless steel offers excellent corrosion resistance for roof applications
- Essential component for GSE In-Roof System installations
Installation Requirements
- 6 screws required per solar panel
- Use specifically when fixing GSE frames/trays to roof without counter-battening
- 45mm length prevents penetration through single batten into roof felt
- Self-tapping - no pre-drilling required
- Install with appropriate drill/driver with torque control
- Do not over-tighten - compress EPDM washer sufficiently for seal without crushing
- Ensure screw penetrates into solid timber batten
- EPDM washer must sit flush against mounting surface for proper seal
When to Use This Product
- Required when roof structure has no counter-battening
- Increasingly common in UK roof construction
- Prevents over-penetration that could damage roof felt/membrane
- Use standard 60mm GSE screws when counter-battening is present
- Check roof construction before selecting appropriate screw length
- Essential for maintaining roof weatherproofing integrity
System Compatibility
- Part of GSE In-Roof System for photovoltaic integration
- Compatible with all GSE frames and mounting trays
- Suitable for all roof covering types in GSE system
- Applicable for new build and retrofit installations
- Works with GSE's complete mounting and integration system
- Designed for UK roof construction standards
About GSE Integration
GSE Integration has been a leading player in the construction of integrated photovoltaic solutions for over a decade. GSE Integration prioritises innovation, competitiveness and safety, adapting to the needs of their customers and constantly striving to be the best in their field. The GSE IN-ROOF SYSTEM for photovoltaic integration has captured over 60% market share of residential installations in France and offers an easy and cost-effective solution to the UK market.
About DECO Group
We supply GSE In-Roof System components and mounting solutions to professional installers throughout the UK. Our technical support covers GSE In-Roof installations including proper screw selection for different roof constructions, 45mm short self-tapping screws with integrated EPDM washers for installations without counter-battening (increasingly common in UK), A2 stainless steel corrosion resistance, proper installation torque to compress EPDM washer for weatherproof seal without over-tightening, and frame/tray mounting procedures requiring 6 screws per panel for residential photovoltaic integration on all roof covering types, ensuring secure weatherproof installations that protect roof felt integrity with GSE's innovative mounting system adapted specifically for UK roof construction standards.
