Mid Clamp BLACK 35mm HC / 40mm

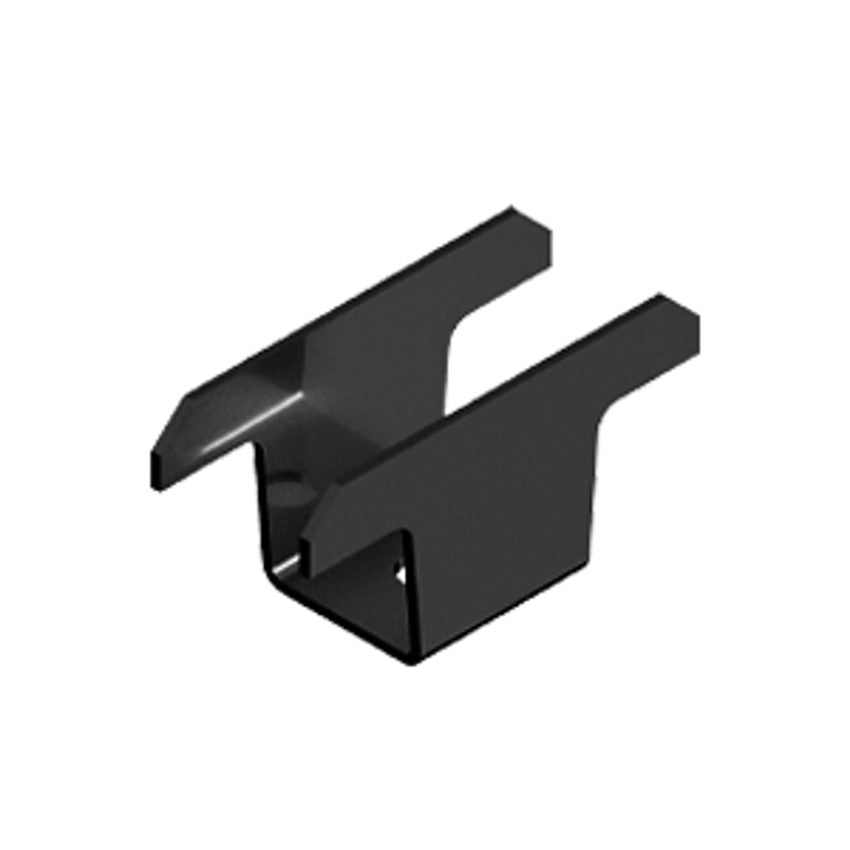

GSE Portrait Mid Clamp - Black

The GSE Portrait Mid Clamp is a high-quality black anodized aluminium clamp designed for securing solar panels onto GSE roof integrated solar PV frames. These durable mid clamps are made from premium materials to withstand harsh weather conditions and provide long-lasting support for solar panel installations, with a sleek black finish that adds a professional touch to in-roof systems. Available in multiple heights to accommodate different panel frame thicknesses.

Key Technical Details

• Product: GSE Portrait Mid Clamp - Black
• Available sizes: H16, H21 (35mm HC / 40mm), H26
• Part No (H21): GSE-CLAMP-DOUBLE-H21-BLA
• Manufacturer Part Code: ART100744
• Material: High-quality anodized aluminium
• Finish: Black anodized
• Weight: 0.09 kg
• Application: Mid clamp for portrait orientation solar panel installations
• Also referred to as: Double clamp

Available Sizes

• H16 - For thinner panel frames
• H21 - For 35mm HC / 40mm panel frames (most common residential panels)
• H26 - For medium thickness panel frames
• Important: Please specify required clamp size using drop-down selection

Key Features

• Black mid clamps for fixing solar panels onto GSE roof integrated solar PV frames
• High-quality anodized aluminium construction for corrosion resistance
• Durable construction built to withstand harsh weather conditions
• Securely holds solar panels in place for long-lasting support
• Sleek black finish adds professional touch to solar panel system
• Both functional and aesthetically pleasing design
• Easy to install and use
• Multiple height options accommodate different panel frame thicknesses
• Black anodized finish matches GSE black mounting components
• Compatible with most solar panel systems

Product Description

• Mid clamps (double clamps) for portrait orientation GSE In-Roof System installations
• Secures adjacent panels between array positions (not at edges)
• Premium anodized aluminium resists corrosion in outdoor conditions
• Black finish provides aesthetic consistency with black frames and components
• Height-specific design ensures proper grip on panel frames
• Double clamp configuration secures two panel edges simultaneously
• Part of GSE's comprehensive mounting component range
• Essential for secure panel retention in in-roof installations
• H21 single clamp in black can be used to complete GSE In-Roof PV mounting system installation

Additional Components Required (Not Included)

• 1 x Screw and washer for clamp fixing (black 6.5mm x 60mm screw ART106051 recommended)
• 1 x EPDM seal for weatherproofing
• These components must be purchased separately
• Essential for complete and secure clamp installation
• Note: Mid clamps do not typically require structural plastic blocks (used for end clamps only)

Installation Notes

• Select correct clamp height (H16, H21, or H26) based on panel frame thickness
• H21 suitable for 35mm HC / 40mm panel frames (most common)
• Position clamp between adjacent panels in portrait orientation
• Clamp grips both panel edges simultaneously (double clamp)
• Install EPDM seal for weatherproofing
• Secure with appropriate screw and washer (6.5mm x 60mm black recommended)
• Easy to install and use for efficient panel securing
• Ensure clamp height matches panel frame thickness for proper grip
• Do not over-tighten - compress to secure panels without deforming frames
• Trust that solar panels will stay in place and perform efficiently

Clamp Height Selection Guide

• H16: For thinner panel frames (check panel specifications)
• H21: For 35mm HC / 40mm panel frames (most common residential panels)
• H26: For medium thickness panel frames (check panel specifications)
• Always verify panel frame thickness before ordering
• Incorrect height may result in inadequate grip or panel damage
• Measure panel frame height to ensure proper clamp selection

Applications

• Portrait orientation solar panel installations
• Mid-string panel securing in GSE In-Roof systems (between panels)
• GSE roof integrated solar PV installations
• Residential in-roof solar projects
• Commercial in-roof solar projects
• All roof covering types compatible with GSE system
• New build and retrofit installations

Product Compatibility

• Compatible with most solar panel systems - various frame thicknesses accommodated
• Part of GSE In-Roof System for photovoltaic integration
• Works with GSE mounting frames and trays in portrait orientation
• Compatible with black GSE screws and mounting components
• Requires separate EPDM seals and fixing screws
• Black finish matches GSE aesthetic mounting solutions

System Compatibility

• Part of GSE In-Roof System for photovoltaic integration
• Essential component for portrait panel securing between adjacent panels
• Suitable for all roof covering types in GSE system
• Applicable for new build and retrofit installations
• Works with GSE's complete mounting and integration system
• Critical for panel retention and system structural integrity

About GSE Integration

GSE Integration has been a leading player in the construction of integrated photovoltaic solutions for over a decade. GSE Integration prioritises innovation, competitiveness and safety, adapting to the needs of their customers and constantly striving to be the best in their field. The GSE IN-ROOF SYSTEM for photovoltaic integration has captured over 60% market share of residential installations in France and offers an easy and cost-effective solution to the UK market.

About DECO Group

We supply GSE In-Roof System components and mounting solutions to professional installers throughout the UK. Our technical support covers GSE In-Roof installations including black portrait mid clamps (double clamps) available in multiple heights (H16, H21 for 35mm HC/40mm frames, H26), high-quality anodized aluminium construction for long-lasting corrosion resistance in harsh weather conditions, sleek black finish for professional aesthetic integration, proper clamp height selection based on panel frame thickness, installation with required ancillaries including black screws with EPDM seals (sold separately), easy-to-install design for secure dual-panel retention between adjacent panels in portrait orientation, and complete panel securing procedures for residential and commercial photovoltaic integration on all roof covering types, ensuring durable installations with GSE's innovative mounting system providing reliable performance through proper mid-string panel clamping that holds panels securely in place for efficient long-term operation in portrait configurations.
