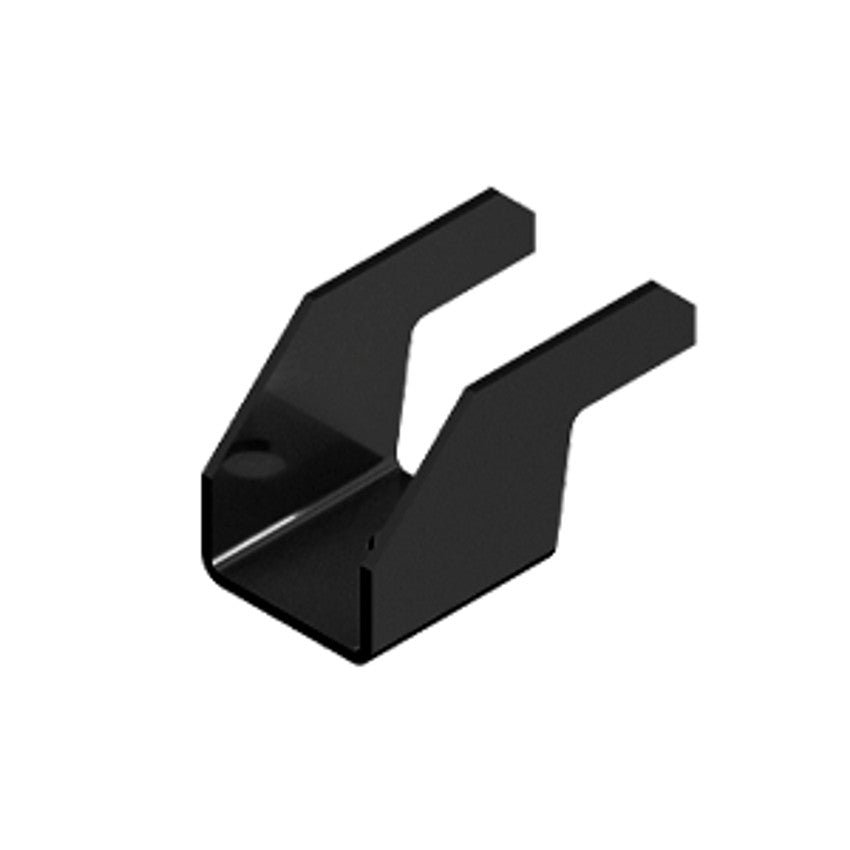

GSE IN ROOF Single End Clamp V2023 H16 - Steel - Black

The GSE IN ROOF Single End Clamp V2023 H16 is a steel end clamp engineered for securing photovoltaic modules within the GSE in-roof integration system. Supplied in a black finish with a pre-attached EPDM foam seal, this clamp delivers secure panel retention and effective weather resistance as part of a fully integrated roof-mounted PV array.

Key Technical Details

• Product: GSE IN ROOF Single End Clamp V2023 - H16
• Manufacturer Part Code: GSE-CLAMP-SINGLE-H16-V2023-BLA
• Manufacturer Reference: ART105897
• Material: Steel
• Colour: Black
• Seal type: EPDM foam (pre-attached)
• Weight: 0.023 kg
• Mounting category: In-roof integration
• Clamp type: Single end clamp (also referred to as simple clamp)

Key Features

• Designed to fasten PV modules to GSE in-roof mounting frames at the outer edge of a module row
• Pre-attached EPDM foam seal provides a weathertight interface between the clamp body and the module frame
• Steel construction delivers consistent mechanical retention under varying environmental and load conditions
• Black finish maintains a uniform visual profile across all GSE in-roof system components
• Available in H16 and H21 sizes to accommodate different module frame thicknesses

Installation Notes

• This clamp functions as an end (single) clamp within the GSE in-roof system, securing the outermost edge of a PV module in the array
• Select the correct clamp height variant (H16 or H21) to match the frame depth of the PV module being installed
• Must be used exclusively with GSE in-roof mounting components to ensure correct system compatibility and warranty compliance
• Refer to the GSE in-roof installation manual for precise positioning, torque settings, and fixing instructions

About GSE

GSE is a mounting and integration systems brand developed by SVH Energie, specialising in in-roof photovoltaic solutions. The GSE IN ROOF system has established significant market presence, capturing over 60% of the in-roof PV installation market in France before expanding into the UK. Their product range centres on practical, cost-effective integration systems engineered to streamline PV installation within the roof plane.

About DECO Group

We are a UK-based solar wholesaler and distributor supplying GSE in-roof mounting hardware and associated balance-of-system components to professional installers. Our trade supply focuses on system-level compatibility and dependable technical support, helping installers source the correct fixings, clamps, and integration accessories for GSE roof-integrated PV projects.
