End Clamp BLACK 35mm HC / 40mm

GSE Portrait End Clamps - Black

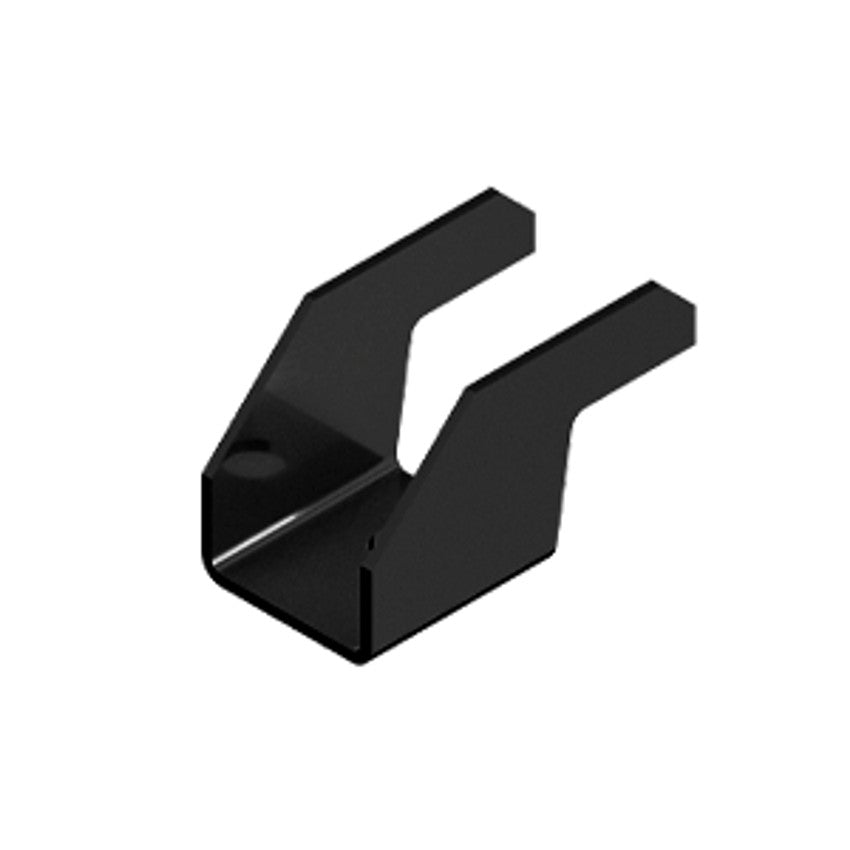

The GSE Portrait End Clamps are high-quality black anodized aluminium clamps designed for securing solar panels onto GSE roof integrated solar PV frames. These durable end clamps are made from premium materials to ensure long-lasting performance and reliability, with a sleek black finish that adds a modern touch to in-roof solar panel installations. Available in multiple heights to accommodate different panel frame thicknesses.

Key Technical Details

• Product: GSE Portrait End Clamps - Black
• Available sizes: H21 (35mm HC / 40mm), H26, H31
• Part No (H21): GSE-CLAMP-SINGLE-H21-BLA
• Supplier Part No (H21): ART100495
• Material: Premium quality anodized aluminium
• Finish: Black anodized
• Weight: 0.028 kg
• Application: End clamp for portrait orientation solar panel installations
• Also referred to as: Simple clamp / Single clamp

Available Sizes

• H21 - For 35mm HC / 40mm panel frames (Part No: GSE-CLAMP-SINGLE-H21-BLA, Supplier Part No: ART100495)
• H26 - For medium thickness panel frames
• H31 - For thicker panel frames
• 50mm clamps - Available on request for extra-thick panel frames
• Important: Please specify required clamp size using drop-down selection

Key Features

• Black end clamps for fixing solar panels onto GSE roof integrated solar PV frames
• Premium quality anodized aluminium construction for corrosion resistance
• Durable construction for long-lasting performance and reliability
• Sleek black finish adds modern touch to solar panel installations
• Easy to install design for quick panel securing
• Ensures solar panels stay securely in place, even in harsh weather conditions
• Lightweight at 0.028 kg for easy handling
• Multiple height options accommodate different panel frame thicknesses
• Black anodized finish matches GSE black mounting components

Product Description

• End clamps for portrait orientation GSE In-Roof System installations
• Secures panels at array edges where only single clamp required
• Premium anodized aluminium resists corrosion in outdoor conditions
• Black finish provides aesthetic consistency with black frames and components
• Height-specific design ensures proper grip on panel frame
• Simple/single clamp configuration for end-of-string applications
• Part of GSE's comprehensive mounting component range
• Essential for secure panel retention in in-roof installations

Additional Components Required (Not Included)

• 1 x Screw and washer for clamp fixing (black 6.5mm x 60mm screw ART106051 recommended)
• 1 x EPDM seal for weatherproofing
• 1 x Structural plastic block for reinforcement
• These components must be purchased separately
• Essential for complete and secure clamp installation

Installation Notes

• Select correct clamp height (H21, H26, H31, or 50mm) based on panel frame thickness
• H21 suitable for 35mm HC / 40mm panel frames
• Position clamp at end of panel string in portrait orientation
• Place structural plastic block underneath mounting point
• Install EPDM seal for weatherproofing
• Secure with appropriate screw and washer (6.5mm x 60mm black recommended)
• Easy to install - provides peace of mind for investment protection
• Ensure clamp height matches panel frame thickness for proper grip
• Do not over-tighten - compress to secure panel without deforming frame

Clamp Height Selection Guide

• H21: For 35mm HC / 40mm panel frames (most common residential panels)
• H26: For medium thickness panel frames (check panel specifications)
• H31: For thicker panel frames (check panel specifications)
• 50mm: Available on request for extra-thick frames or special applications
• Always verify panel frame thickness before ordering
• Incorrect height may result in inadequate grip or panel damage

Applications

• Portrait orientation solar panel installations
• End-of-string panel securing in GSE In-Roof systems
• GSE roof integrated solar PV installations
• Residential in-roof solar projects
• Commercial in-roof solar projects
• All roof covering types compatible with GSE system
• New build and retrofit installations

Product Compatibility

• Compatible with solar panels - various frame thicknesses accommodated
• Part of GSE In-Roof System for photovoltaic integration
• Works with GSE mounting frames and trays in portrait orientation
• Compatible with black GSE screws and mounting components
• Requires separate structural plastic blocks, EPDM seals, and fixing screws
• Black finish matches GSE aesthetic mounting solutions

System Compatibility

• Part of GSE In-Roof System for photovoltaic integration
• Essential component for portrait panel securing
• Suitable for all roof covering types in GSE system
• Applicable for new build and retrofit installations
• Works with GSE's complete mounting and integration system
• Critical for panel retention and system structural integrity

About GSE Integration

GSE Integration has been a leading player in the construction of integrated photovoltaic solutions for over a decade. GSE Integration prioritises innovation, competitiveness and safety, adapting to the needs of their customers and constantly striving to be the best in their field. The GSE IN-ROOF SYSTEM for photovoltaic integration has captured over 60% market share of residential installations in France and offers an easy and cost-effective solution to the UK market.
