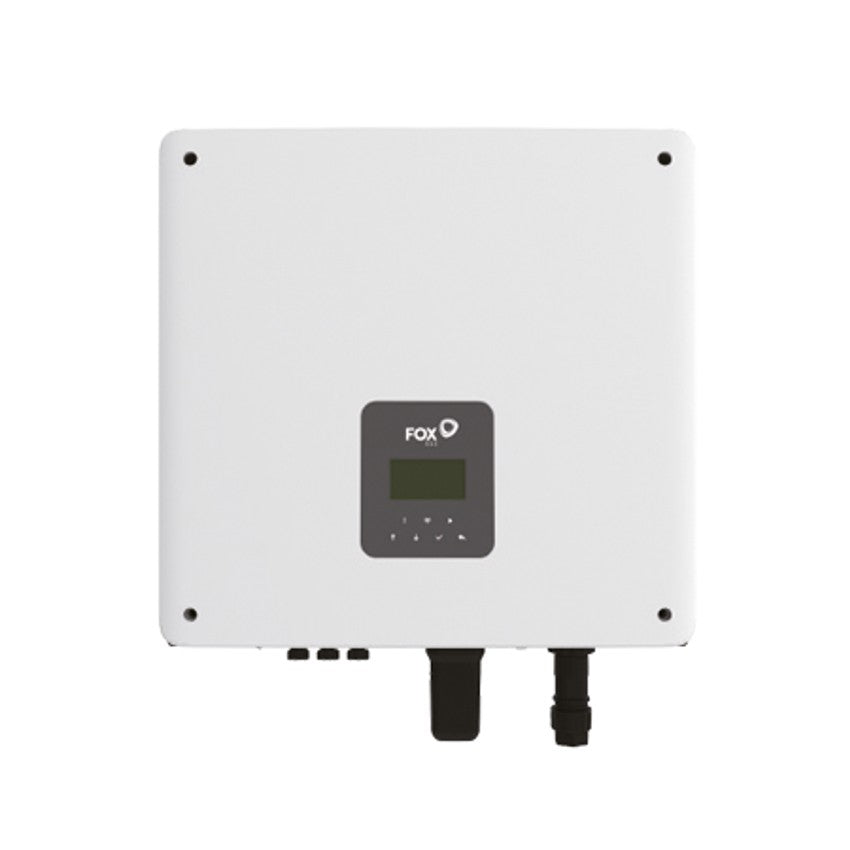

Fox H1 3.0kW Hybrid Inverter with EPS 1PH Gen 2
The Fox H1 3.0kW Gen 2 hybrid inverter is a single phase system designed to manage PV generation, battery storage, and EPS functionality within a compact enclosure. It is intended for professional installations requiring efficient energy conversion, dual MPPT tracking, and integrated monitoring for indoor or outdoor technical environments.
Key Technical Details
- Part Number: FE-H1-3.0-G2
- Rated Power: 3,000 W
- Maximum AC Power (5 Minutes): 3,000 W
- Surge AC Power (1 Second): 3,001 W
- Maximum DC Power: 6,000 W
- MPPT Quantity: 2
- Minimum MPPT Voltage: 80 V
- Maximum MPPT Voltage: 550 V
- DC Startup Voltage: 75 V
- DC Shutdown Voltage: 75 V
- Maximum Input Voltage: 600 V
- Maximum DC Current: 32 A
- Maximum DC Inputs: 2
- Euro Efficiency: 97 %
- Protection Level: IP65
- Weight: 22 kg
- Transformer: none
- Warranty: 5 years
System Capabilities
The inverter supports hybrid operation with battery integration and EPS output, allowing continued supply during grid interruptions when correctly configured. Dual MPPT inputs support flexible PV array design to optimise generation across varying roof aspects.
Monitoring and Control
Remote monitoring is supported via a web portal or smartphone interface, enabling system performance visibility and operational oversight. Integrated communication hardware supports direct connection without additional external devices.
Included Components
CT clamps and a WiFi communication stick are supplied within the box. Where an additional generation source is present, a second CT is required. A meter is required when the distance between the inverter and the incoming power connection point exceeds 30m.
Installation Notes
The enclosure is rated to IP65 and is suitable for outdoor installation. The system is designed for straightforward commissioning and allows future battery capacity expansion using compatible storage modules.
