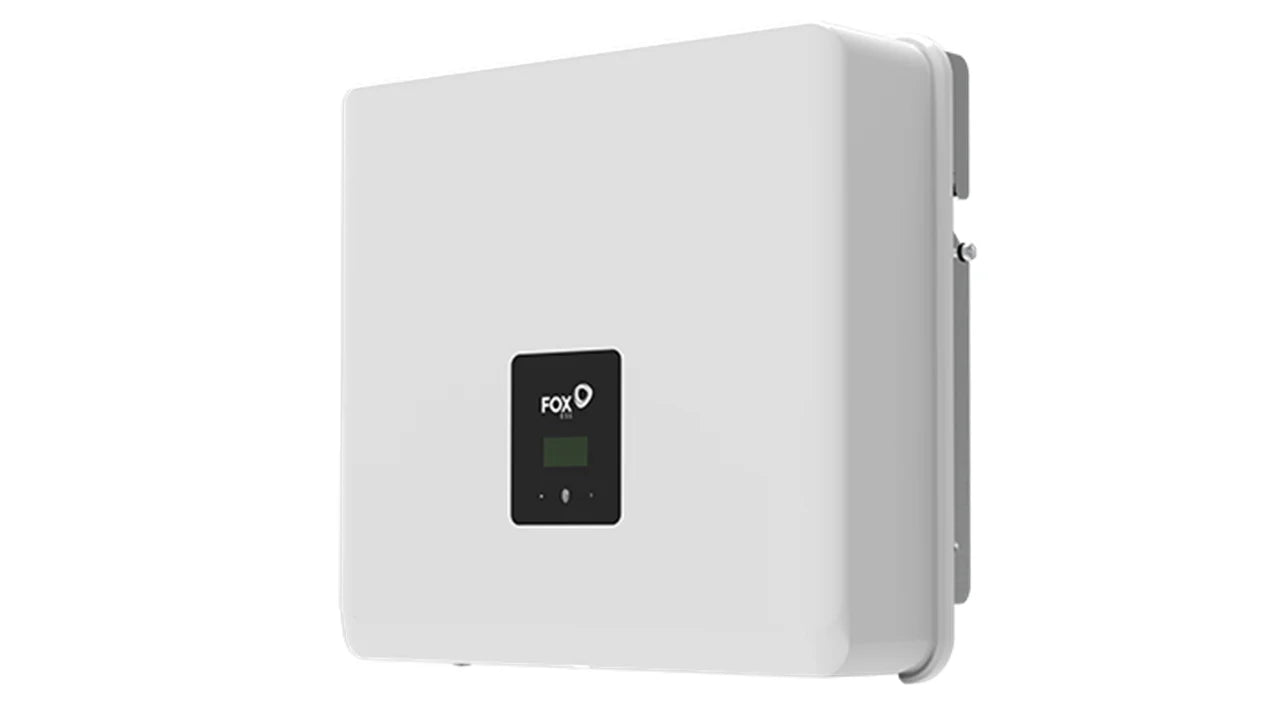

Fox ESS F3000 3kW F Series G3 Single Phase Dual MPPT Grid-Tie PV Inverter
The Fox ESS F3000 G3 (part number FE-F3000-G3) is a 3.0 kW single-phase, dual-MPPT grid-tie PV inverter from the Fox ESS F Series range. With a maximum efficiency of 97.60%, a Euro efficiency of 96.80%, and an MPPT tracking efficiency of 99.80%, the F3000 delivers high conversion performance across two independent MPPT trackers, each accepting up to 20 A input. It features a wide MPPT operating range of 60 V to 550 V, a maximum input voltage of 600 V, and a total maximum DC input of 6,000 W (4,000 W per MPPT). The F3000 G3 is IP65 rated for outdoor installation, weighs 9.5 kg or less, and measures 358 x 335 x 155 mm. It is battery ready for future upgrade when paired with a Fox ESS charge controller. Available from DECO Group, a UK-based solar trade wholesaler.
Key Technical Details
- Part number: FE-F3000-G3
- Supplier part number: F3000 G3
- Model: F3000
- Inverter type: Single-phase grid-tie, non-isolated topology
- Rated output power: 3,000 W
- Maximum output apparent power: 3,300 VA
- Nominal AC current: 13.6 A
- Maximum AC current: 15.0 A
- Inrush current: 7.9 A @ 50 µs
- Maximum output overcurrent protection: 75 A
- Rated grid voltage: 220/230/240 V
- Rated grid frequency: 50/60 Hz
- Displacement power factor: 1 (adjustable from 0.8 leading to 0.8 lagging)
- Total harmonic distortion (THDi): less than 3% at rated output
- Maximum PV input power: 6,000 W (maximum 4,000 W per MPPT)
- Maximum input voltage: 600 V
- MPPT voltage range: 60 V to 550 V
- MPPT voltage range (full load): 90 V to 550 V
- Nominal DC operating voltage: 360 V
- Start-up voltage (LCD): 60 V
- Start-up voltage (operation): 80 V
- Maximum DC input current: 20 A / 20 A (per MPPT)
- Maximum short-circuit current: 26 A / 26 A (per MPPT)
- Maximum inverter backfeed current to array: 0 mA
- MPPT quantity: 2
- Strings per MPPT: 1 + 1
- MPPT efficiency: 99.80%
- Maximum efficiency: 97.60%
- Euro efficiency: 96.80%
- Connector: MC4 (2 included)
- DC switch: Optional
- AFCI: Optional
- Night mode: Optional
- Surge protection: Type II (DC) and Type II (AC)
- Communication: Meter, CT, RS485
- Monitoring: Internal WiFi; optional external WiFi module, 4G module, or LAN module
- Display: LCD, LED, app, website
- Cooling: Natural convection
- Noise emission (typical): less than 30 dB at 1 m
- Protective class: I
- Ingress protection: IP65
- Overvoltage category: III (AC side), II (PV side)
- Pollution degree: II
- Operating temperature range: -25°C to +60°C (derating at +45°C)
- Storage temperature range: -40°C to +70°C
- Humidity: 0% to 100% (no condensation)
- Maximum operating altitude: 3,000 m
- Standby consumption: less than 1 W (without night mode); less than 3 W (with night mode)
- Dimensions: 358 x 335 x 155 mm (W x H x D)
- Weight: 9.5 kg or less
Key Features
- Dual independent MPPT trackers allow two separate string orientations or roof faces, improving overall system yield and design flexibility
- 97.60% maximum efficiency with 99.80% MPPT tracking efficiency
- Wide MPPT range of 60 V to 550 V with low operational start-up voltage of 80 V
- Maximum 6,000 W DC input (4,000 W per MPPT) giving a 2:1 DC/AC ratio
- Built-in Type II surge protection on both DC and AC sides
- Internal WiFi for monitoring via FoxCloud V2.0; optional external 4G or LAN modules
- IP65 rated for outdoor installation
- Natural convection cooling, less than 30 dB at 1 m
- Battery ready for future storage upgrade when paired with a Fox ESS charge controller
- Compact at 358 x 335 x 155 mm and manageable at 9.5 kg or less
System Compatibility
- Part of the Fox ESS F Series dual-MPPT range covering 3.0 kW to 6.0 kW models
- MC4 DC connectors (2 pairs included)
- Battery ready when paired with a Fox ESS charge controller for AC-coupled storage
- Internal WiFi included; external WiFi, 4G, and LAN monitoring modules available as options
- Optional DC switch and AFCI available
- The inverter will report an error if PV voltage exceeds 585 V
Protection Features
- Insulation monitoring
- Residual current monitoring
- DC reverse polarity protection
- Anti-islanding protection
- AC short-circuit protection
- AC overcurrent protection
- AC overvoltage protection
- Temperature protection
- Surge protection: Type II (DC) and Type II (AC)
Certifications and Compliance
- IEC 62109
- G100
- AS4777
- CEI 21
- IEC 61727
Warranty
- Standard warranty: 5 years
Common Questions
Click a question below to reveal the answer.
What is the advantage of dual MPPT on the Fox ESS F3000 G3?
The two independent MPPT trackers allow separate string orientations, roof faces, or shading zones to operate independently. This improves total system yield compared to a single-MPPT inverter on multi-aspect roofs.
Can the Fox ESS F3000 G3 be used with battery storage?
The F3000 G3 is battery ready. It can be upgraded to include storage when paired with a Fox ESS charge controller.
What is the maximum DC input and DC/AC ratio on the Fox ESS F3000 G3?
The F3000 G3 accepts up to 6,000 W total DC input (maximum 4,000 W per MPPT) against a 3,000 W rated AC output, giving a 2:1 DC/AC ratio.
What are the dimensions and weight of the Fox ESS F3000 G3?
The F3000 G3 measures 358 x 335 x 155 mm (W x H x D) and weighs 9.5 kg or less. It is a single-person lift and install.
Does the Fox ESS F3000 G3 include WiFi monitoring?
Yes. The F3000 G3 includes an internal WiFi module for monitoring via the FoxCloud V2.0 platform. External 4G and LAN monitoring modules are also available as options.
