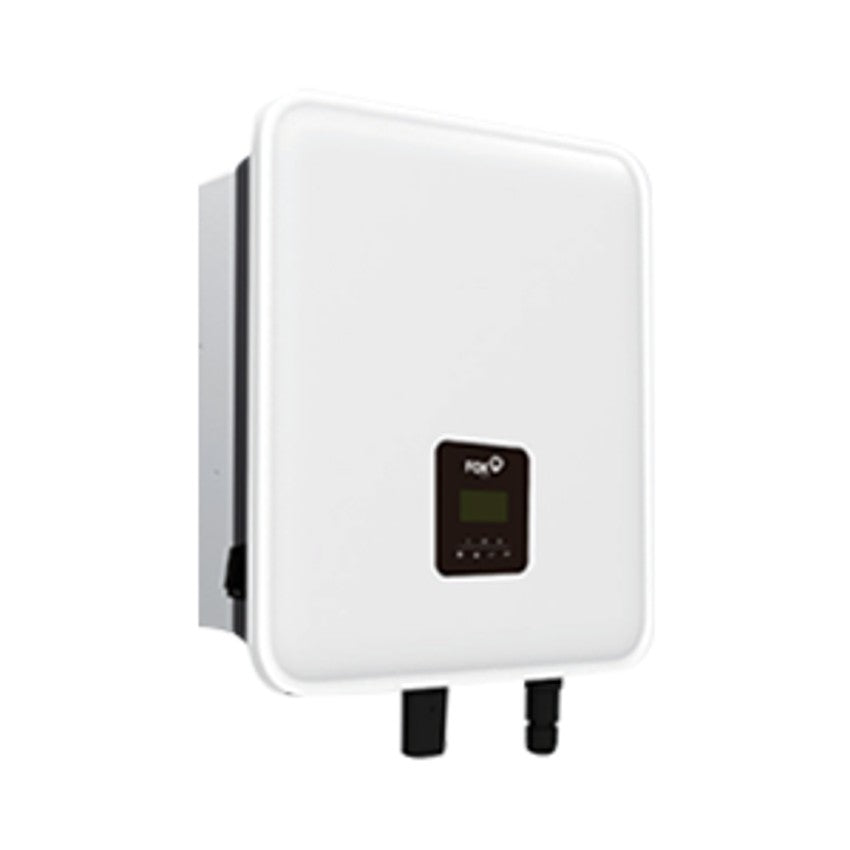

Fox ESS K Series KH8 8.0kW Single Phase Hybrid Inverter
The Fox ESS KH8 is a single phase hybrid inverter designed for use with high voltage battery systems. It combines PV generation management, battery integration, and grid interaction within a compact IP65 enclosure, supporting efficient operation and flexible system design for professional solar installations.
Key Technical Details
- Part Number: FE-KH1-8.0
- Model: KH8
- Rated Power: 8,000 W
- Maximum AC Power (5 Minutes): 8,000 W
- Surge AC Power (1 Second): 8,800 W
- Maximum DC Power: 12,000 W
- MPPT Quantity: 3
- Minimum MPPT Voltage: 80 V
- Maximum MPPT Voltage: 500 V
- DC Startup Voltage: 75 V
- DC Shutdown Voltage: 75 V
- Maximum Input Voltage: 600 V
- Maximum DC Current: 48 A
- Maximum DC Inputs: 3
- Euro Efficiency: 97.4 %
- Protection Level: IP65
- Weight: 29 kg
- Transformer: none
- Has Integrated DC Switch: Yes
- Warranty: 5 years
System Capabilities
The KH8 operates as a full hybrid inverter using high voltage batteries to support efficient charge and discharge operation. Triple MPPT inputs allow flexible PV array configuration and optimisation across multiple orientations.
Monitoring and Control
Remote monitoring and control are supported via a web portal or smartphone interface, enabling system performance visibility and remote diagnostics. Integrated communication hardware supports direct connectivity without additional external devices.
Included Components
CT clamps and a meter are supplied within the box to support system monitoring and export management.
Installation Notes
The enclosure is rated to IP65 and is suitable for outdoor installation. The inverter supports battery capacity expansion using compatible high voltage storage systems and must be installed in accordance with applicable wiring regulations and technical standards.
