Key Information
- Battery heating and fire suppression
- Scalable to 20.8 kWh
- 90% Depth of Discharge
- Floor or Wall Mounting
- Compact & Easy Installation
- IP65 Protection Level
- High Voltage and High Efficiency
- 10-year warranty upon registration
Fox ESS
Fox ESS EP5 5.18kWh Battery with Heating Element
Fox ESS EP5 5.18kWh Battery with Heating Element
Share

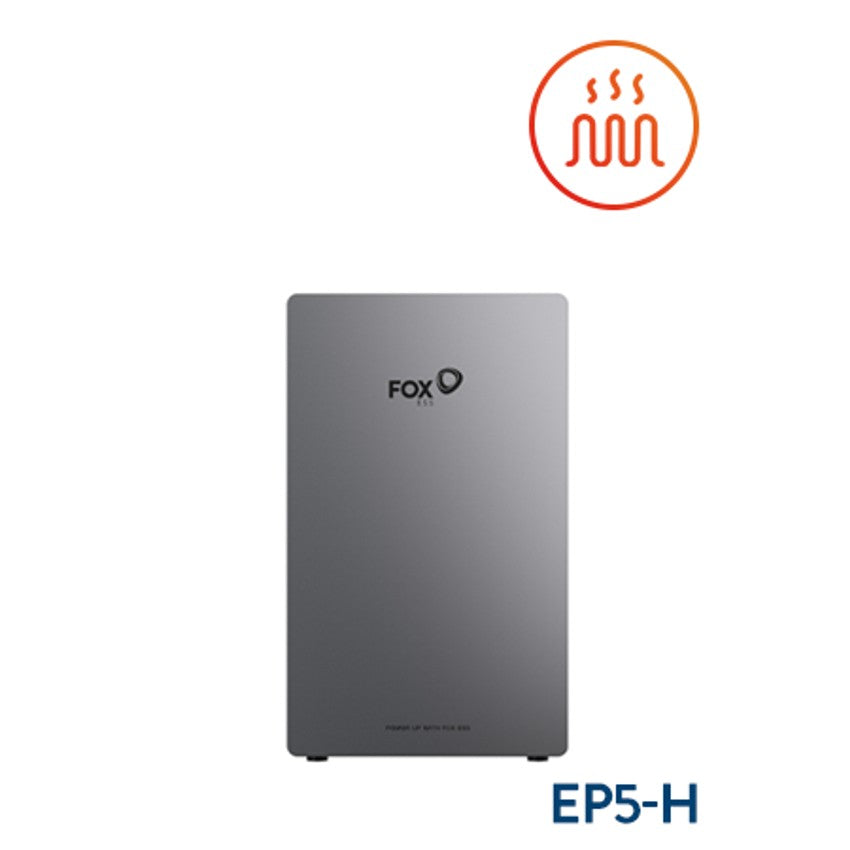

Fox ESS EP5-H 5.18kWh High Voltage Battery with Heating Element
The Fox ESS EP5-H is a high voltage lithium ion battery module designed for scalable energy storage systems. It is engineered to integrate into modular configurations, allowing multiple units to operate in parallel when used with the FE-JUNBOX-HV, supporting system expansion up to 20.8kWh. The integrated heating element and protection features make it suitable for demanding installation environments.
Key Technical Details
- Part Number: FE-HV-EP5-H
- Battery Type: Lithium Ion
- Nominal Energy: 5184 Wh
- Voltage: 192 V
- Depth of discharge: 90.00 %
- Continuous Discharge Rate (Normal Use): 2592 W
- Maximum Discharge Rate (5 Minutes): 5184 W
- Surge Discharge Rate (15 Seconds): 12480 W
- Maximum Charge Rate (5 Minutes): 5184 W
- Weight: 51 kg
- Protection Level: IP65
System Capabilities
The EP5-H supports parallel battery configurations to increase usable storage capacity, with system scalability up to 20.8kWh when additional modules are installed via the FE-JUNBOX-HV. Its high voltage architecture supports efficient energy transfer within compatible storage systems.
Key Features
This battery module includes an integrated heating element and fire suppression functionality to support stable operation across a wider range of conditions. The design prioritises high efficiency and consistent performance within modular storage arrays.
Installation Notes
The EP5-H is designed for flexible installation and can be mounted either on the floor or wall. Its compact form factor and enclosure rated to IP65 support deployment in both indoor and outdoor technical environments.
