Enphase IQ Battery 5P and 10 x IQ7 Plus Microinverter AC-Coupled Storage Package
The Enphase IQ Battery and IQ7 Plus Microinverter package (part number EN-IQ-BATT-IQ7PACK-10) is a complete AC-coupled solar storage system containing all Enphase components required to connect 10 solar panels in portrait layout. This self-consumption package pairs the Enphase IQ Battery 5P (EN-IQ-BATTERY-5P), a 5.0 kWh lithium iron phosphate (LFP) battery with six embedded grid-forming microinverters, with 10 x Enphase IQ7 Plus microinverters (EN-IQ7PLUS-72-M-INT) rated at 290W each and optimised for 60-cell and 72-cell modules. The package also includes an Enphase Envoy-S Metered Multiphase gateway (ENV-S-EM-230) with two CTs, 10 x Enphase Q Cables at 1.3m portrait spacing, an Enphase Communications Kit 2 INT, and one Q-Cable branch terminator. Available from DECO Group, a UK-based solar wholesaler supplying professional installers across the trade market.
Key Technical Details
- Package part number: EN-IQ-BATT-IQ7PACK-10
- Total package weight: 104.671 kg
- System type: AC-coupled storage with microinverters
- Panel configuration: 10 panels in portrait layout
IQ Battery 5P Specifications (EN-IQ-BATTERY-5P)
- Usable energy capacity: 5.0 kWh
- Battery chemistry: Lithium iron phosphate (LFP)
- Depth of discharge: 95.00%
- Nominal voltage: 76 V
- Continuous power output: 3.84 kW
- Continuous output power rating: 3.2 kVA
- Maximum discharge rate (5 minutes): 3200 W
- Maximum charge rate (5 minutes): 3200 W
- Surge discharge rate (15 seconds): 7000 W
- Peak output power: 7.68 kW for 3 seconds; 6.14 kW for 10 seconds
- DC round-trip efficiency: 96%
- AC round-trip efficiency: 90%
- Six embedded IQ8D-BAT grid-forming microinverters
- Dimensions: 550 mm (W) x 980 mm (H) x 188 mm (D)
- Weight: 78.9 kg
- Maximum 4 battery units per system
- Mounting: Wall-mount bracket included; optional floor-mount via IQ Battery 5P Pedestal Mount (sold separately, one pedestal per battery)
- Certified for UK
IQ7 Plus Microinverter Specifications (EN-IQ7PLUS-72-M-INT)
- Rated output power: 290 W
- Maximum AC power (5 minutes): 295 W
- Surge AC power (1 second): 290 W
- Maximum DC input power: 440 W
- Maximum DC input current: 14 A
- Maximum input voltage: 60 V
- MPPT voltage range: 16 V to 60 V
- DC startup voltage: 22 V
- DC shutdown voltage: 16 V
- MPPT quantity: 1
- Maximum DC inputs: 1
- Euro efficiency: 96.5%
- Connector: MC4 (integrated, 1 included per unit)
- Transformer: High-frequency
- Phase: Single phase (230 & 400VAC)
- Enclosure: Class II double-insulated
- Weight: 1.05 kg per unit
- No integrated DC switch
- Compatible with 60-cell and 72-cell solar modules
Envoy-S Metered Gateway Specifications (ENV-S-EM-230)
- Single-phase and multi-phase metering capability
- Includes 2 x split-core current transformers (CT-100-SPLIT-ROW) for 16mm tails
- CT clamp cable length: approximately 3.8 m
- Networking: Wi-Fi, Ethernet, or mobile
- Mounting: DIN rail
- Can be installed indoors or in an outdoor enclosure
- Bidirectional communications for remote upgrades
- Weight: 0.79 kg
- For three-phase installations, one additional CT is required (sold separately)
Communications Kit 2 INT Specifications (EN-IQ-COMMS-KIT)
- Enables wired control communication between IQ Gateway Metered and IQ Battery 5P
- Required for IQ Battery 5P operation in grid-tied mode
- Supply voltage: 5 V
- Current: 500 mA
- Operating temperature range: -40°C to 45°C
- Dimensions: 69 mm (L) x 152 mm (W) x 25 mm (H)
- Weight: 0.151 kg
Q Cable Specifications (EN-Q-25-10-1)
- Single-phase AC cable, 1.3 m length, portrait orientation
- One required per microinverter
- Weight: 0.22 kg per connector
- Supplier part number: Q-25-10-240
Q-Cable Branch Terminator (EN-Q-TERM-R)
- Round AC branch terminator cap for waterproofing unused Q Cable ends
- One required per branch circuit
- Weight: 0.03 kg
Key Features
- Complete AC-coupled storage package: all Enphase components for a 10-panel portrait installation in a single order
- Lithium iron phosphate (LFP) battery chemistry provides stable, safe, long-life energy storage
- Grid-forming capability enables backup operation when installed with IQ System Controller 3/3G
- Passive cooling with no moving parts or fans in the IQ Battery 5P
- Field-replaceable battery components reduce long-term service costs
- Remote software and firmware upgrades via the Envoy-S gateway
- Supports backup, self-consumption, and time of use (TOU) operating modes
- IQ7 Plus microinverters undergo over a million hours of power-on testing
- Integrated production metering and consumption monitoring through the Envoy-S Metered
- Wired communication between gateway and battery via the Communications Kit 2 for consistent connectivity
System Compatibility
- IQ7 Plus microinverters are optimised for 60-cell and 72-cell solar modules with MC4 connectors
- The Envoy-S Metered gateway integrates with the Enphase Enlighten monitoring and analysis platform
- The IQ Battery 5P integrates with the Enphase Energy System and is supported by the Enphase App for remote monitoring
- Backup capability requires the addition of an IQ System Controller 3/3G (not included in this package)
- The Envoy-S Metered is battery-ready, meaning all sensing hardware is in place for future battery expansion (maximum 4 x IQ Battery 5P units per system)
- For three-phase metering, one additional split-core CT is required beyond the two included
- G98/G99 compliance: every Enphase microinverter system requires an Envoy device for commissioning, and the Envoy must remain permanently on site
Installation Notes
- Installers must hold current Enphase certification to commission this system. Uncertified installers will be unable to complete commissioning.
- The IQ Battery 5P is designed for wall mounting. A wall-mount bracket is included. Floor mounting is available using the IQ Battery 5P Pedestal Mount (one pedestal per battery, sold separately).
- At 78.9 kg, the IQ Battery 5P requires a two-person lift. Lifting handles are not included in this package and must be purchased separately (part code EN-IQ-BATTERY-HANDLES).
- The Q Cables in this package are 1.3 m portrait spacing. One Q Cable is required per microinverter. Additional Q Cable can be used to extend between arrays or roof sections.
- Each Q Cable branch circuit must be terminated with the included branch terminator cap (EN-Q-TERM-R) on every unused trunk end.
- The included CTs (CT-100-SPLIT-ROW) are sized for 16mm meter tails. For 25mm tails, a different CT (EN-CT-100-SPLIT, 200A split-core) is required.
- The IQ Gateway Metered can be installed indoors or in a suitable outdoor enclosure, mounted on DIN rail.

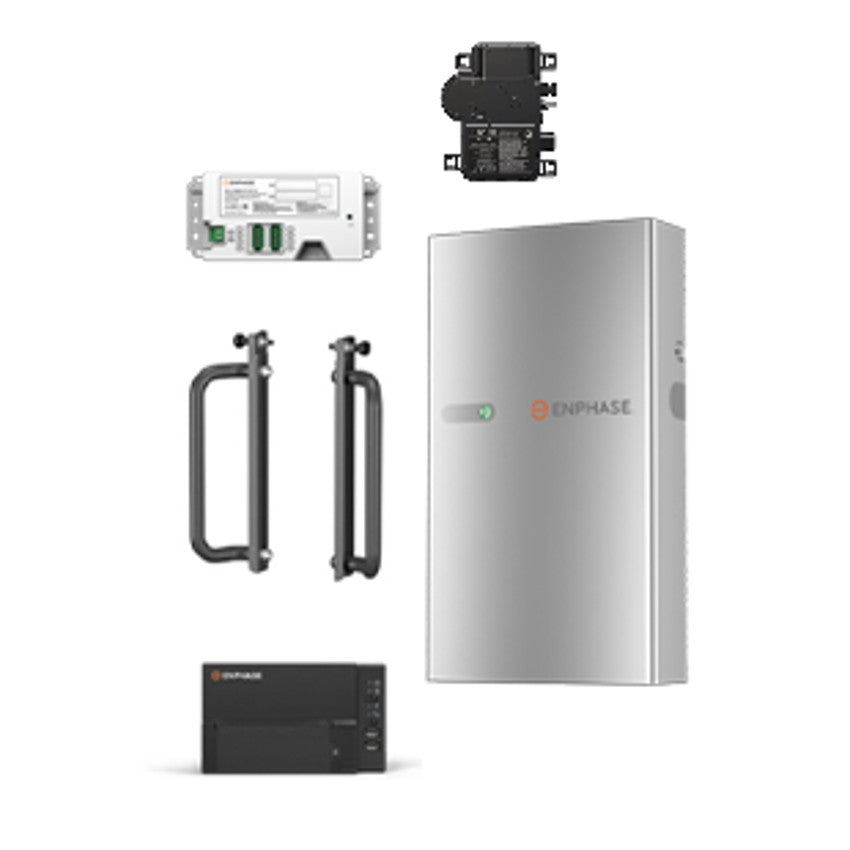

Included Components
- 1 x Enphase IQ Battery 5P (EN-IQ-BATTERY-5P) with wall-mount bracket
- 10 x Enphase IQ7 Plus Microinverter 60/72-cell MC4 integrated (EN-IQ7PLUS-72-M-INT), each with 1 x DC module connector
- 1 x Enphase Envoy-S Metered Multiphase gateway (ENV-S-EM-230) with 2 x split-core CTs for 16mm tails
- 10 x Enphase Q Cable 1ph 1.3m portrait (EN-Q-25-10-1)
- 1 x Enphase Communications Kit 2 INT (EN-IQ-COMMS-KIT), including USB cable and Control Headers
- 1 x Q-Cable round AC Branch Terminator (EN-Q-TERM-R)
Warranty
- IQ Battery 5P: 15-year limited warranty, up to 6,000 cycles
- IQ7 Plus Microinverters: 25 years
- Envoy-S Metered Gateway: 5 years
- Communications Kit 2 INT: 5 years
Common Questions
- What solar panels are compatible with the Enphase IQ7 Plus microinverters in this package?
- The IQ7 Plus microinverters are optimised for 60-cell and 72-cell solar modules with MC4 connectors. Maximum DC input power per microinverter is 440 W, with a maximum input voltage of 60 V and MPPT range of 16 V to 60 V.
- What is the battery chemistry and capacity of the Enphase IQ Battery 5P?
- The IQ Battery 5P uses lithium iron phosphate (LFP) chemistry with a usable energy capacity of 5.0 kWh and a depth of discharge of 95.00%. It achieves a DC round-trip efficiency of 96% and an AC round-trip efficiency of 90%.
- How many Enphase IQ Battery 5P units can be installed in a single system?
- A maximum of 4 x IQ Battery 5P units can be installed per system, for a total of up to 20.0 kWh of usable storage capacity.
- What are the dimensions and weight of the Enphase IQ Battery 5P?
- The IQ Battery 5P measures 550 mm (W) x 980 mm (H) x 188 mm (D) and weighs 78.9 kg. A two-person lift is recommended. Lifting handles are available separately (EN-IQ-BATTERY-HANDLES).
- Do I need Enphase certification to install this package?
- Yes. Installers must hold current Enphase certification. Uncertified installers will be unable to complete the commissioning process.
- What is the operating temperature range of the Communications Kit 2 INT?
- The Enphase Communications Kit 2 INT has an optimal ambient temperature range of -40°C to 45°C.
