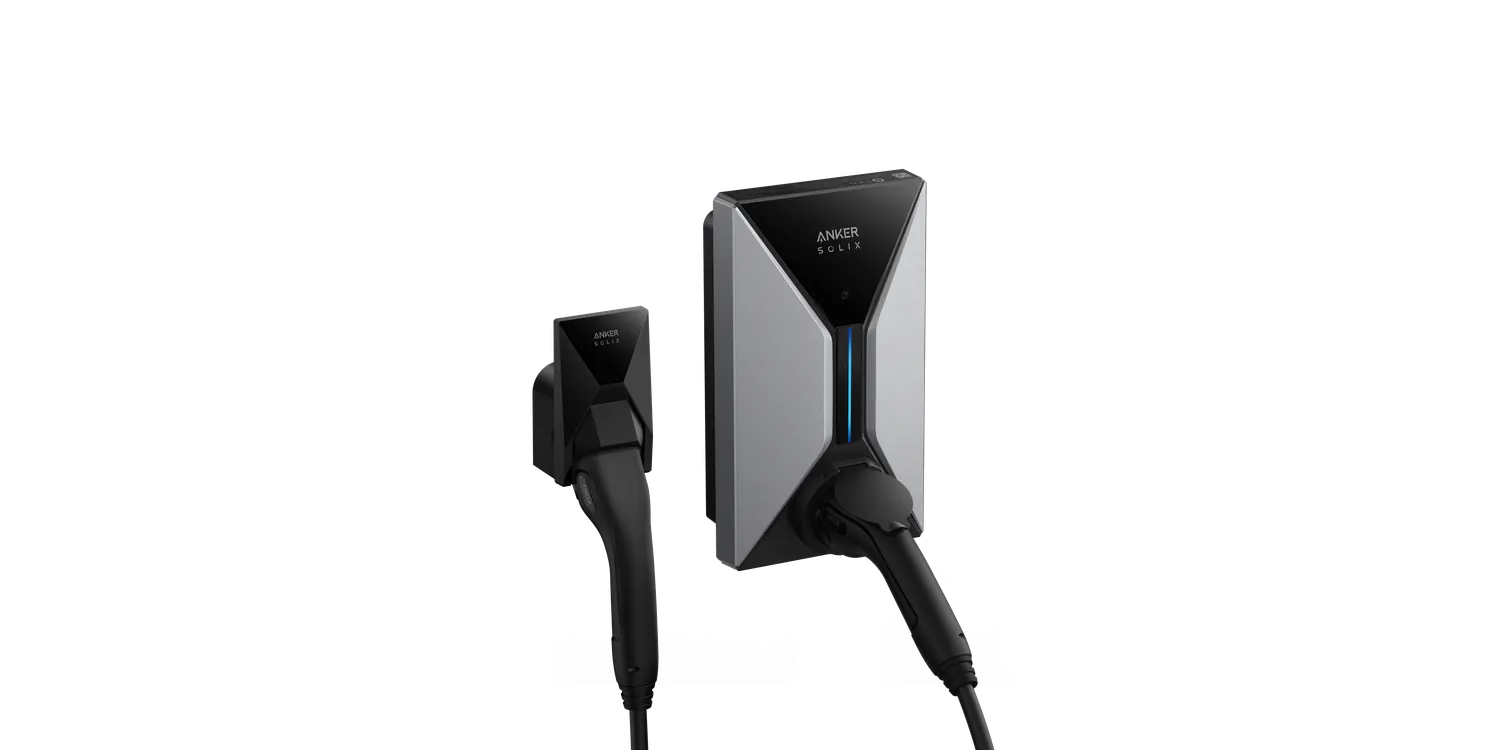

Key Information

Effortless Charging & Big Savings: Users can save up to 58% annually by leveraging smart charging and dynamic pricing.
Smart Energy Use: Integrates with solar systems to maximize green energy usage and minimize waste.
Smart App Control: Enables remote management, scheduling, and monitoring via Wi-Fi, Ethernet, Bluetooth, and RS485.
Fast & Safe Charging: Offers up to 22kW charging power with overload protection and dynamic load balancing.
Socket Version and Cable Version available.
Rated Power Options: 7.4kW, 11kW, and 22kW.
Compatible with Type 2 vehicle connectors.
Cable length: 5 meters, with app-controlled cable lock.
Voltage: 230V ±20% (1P+N+PE), 400V ±20% (3P+N+PE)
Current: 16A or 32A depending on model
IP Rating: IP55 (Socket), IP65 (Cable)
Impact Protection: IK10
Noise Level: 30 dB
Mounting: Cement/Wooden walls
Dimensions: 208 × 356 × 119 mm
Weight: Ranges from 2.43 kg to 4.95 kg
