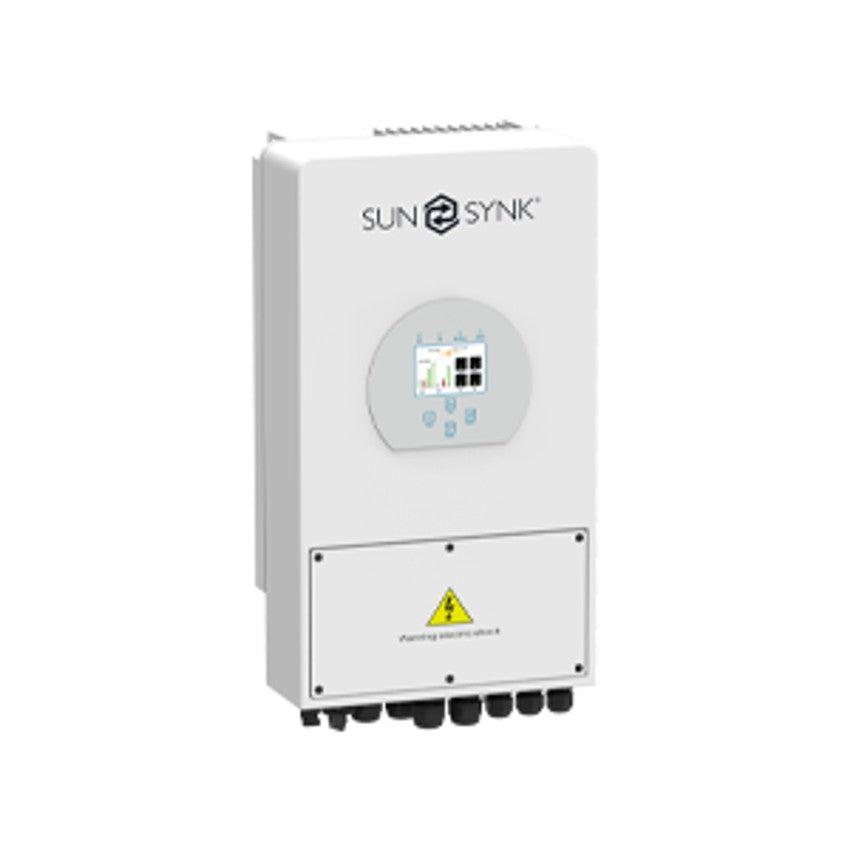

Sunsynk 8kW ECCO Single-Phase Hybrid Inverter
The Sunsynk ECCO 8kW (part number SUN-8.0-ECCO, model SYNK-8K-SG05LP1) is an 8 kW single-phase hybrid inverter with a 10.4 kW dual-MPPT PV input, designed for residential solar and battery storage where higher power is needed. With 190 A maximum charge/discharge current, 16 kW peak output (10 seconds), essential and non-essential load outputs, and up to 16 batteries connected to a single inverter, the 8 kW ECCO delivers strong performance for larger homes. Compatible with lithium-ion and lead-acid batteries. Automatic switching between grid-tied and off-grid modes. Up to 16 units in parallel. IP65 rated. WiFi logger and CT included. G99 certified. UK installations only. Available from DECO Group, a UK-based solar trade wholesaler.
Key Technical Details
- Part number: SUN-8.0-ECCO
- Supplier part number: SYNK-8K-SG05LP1 ECCO
- Inverter type: Single-phase hybrid (PV inverter and battery storage controller)
- Rated AC output power: 8,000 W
- Maximum AC power (5 minutes): 8,000 W
- Peak output: 16 kW (10 seconds)
- Maximum efficiency: 97.6%
- Euro efficiency: 96.5%
- Maximum PV input power: 10,400 W
- Maximum input voltage: 500 V
- MPPT voltage range: 125 V to 425 V
- DC startup voltage: 150 V
- Maximum DC input current: 44 A total
- MPPT quantity: 2
- Connector: MC4
- Integrated DC switch: Yes
- Transformer: None (transformerless)
- Battery charge/discharge current: 190 A
- Maximum batteries: 16 x 5.12 kWh
- Ingress protection: IP65
- Weight: 28.5 kg
Key Features
- 8 kW rated output with 10.4 kW PV input and 16 kW peak output (10 seconds)
- 190 A charge/discharge current for fast battery cycling
- Dual MPPT design for flexible array configuration
- Essential and non-essential load outputs for load prioritisation
- Compatible with lithium-ion and lead-acid batteries
- Up to 16 x 5.12 kWh batteries connected to a single inverter
- Automatic switching between grid-tied and off-grid modes
- Zero export function
- Up to 16 units in parallel with the same firmware
- Suitable for on-grid, off-grid, and UPS applications
- Built-in anti-overflow function
- IP65 rated for indoor or outdoor installation
- WiFi logger and CT included in the box
Included Components
- 1 x Sunsynk 8 kW ECCO hybrid inverter
- 1 x WiFi logger
- 1 x CT clamp
System Compatibility
- Compatible with most lithium-ion and lead-acid batteries
- Up to 16 x 5.12 kWh batteries per inverter
- Up to 16 units in parallel
- UK installations only
Certifications and Compliance
Installation Notes
- At 28.5 kg, a two-person lift is recommended
- IP65 rated for indoor or outdoor installation
- Must be installed by a qualified electrician or technician
Warranty
- Standard warranty: 5 years (registration required)
Common Questions
Click a question below to reveal the answer.
What is the difference between the Sunsynk 5kW and 8kW ECCO?
The 8 kW ECCO delivers higher rated output (8 kW vs 5 kW), more PV input (10.4 kW vs 6.5 kW), higher battery charge/discharge current (190 A vs unspecified on the 5 kW), and 16 kW peak output for 10 seconds. Both share the same ECCO platform with dual MPPT, essential/non-essential load outputs, WiFi logger and CT included, and up to 16 units in parallel.
Does the Sunsynk 8kW ECCO include a WiFi logger?
Yes. The 8 kW ECCO comes with a WiFi logger and CT clamp in the box.
How many batteries can be connected?
Up to 16 x 5.12 kWh batteries can be connected to a single 8 kW ECCO inverter.
