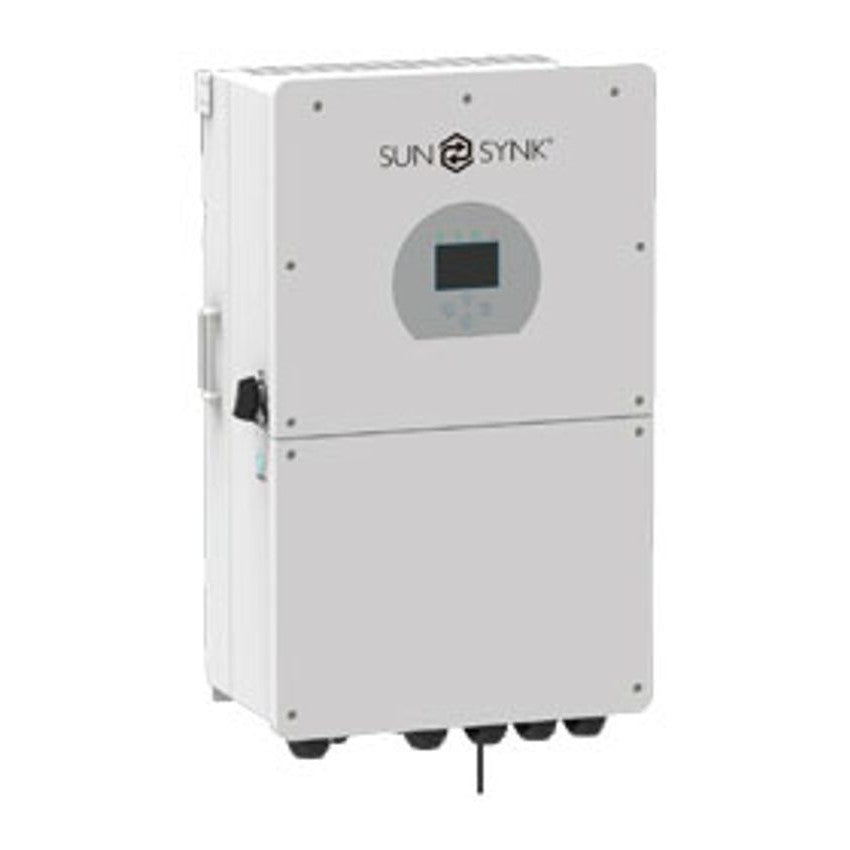

Sunsynk MAX 16kW Single-Phase 48V Hybrid Inverter
The Sunsynk MAX 16kW (part number SUN-16.0, model SYNK-16K-SG01LP1) is a 16 kW single-phase low-voltage (48 V) hybrid inverter — described by Sunsynk as the biggest single-phase all-in-one inverter available. With 3 MPPT trackers, 6 DC inputs, a maximum PV input of 20,800 W, 32,000 W surge power, and 97.6% Euro efficiency, the MAX 16kW is designed for large domestic and small commercial installations. Up to 3 units in single-phase parallel (48 kW) or 15 units in three-phase configuration (240 kW, 5 per phase). Compatible with leading lithium battery brands including Pylontech, Hubble Lithium, and Freedom Won. IP65 rated. WiFi dongle included. G99 certified. Available from DECO Group, a UK-based solar and energy storage wholesaler for professional trade installers.
Key Technical Details
- Part number: SUN-16.0
- Supplier part number: SYNK-16K-SG01LP1
- Inverter type: Single-phase low-voltage (48 V) hybrid
- Rated output power: 16,000 W
- Maximum AC power (5 minutes): 16,001 W
- Surge AC power (1 second): 32,000 W
- Euro efficiency: 97.6%
- Maximum PV input power: 20,800 W
- Maximum PV input voltage: 450 V
- MPPT voltage range: 250 V to 450 V
- DC startup voltage: 150 V
- Maximum DC input current: 78 A total
- Maximum DC inputs: 6
- MPPT quantity: 3
- Connector: Screw terminal (12 included)
- Integrated DC switch: Yes
- Transformer: None (transformerless)
- Battery voltage: 48 V DC (low voltage)
- Maximum inverter passthrough current: 150 A
- Ingress protection: IP65
- Weight: 60 kg
Key Features
- 16 kW rated output — the largest single-phase hybrid inverter in the Sunsynk range
- 3 MPPT trackers with 6 DC inputs for flexible PV array design
- 20,800 W maximum PV input for significant DC oversizing
- 32,000 W (32 kW) surge power for demanding startup loads
- 97.6% Euro efficiency
- Parallel operation: up to 3 units single-phase (48 kW) or 15 units three-phase (240 kW, 5 per phase)
- Programmable operation modes: on-grid, off-grid, and UPS
- Compatible with Pylontech LV, Hubble Lithium, Freedom Won, and other leading lithium battery brands
- IP65 rated for indoor or outdoor installation
- WiFi dongle included for Sunsynk Cloud remote monitoring
- Supports Octopus Agile, Flux, and Go tariff integration
- Sunsynk Logger app for remote control, real-time alerts, and live monitoring
System Compatibility
- Compatible with leading lithium battery brands: Pylontech LV, Hubble Lithium, Freedom Won, and others (refer to Sunsynk Battery Compatibility List)
- For Pylontech, REVOV, and Hubble Lithium installations: use BMS cable SUN-CAN-3M
- For Freedom Won installations: use BMS cable F-WON-CAN-SUN
- Up to 3 units in single-phase parallel (48 kW total)
- Up to 15 units in three-phase configuration (5 per phase, 240 kW total)
Installation Notes
- At 60 kg, a two-person lift is required
- IP65 rated for indoor or outdoor installation
- Maximum passthrough current: 150 A. Recommended circuit breaker size: 100 A
- Size 3 fuse holder with appropriately rated size 3 fuses is recommended due to high battery DC currents
- When carrying out firmware updates, ensure the inverter is on bypass mode and PV is off
- Warranty registration must take place within 7 days of commissioning
- Must be installed by a qualified electrician or technician
Certifications and Compliance
Warranty
- Standard warranty: 5 years (registration required within 7 days of commissioning)
Common Questions
Click a question below to reveal the answer.
How does the Sunsynk MAX 16kW compare to the ECCO range?
The MAX 16kW is significantly larger than the ECCO 3.6 kW and 5 kW models. It has 3 MPPT trackers (vs 2), 6 DC inputs (vs 2), 32 kW surge (vs 7.9–11 kW), and supports up to 15-unit three-phase parallel operation (vs 16-unit single-phase only on the ECCO). The MAX is designed for large domestic and small commercial installations.
Which BMS cable do I need?
For Pylontech, REVOV, and Hubble Lithium batteries: use SUN-CAN-3M. For Freedom Won batteries: use F-WON-CAN-SUN.
Can I install the MAX 16kW in a three-phase configuration?
Yes. Up to 15 units can be connected in a three-phase configuration (5 per phase) for a maximum output of 240 kW.
What fuse size is recommended?
Size 3 fuse holder with appropriately rated size 3 fuses is recommended due to the high battery DC currents. Maximum passthrough current is 150 A with a recommended circuit breaker size of 100 A.
