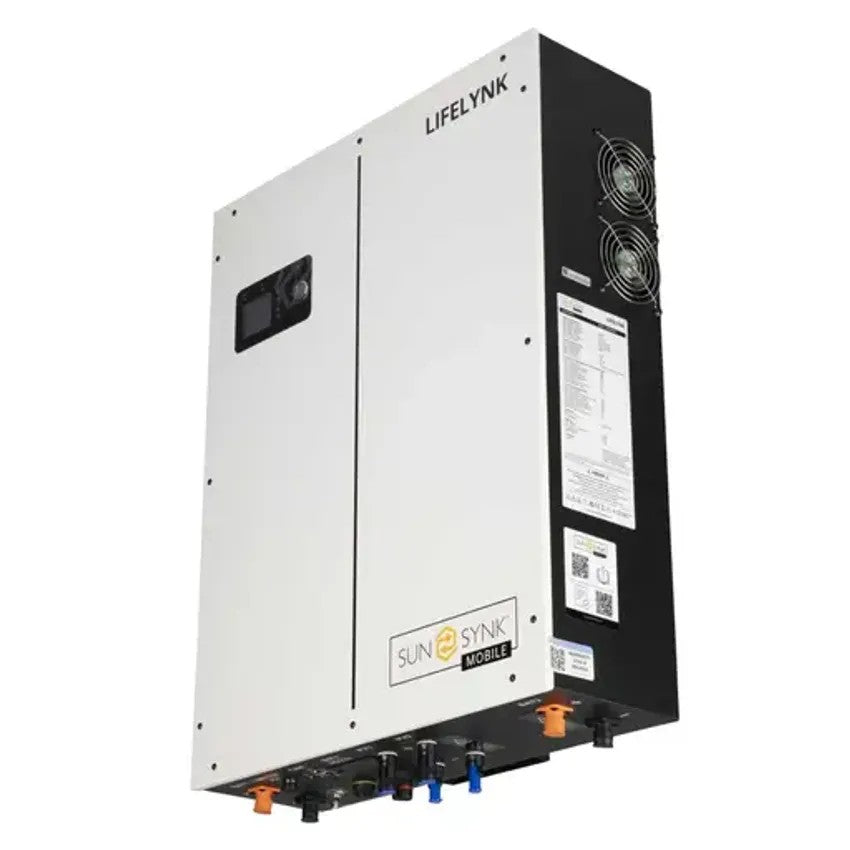

Sunsynk Lifelynk X 3.6kW Hybrid Inverter with 3.84kWh Battery
The Sunsynk Lifelynk X (part number LIFE-3.6-HYB02) is an all-in-one hybrid inverter and battery storage system combining a 3.6 kW hybrid inverter with an integrated 3.84 kWh LiFePO₄ battery in a single unit. With a maximum PV input of 4,500 W at up to 500 V, 97.6% maximum inverter efficiency, 80 A maximum battery discharge current, and plug-and-play connection points for Load, Grid, CT, and WiFi data logger, the Lifelynk X is designed for simple residential installation. Compatible with three external Sunsynk batteries for capacity expansion. Sunsynk Connect app monitoring. Available from DECO Group, a UK-based solar and energy storage wholesaler for professional trade installers.
Key Technical Details
Inverter
- Part number: LIFE-3.6-HYB02
- Inverter rated power: 3,600 W
- Nominal output voltage: 230 V AC
- Maximum PV input voltage: 500 V
- Maximum PV input power: 4,500 W
- Maximum inverter efficiency: 97.6%
- MPPT efficiency: 99.9%
Battery
- Battery chemistry: LiFePO₄
- Battery capacity: 3,840 Wh (3.84 kWh)
- Nominal battery voltage: 51.2 V
- Battery input voltage range: 43.2 V to 57.6 V
- Maximum battery discharge current: 80 A (configurable)
- Maximum battery to load efficiency: 94.0%
General
- Operating temperature: -25°C to +60°C
- Protection class: Class 1
- Dimensions: 701 x 544 x 182 mm (H x L x W)
- Weight: 57 kg
Key Features
- All-in-one unit: 3.6 kW hybrid inverter and 3.84 kWh LiFePO₄ battery in a single module
- Plug-and-play connection points for Load, Grid, CT, and WiFi data logger
- 97.6% maximum inverter efficiency and 99.9% MPPT efficiency
- Up to 4,500 W PV input at 500 V maximum
- 80 A configurable maximum battery discharge current
- Expandable with compatible external Sunsynk batteries
- Sunsynk Connect app for monitoring and system management
- Designed for simple, fast residential installation
System Compatibility
- Verified compatibility with three external batteries for capacity expansion: SUN-BATT-5.32 (W5.3), SUNSYNK-L5.1 (CATL), and L051069-A
- Supported external battery type: LiFePO₄
- External battery voltage range: 40 V to 59 V
Installation Notes
- At 57 kg, a two-person lift is required
- All-in-one design with plug-and-play connections simplifies installation
- Everything required for installation is included with the unit
- Must be installed by a qualified electrician or technician
Common Questions
Click a question below to reveal the answer.
Can I add more battery storage to the Lifelynk X?
Yes. The Lifelynk X has verified compatibility with three external Sunsynk batteries: the W5.3 (SUN-BATT-5.32), the CATL (SUNSYNK-L5.1), and the L051069-A. These connect externally to increase total storage capacity beyond the built-in 3.84 kWh.
What is included in the box?
The Lifelynk X is an all-in-one unit with everything required for installation included. The inverter, battery, and plug-and-play connection points for Load, Grid, CT, and WiFi data logger are all integrated.
What is the difference between the Lifelynk X and the Sunsynk ECCO?
The Lifelynk X is an all-in-one unit with the inverter and battery integrated in a single module (3.6 kW / 3.84 kWh). The ECCO is an inverter only that requires separate external batteries. The Lifelynk X is designed for the simplest possible installation, while the ECCO offers more flexibility in battery sizing.
About Sunsynk
Sunsynk Mobile, a division of Sunsynk, develops compact, self-contained energy storage solutions. The Lifelynk range combines hybrid inverters and lithium iron phosphate batteries in integrated units designed for residential and small commercial applications.
