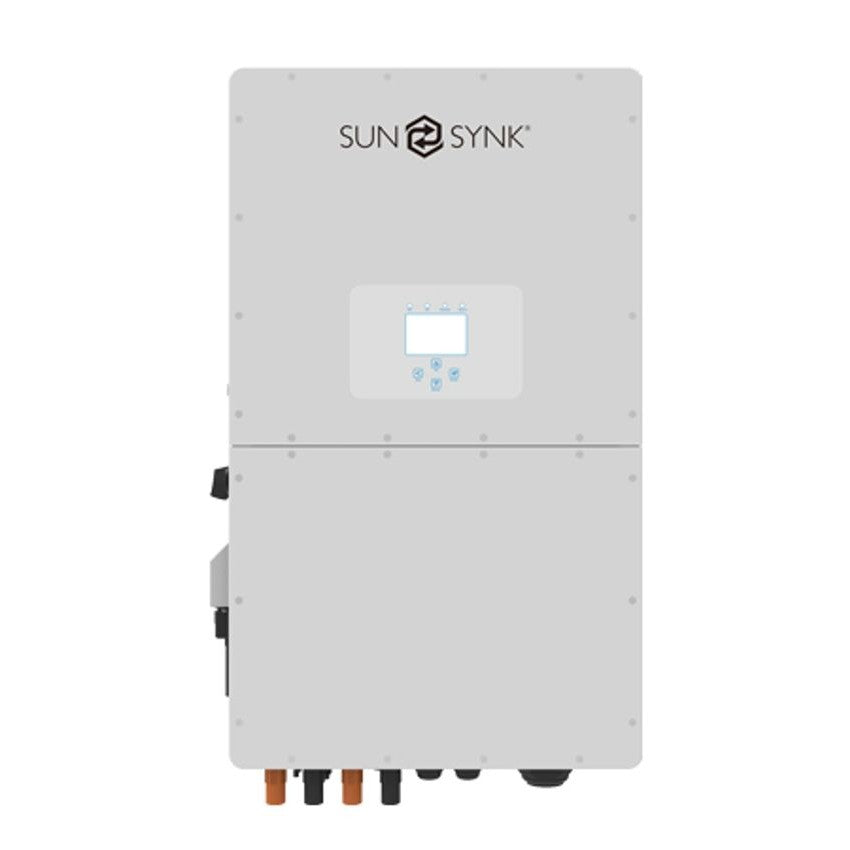

Sunsynk 50kW Three-Phase High-Voltage Hybrid Inverter
The Sunsynk 50kW (part number SUN-50.0-3PH, model SYNK-50K-SG01HP3-EU) is a 50 kW three-phase high-voltage hybrid inverter designed for commercial solar and battery storage installations. With 4 MPPT trackers, 8 DC inputs (2 strings per MPPT), a maximum PV input of 65,000 W at up to 1,000 V, and 97% Euro efficiency, the Sunsynk 50kW delivers high-capacity energy management with up to 30% DC oversizing. Up to 10 units in parallel, each with its own battery stack. Can operate without batteries using PV and grid power. Type II DC/AC surge protection as standard. IP65 rated. WiFi remote monitoring included. G99 certified. Available from DECO Group, a UK-based solar and energy storage wholesaler for professional trade installers.
Key Technical Details
- Part number: SUN-50.0-3PH
- Supplier part number: SYNK-50K-SG01HP3-EU
- Inverter type: Three-phase high-voltage hybrid
- Rated output power: 50,000 W
- Maximum AC power (5 minutes): 50,000 W
- Surge AC power (1 second): 55,000 W
- AC output voltage: 3L/N/PE, 220/380 V or 230/400 V
- AC output rated current: 75.8 A / 72.5 A
- Maximum AC current: 83.3 A
- Euro efficiency: 97%
- Maximum PV input power: 65,000 W
- Maximum PV input voltage: 1,000 V
- MPPT voltage range: 150 V to 850 V
- DC startup voltage: 180 V
- Maximum DC input current: 144 A total
- Maximum DC inputs: 8 (2 strings per MPPT)
- MPPT quantity: 4
- Connector: MC4
- Integrated DC switch: Yes
- Transformer: None (transformerless)
- Surge protection: Type II DC/AC as standard
- Battery type: High voltage
- Maximum battery discharge current: 100 A
- Ingress protection: IP65
- Weight: 75 kg
Key Features
- 50 kW rated output for commercial-scale solar and storage
- 4 MPPT trackers with 8 DC inputs (2 strings per MPPT) for flexible array design
- 65,000 W maximum PV input allowing up to 30% DC oversizing
- 97% Euro efficiency
- High-voltage battery system with 100 A maximum discharge current
- Can operate without batteries using PV and grid power
- Up to 10 units in parallel, each with its own battery stack
- Type II DC/AC surge protection as standard
- Overload, over-temperature, and short-circuit protection
- IP65 rated for indoor or outdoor installation
- WiFi remote monitoring as standard via Sunsynk Cloud
- 5-year warranty, extendable to 10 years when paired with Sunsynk batteries
Important — Battery Voltage Requirement
- The battery voltage connected to this inverter should always be above 500 V
- Maximum discharge current is 100 A — if battery voltage drops below 500 V, the inverter will limit output (e.g. 430 V x 100 A = 43 kW)
- If loads exceed the limited output, the inverter will produce overload errors
- Select a battery configuration that maintains voltage above 500 V at all times
System Compatibility
- High-voltage battery system — refer to the Sunsynk HV Battery Compatibility List for confirmed compatible batteries
- When deployed with Freedom Won batteries, log a ticket with Freedom Won to update the battery profile for Sunsynk 50kW HV compatibility
- Up to 10 units in parallel, each with its own battery stack
- Can operate without batteries (PV and grid only)
Installation Notes
- At 75 kg, mechanical lifting equipment or a multi-person team is required
- IP65 rated for indoor or outdoor installation
- Installer must be a qualified three-phase electrician with product-specific training
- Specific manufacturers may require training prior to installation for warranty conditions
- Non-compliance with installer requirements will lead to warranty invalidation
Certifications and Compliance
Warranty
- Standard warranty: 5 years
- Extended warranty: 10 years when paired with Sunsynk batteries
Common Questions
Click a question below to reveal the answer.
Why must battery voltage stay above 500V?
The inverter's maximum discharge current is 100 A. If battery voltage drops below 500 V, the maximum power output is limited (voltage x current). For example, at 430 V the inverter can only deliver 43 kW. Loads above this limit will cause overload errors. Select a battery configuration that maintains voltage above 500 V at all times to achieve the full 50 kW output.
Can the Sunsynk 50kW operate without batteries?
Yes. The inverter can operate using PV and grid power without batteries connected.
How many Sunsynk 50kW inverters can be installed in parallel?
Up to 10 units in parallel, each with its own battery stack, for a maximum combined output of 500 kW.
What training is required for installation?
The installer must be a qualified three-phase electrician with product-specific training. Some battery manufacturers may also require their own training for warranty compliance. Non-compliance may invalidate the warranty.
