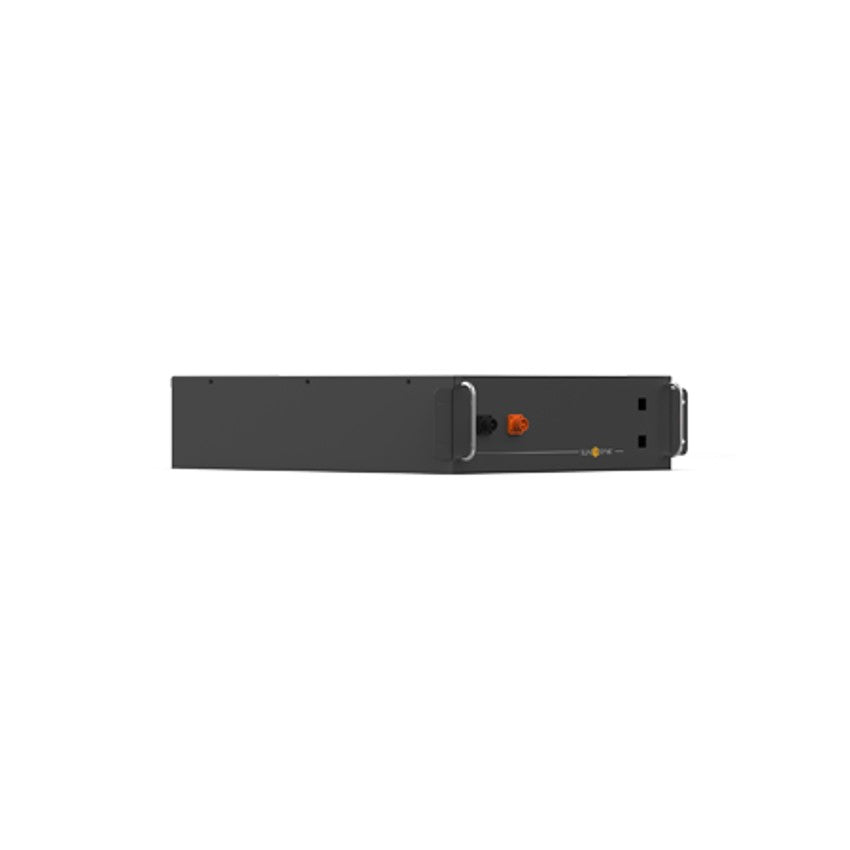

Sunsynk 5.12kWh Single Battery Unit for HV Series
The Sunsynk 5.12 kWh HV battery (part number SUN-HV-5.12-BATT, supplier part number SUNSYNK-GM5.1) is a single lithium iron phosphate (LiFePO₄) battery module for the Sunsynk high-voltage battery system. Each module provides 5.12 kWh at a nominal voltage of 51.2 V per unit, with a peak discharge capability of 1C (100 A). Modules stack in series using a Sunsynk HV BMS to form high-voltage battery systems up to 61.44 kWh (12 modules). This is a single battery module only; for complete systems, order as part of a 20.48 kWh (SUN-HV-20.48) or 61.44 kWh (SUN-HV-61.44) configuration. Available from DECO Group, a UK-based solar and energy storage wholesaler for professional trade installers.
Key Technical Details
- Part number: SUN-HV-5.12-BATT
- Supplier part number: SUNSYNK-GM5.1 (black)
- Battery chemistry: Lithium iron phosphate (LiFePO₄)
- Nominal energy: 5,120 Wh (5.12 kWh)
- Nominal voltage: 51.2 V per module
- Depth of discharge: 100%
- Continuous discharge rate: 5,120 W
- Maximum discharge rate (5 minutes): 5,120 W
- Surge discharge rate (15 seconds): 5,120 W
- Maximum charge rate (5 minutes): 5,120 W
- Peak discharge current: 100 A (1C)
- Cycle life: over 6,000 cycles
- Communication: CAN 2.0, RS485
- Weight: 44 kg
Key Features
- 5.12 kWh capacity per module with LiFePO₄ chemistry
- 100% depth of discharge for maximum usable energy
- 1C peak discharge capability (100 A) for demanding household loads
- Modular and stackable: up to 12 modules per BMS for 61.44 kWh
- LiFePO₄ chemistry for enhanced thermal stability and long cycle life (over 6,000 cycles)
- CAN 2.0 and RS485 communication for BMS integration
System Compatibility
- For use with the Sunsynk HV battery system and Sunsynk HV BMS
- This is a single battery module; a Sunsynk HV BMS and battery cabinet/rack are required to form a working system
- For complete configurations, order as SUN-HV-20.48 (4 modules + BMS + cabinet) or SUN-HV-61.44 (12 modules + BMS + rack)
- Compatible with Sunsynk hybrid inverters
Installation Notes
- At 44 kg, a two-person lift is required
- Requires a Sunsynk HV BMS and battery cabinet or rack for installation
- Must be installed by a qualified electrician or technician
Warranty
- 10-year manufacturer warranty
Common Questions
Click a question below to reveal the answer.
Can I use this battery module on its own?
No. This is a single battery module that requires a Sunsynk HV BMS and battery cabinet or rack to form a working system. For complete pre-configured systems, order SUN-HV-20.48 or SUN-HV-61.44.
How many modules can be stacked together?
Up to 12 modules can be stacked with a single Sunsynk HV BMS, providing a maximum system capacity of 61.44 kWh.
What is the cycle life?
Over 6,000 cycles with LiFePO₄ chemistry, backed by a 10-year manufacturer warranty.
DECO Group supplies Sunsynk HV battery modules, BMS units, battery cabinets, and compatible hybrid inverters. Browse our Sunsynk catalogue for complete HV storage system configurations.
