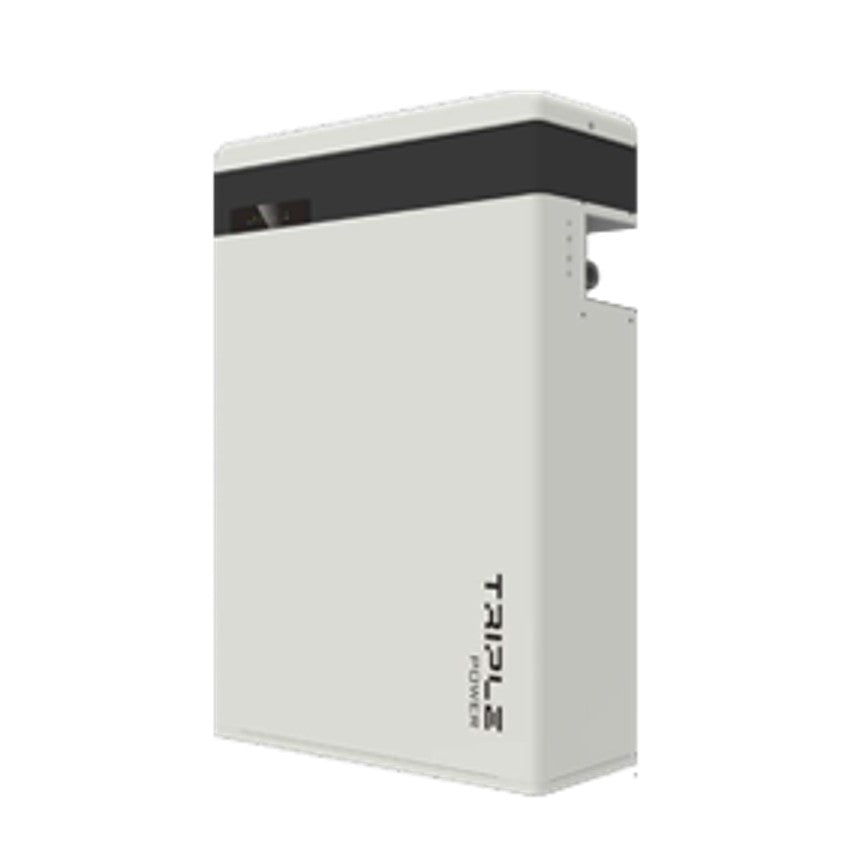

SolaX Triple Power HV 5.8kWh LFP Main Battery MASTER V2
SolaX Triple Power HV 5.8kWh LFP Main Battery MASTER V2
Couldn't load pickup availability

Solax Triple Power LFP Main Battery (Master) T-BAT-H-58. The perfect match to X1-Hybrid, X3-Hybrid and X1-AC, the SolaX Triple Power LFP battery is available as Master Battery 5.8kWh and Slave Battery 5.8kWh. Each Master can be installed with up 3 Slave batteries in series (charger dependent) for up to 23.2kWh storage capacity.
Please note: Only 1 or 2 slave batteries can be used with 1x Master in a single-phase system (maximum 3 batteries in total) and 2 or 3 slave batteries can be used with 1x master in a three-phase system (Maximum 4 batteries in total). Additional features:
- Scalable to 23.2kWh
- Up to 4kW charge/discharge
- High voltage means thinner cables are required.
- Compact design
- 90% depth of discharge
- 6000 life cycles
- Easy installation – plug and play with all cables supplied
- Solax LFP 5.8kWh batteries will initially arrive with Blue TOP. This will change to Black TOP at some point in the near future.
- Triple power LFP 5.8kWh Slave batteries can only be matched with LFP 5.8kWh master batteries.
* Please note that they are not compatible with Generation 1 or 2 BMS or batteries. Also, when being used on a X3 inverter you will need a minimum of 2 batteries per inverter. (1 X Master, 1 X Slave)
