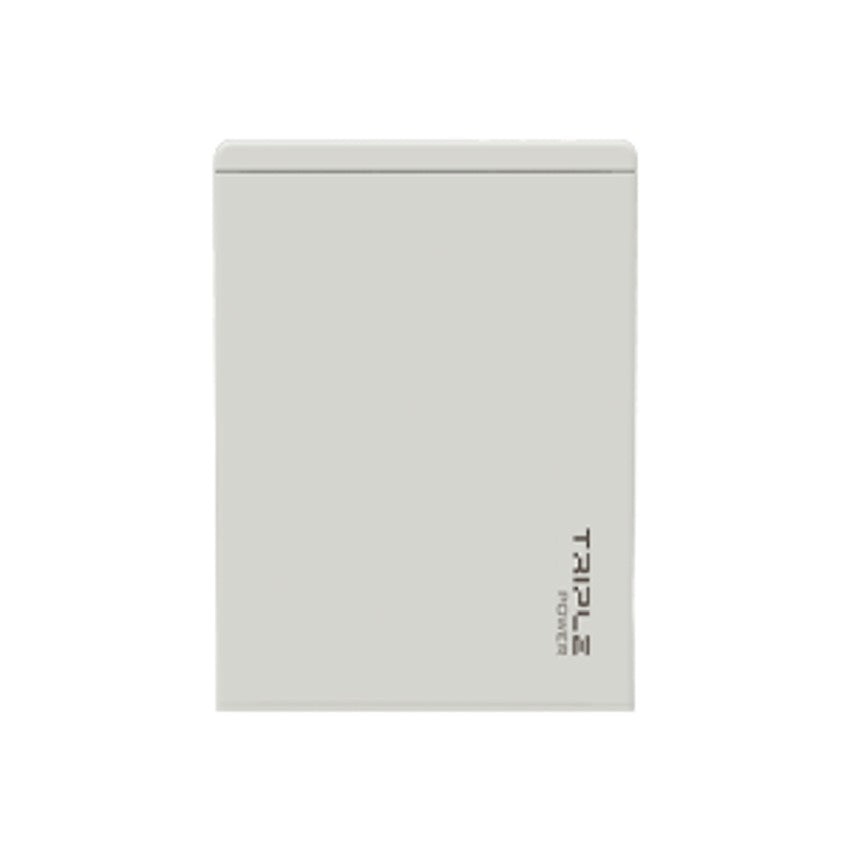

SolaX Triple Power HV 5.8kWh LFP Extension Battery SLAVE V2

Solax Triple Power LFP Extension Battery (Slave)  HV11550-58. The perfect match to X1-Hybrid, X3-Hybrid and X1-AC, the SolaX Triple Power LFP battery is available as Master battery 5.8kWh and Slave battery 5.8kWh. Each Master can be installed with up 3 slave batteries in series (charger dependent) for up to 23.2kWh storage capacity.

Please note only 1 or 2 slave batteries can be used with 1x Master in a single-phase system (Maximum 3 batteries in total) and 2 or 3 slave batteries can be used with 1x Master in a three-phase system (Maximum 4 batteries in total).

Additional features:

• Scalable to 23.2kWh
• Up to 4kW charge/discharge
• High voltage means thinner cables are required.
• Compact design
• 90% Depth of discharge
• 6000 life cycles
• Easy installation – plug and play with all cables supplied
• Triple power LFP 5.8kWh Slave batteries can only be matched with LFP 5.8kWh Master batteries.  They are not compatible with generation 1 or 2 BMS or batteries.
• Solax LFP 5.8kWh batteries will initially arrive with Blue TOP. This will change to Black TOP at some point in the near future.

 * Please note this is a HV11550-58 Extension (Slave) Battery only, it requires HV-T-BAT-H-58 main battery (master) to work.
