Pylontech Pelio Wall Mount - Secure Battery Installation Kit
The Pylontech Pelio Wall Mount is a complete installation kit designed for easy and secure wall installation of Pylontech Pelio-L-5.12 LV Battery Modules. This comprehensive mounting kit provides all necessary brackets, cables, and components to ensure a reliable and safe wall-mounted setup, including dedicated left and right mounting brackets for proper weight distribution and stability.
Key Technical Details
- Product: Pylontech Pelio Wall Mount - Complete Installation Kit
- Part No: PYL-PELIO-WALL-MOUNT
- Supplier Part No: 3BWBW01-00093
- Compatible Battery: Pylontech Pelio-L-5.12 LV Battery Module
- Weight: 3.95 kg
- Application: Wall-mounted battery installation
- Kit type: Complete wall mounting package with cables and mounting hardware
Why Choose the Pylontech Pelio Wall Mount Kit?
- Installing Pylontech Pelio batteries correctly is essential for system efficiency and safety
- Secure and durable wall mounting solution
- All necessary components included for hassle-free installation
- Ensures correct cable lengths and proper gauge selection
- Reduces installation errors and enhances system safety
- Compatible with Pylontech Pelio batteries
- Professional installation kit eliminates guesswork
- Precisely engineered components for proper fit and function
- Dedicated left and right brackets for balanced mounting
Complete Installation Kit - Included Components

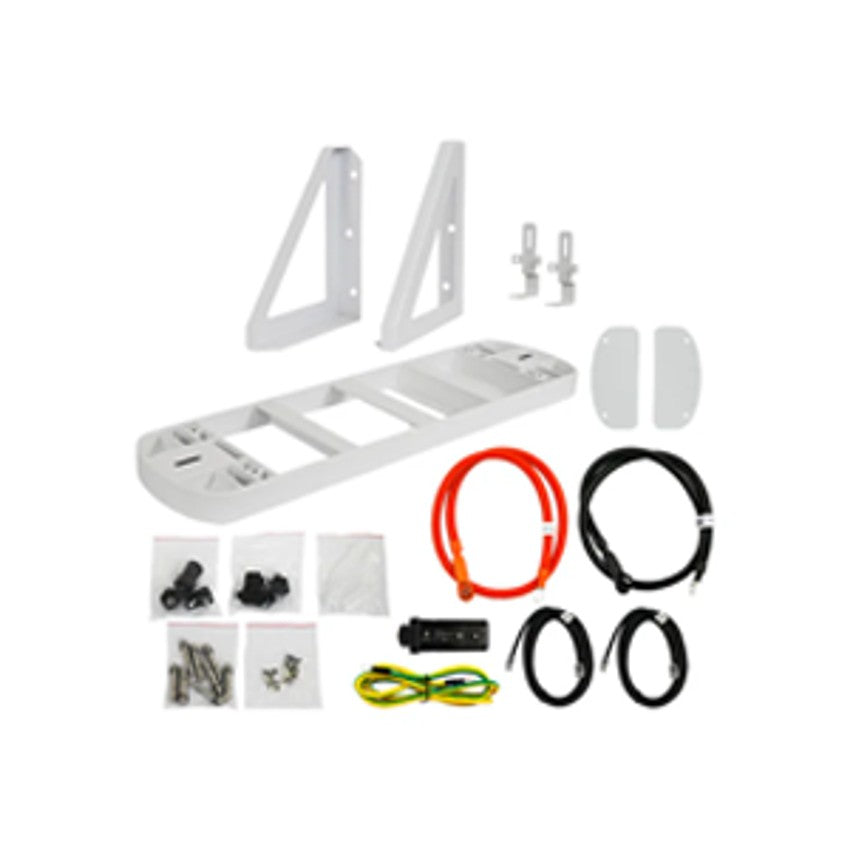

- 1 x PELIO Left Bracket - Dedicated left-side wall mounting bracket
- 1 x PELIO Right Bracket - Dedicated right-side wall mounting bracket
- 1 x PELIO Base - Main mounting base platform
- 1 x PELIO 1.2m Cable / 4AWG Positive - Power cable (positive) - shorter for wall mounting
- 1 x PELIO 1.2m Cable / 4AWG Negative - Power cable (negative) - shorter for wall mounting
- 1 x PELIO 2.5m RS485 Communication Cable / RJ45 - Serial communication
- 1 x PELIO 2.5m CAN Communication Cable / RJ45 - CAN bus communication
- 2 x Communication Port - Communication connection points
- 1 x PELIO Grounding Cable - Safety grounding connection
- 2 x PELIO Anti-Tipping Bracket - Stability and safety brackets
- 2 x TS51100-Pelio/Outlet Bracket - Outlet mounting brackets
- 2 x Screw M5×12 - Mounting hardware
- 4 x Screw M4×6 - Mounting hardware
- 4 x Screw M6×16 - Mounting hardware
- 8 x Expansion Screw M8×60 - Wall mounting screws
- 4 x TSP120-R Waterproof Cover - Weather protection covers
- 2 x PELIO Handle Baffle - Handle protection/guide components
- 10 x Nylon Countersunk Head Screw M5×10 - Mounting hardware
- 1 x WIFI Block - Wireless communication module
Key Differences from Ground Mount Kit
- Includes dedicated left and right wall mounting brackets (not in ground mount kit)
- Shorter 1.2m power cables (vs 2.5m in ground mount) optimized for wall installation
- 8 x M8×60 expansion screws (vs 4 in ground mount) for secure wall attachment
- 4 x M6×16 screws (not in ground mount kit) for bracket assembly
- 10 x M5×10 nylon screws (vs 5 in ground mount) for additional mounting points
- Total weight 3.95 kg (vs 3.8 kg for ground mount)
Key Features
- Complete kit with 19 different component types for comprehensive wall installation
- 1.2m power cable lengths optimized for wall mounting proximity
- 2.5m communication cables provide flexible routing options to inverter
- 4AWG power cables for proper current capacity
- Dual communication options: RS485 and CAN protocols
- Dedicated left and right brackets ensure balanced weight distribution
- Anti-tipping brackets enhance safety and prevent forward tilting
- Waterproof covers protect connections from weather and moisture
- Grounding cable ensures electrical safety
- WIFI block enables wireless monitoring capabilities
- All mounting hardware included - no additional purchases needed
- Professional-grade components for long-term reliability
Improved Safety and Reliability
- Ensures all cables are correct length and gauge, reducing risk of installation errors
- Secure mounting system improves stability and longevity of battery system
- Precisely engineered brackets for optimal load distribution on wall
- Anti-tipping brackets prevent dangerous forward movement
- Proper cable gauging prevents overheating and fire hazards
- Grounding cable provides electrical safety protection
- Waterproof covers protect against moisture ingress
- Dedicated left/right brackets ensure symmetrical mounting
- Minimises risk of installation errors that could compromise safety
Installation Benefits
- All components precisely matched for Pelio-L-5.12 wall mounting
- Eliminates need to source individual components separately
- Shorter 1.2m power cables reduce clutter and ensure neat installation
- Proper gauge selection prevents electrical issues
- Complete hardware package streamlines installation process
- Left and right brackets provide clear installation guidance
- 8 expansion screws ensure secure attachment to various wall types
- Anti-tipping brackets provide code-compliant safety features
- Communication cables support multiple protocol options
- Professional appearance with included waterproof covers
Important Note - Parallel Connection
- Attention: Parallel connection communication cable is NOT included in this kit
- If you need parallel connection cable for multi-battery systems, please contact us
- Call or send email to request parallel connection communication cables
- This kit is designed for single battery wall mount installation
- Additional cables required for parallel battery configurations
Installation Overview
- Locate suitable wall studs or use appropriate wall anchors for battery weight
- Install PELIO left and right brackets on wall using M8×60 expansion screws
- Mount PELIO Base between brackets
- Install anti-tipping brackets for forward tilt prevention
- Position Pelio-L-5.12 battery on mounted base
- Connect 1.2m 4AWG positive and negative power cables
- Connect 2.5m RS485 or CAN communication cable as required by inverter
- Install grounding cable for electrical safety
- Secure all connections with provided mounting hardware
- Install waterproof covers on connection points
- Configure WIFI block for wireless monitoring if desired
- Verify secure wall mounting and all connections before energizing system
Wall Installation Considerations
- Ensure wall can support battery weight plus mounting hardware
- Locate studs or use appropriate heavy-duty wall anchors
- 8 expansion screws distribute load across wall structure
- Anti-tipping brackets prevent forward tilting from wall
- Shorter 1.2m power cables minimize cable management challenges
- Maintain proper clearances for ventilation around battery
- Consider accessibility for future maintenance and monitoring
Applications
- Pylontech Pelio-L-5.12 LV Battery Module wall installations
- Residential energy storage systems with wall mounting preference
- Commercial battery storage installations requiring wall mounting
- Indoor battery installations where floor space is limited
- Garage or utility room battery installations
- Off-grid solar power systems
- Grid-tied solar with battery backup
- Space-efficient installations maximizing floor area
System Compatibility
- Designed specifically for Pylontech Pelio-L-5.12 LV Battery Module wall mounting
- RS485 communication compatible with multiple inverter brands
- CAN communication compatible with CAN-enabled inverters
- WIFI block enables remote monitoring capabilities
- Part of Pylontech Pelio battery accessory range
- Professional installation kit for authorized installers
