Pylontech Powercube Battery Module H2 - 3.552kWh High-Voltage Lithium-Ion Module

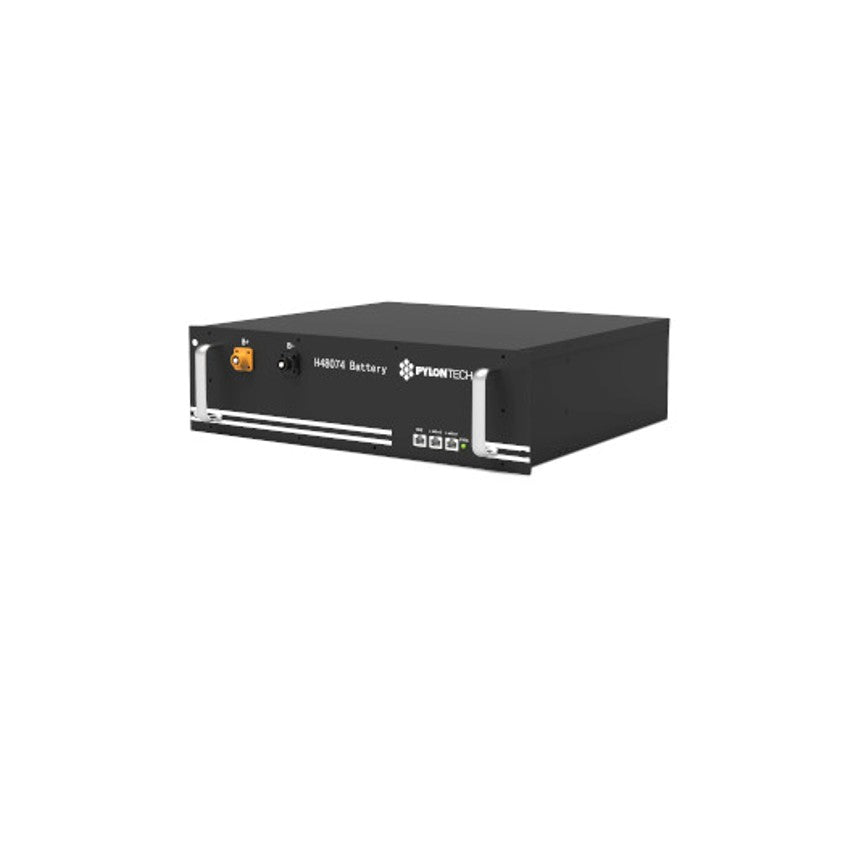

The Pylontech Powercube Battery Module (H48074NA01V00101) is designed with a modular concept, offering exceptional flexibility for high-voltage energy storage systems. Configurable for both rack-mounted and container-based setups, this 3.552kWh lithium-ion battery module is perfect for scalable and reliable commercial and industrial energy solutions, utilizing LiFePO4 technology for enhanced safety and extended cycle life.

Key Technical Details

• Product: Pylontech Powercube H2 Battery Module - 3.552kWh, 48V 74Ah
• Part No: PYL-PC-H2-BATT
• Manufacturer Product Code: H48074NA01V00101
• Battery Type: Lithium Ion - LiFePO4
• Nominal Energy: 3,552 Wh (3.552 kWh)
• Depth of Discharge: 90%
• Voltage: 48 V
• Capacity: 74 Ah
• Continuous Discharge Rate (Normal Use): 1,776 W
• Maximum Discharge Rate (5 Minutes): 3,552 W
• Surge Discharge Rate (15 Seconds): 3,552 W
• Maximum Charge Rate (5 Minutes): 3,552 W
• Weight: 31 kg
• Maximum allowed voltage: 53.5V

Key Features

• Modular and Scalable: Configurable with 5 to 12 modules per rack and up to 6 racks in parallel
• Flexible Voltage Range: Operates between 240VDC and 576VDC for high-voltage applications
• LiFePO4 Technology: Provides enhanced safety and extended cycle life
• High System Safety: BMS offers charge, current, and temperature protection
• Flexible Configuration: Suitable for both rack-mounted and container-based systems
• Included Accessories: Each battery includes 1 x Communication Cable and 1 x Orange Power Cable
• Modular design concept enables highest flexibility for deployment
• Series connection for high-voltage applications

Scalability and Configuration

• Powercube system allows configurations of:
• 5 to 12 modules per rack (minimum 5 modules required)
• Up to 6 racks in parallel
• System voltage range: 240VDC to 576VDC (flexible BMS voltage range)
• Capacity per rack: 17.76 kWh (5 modules) to 42.624 kWh (12 modules)
• Maximum system capacity: 255.744 kWh (6 racks × 12 modules)
• Scalable from 17.76 kWh to over 255 kWh total capacity

Included Accessories per Module

• 1 x Communication Cable
• 1 x Orange Power Cable
• Cables included with each battery module
• Ready for installation upon receipt

Required Additional Components

• BMS unit required for each individual stack of batteries
• External cable kit (CAB-PK-PYLON) required for each stack - use silver tabbed comms cable to inverter
• Minimum of 5 battery modules required for BMS operation
• For installations with 2 BMS units or more, an MBMS (Master BMS) is required
• Compatible rack system required - see Rack and Door Kits

LiFePO4 Technology Benefits

• Enhanced safety compared to other lithium-ion chemistries
• Extended cycle life for long-term reliability
• Superior thermal stability
• Lower risk of thermal runaway
• Environmentally friendly chemistry
• Excellent performance across temperature ranges

High System Safety Features

• BMS provides comprehensive protection:
• Charge protection prevents overcharging
• Current protection prevents excessive discharge rates
• Temperature protection monitors thermal conditions
• Voltage monitoring and balancing
• Cell-level monitoring and management
• Automatic shutdown in fault conditions

Warranty and Registration

• Standard manufacturer warranty: 5 years
• Extended warranty available: Additional 3 years (total 8 years)
• Free warranty extension through registration
• Register at Pylontech Support Page: http://www.pylontech.com.cn/service/support
• Complete information on 'Sign Up Battery' page
• Registration must be completed to activate extended warranty

Important Notes - Critical Installation Requirements

• IMPORTANT: MAX DISCHARGE RATE IS ONLY APPLICABLE FOR 15 SECONDS FOR HIGH VOLTAGE PRODUCTS
• Maximum allowed voltage is 53.5V
• CRITICAL: Check inverter settings are below 53.5V BEFORE plugging in UTILITY/SOLAR to inverter
• Failure to verify voltage settings may damage equipment
• 15-second surge discharge limitation must be observed

Professional Installation Requirements

• IMPORTANT: This product must be installed by qualified electrician/technician
• All installations must adhere to local wiring regulations and standards
• SegenSolar/SolarSell will not be held liable for product malfunctions resulting from incorrect installation
• High-voltage system requires professional expertise
• Follow all manufacturer installation guidelines
• Ensure proper rack mounting and module stacking
• Verify all electrical connections before energizing

System Configuration Examples

• Minimum system: 5 modules = 17.76 kWh @ 240VDC
• Medium system: 8 modules = 28.416 kWh @ 384VDC
• Maximum single rack: 12 modules = 42.624 kWh @ 576VDC
• Parallel racks: Multiple racks up to 6 in parallel for maximum capacity
• Each module adds 3.552 kWh and 48V (when series connected)

Installation Notes

• Compatible rack system required for module mounting
• Rack and Door Kits available separately
• Install modules in rack following manufacturer sequence
• Connect communication and power cables per module
• Install BMS unit for stack management
• Use CAB-PK-PYLON external cable kit with silver tabbed comms cable to inverter
• For multi-rack systems, install MBMS for coordination
• Ensure proper ventilation around rack system
• Verify voltage settings on inverter before connection

Applications

• Commercial high-voltage energy storage systems (240-576VDC)
• Industrial battery storage installations
• Container-based energy storage deployments
• Rack-mounted battery systems
• Scalable renewable energy storage
• Grid-tied commercial solar with battery backup
• Peak shaving and load shifting applications
• Large-scale off-grid power systems

Flexible Configuration Options

• Rack-mounted systems for indoor installations
• Container-based systems for outdoor/mobile deployments
• Modular design enables flexible system sizing
• Scale capacity by adding modules to rack (5-12 modules)
• Scale power by adding racks in parallel (up to 6 racks)
• Adapt configuration to changing energy needs

Product Status Note

• SA (South Africa): Stock is limited as product is discontinued
• Verify current availability and successor products if applicable
• Contact supplier for latest product information and alternatives

System Compatibility

• Designed for high-voltage series connection applications
• Compatible with Pylontech BMS units
• Requires Pylontech MBMS for multi-BMS installations
• Works with compatible high-voltage inverters
• Part of Pylontech Powercube H2 system ecosystem
• Compatible rack systems available separately
