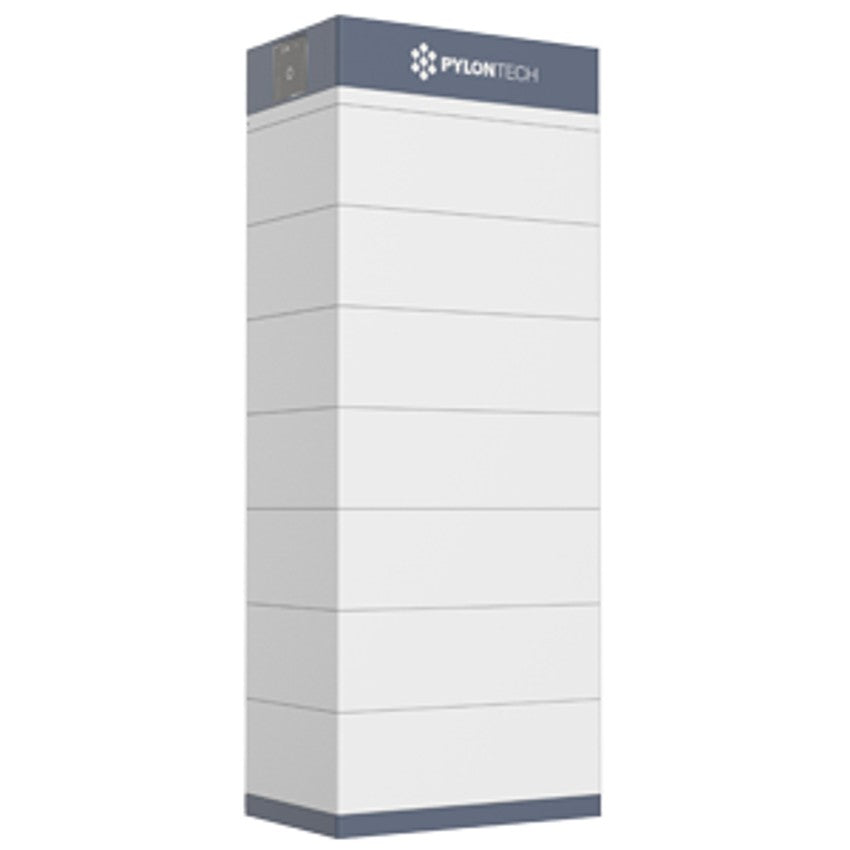

Pylontech Force H3 High Voltage System - Stack of 7 with BMU (35.84kWh Maximum Single-Tower System)
This Pylontech Force H3 complete system comprises seven 5.12kWh high-voltage battery modules plus Battery Management Unit (BMU) with base and cables, providing a ready-to-install 35.84kWh energy storage solution. Featuring the latest generation of proven lithium iron phosphate (LiFePO4) storage technology, this MAXIMUM single-tower configuration includes everything needed for a complete maximum-capacity tower installation with 716.8VDC system voltage, designed for 8,000+ charging cycles or 15 years operational life with 24/7 monitoring via app.
Key Technical Details - Complete System
- Product: Pylontech Force H3 High Voltage System - Stack of 7 with BMU (35.84kWh Maximum)
- Part No: PYL-F-H3-BATT-BMU-35.8
- Bundle contains: 7 x PYL-F-H3-BATT + 1 x PYL-F-H3-BMU-BASE
- Total nominal energy: 35,840 Wh (35.84 kWh)
- Battery type: Lithium Ion (LiFePO4)
- Depth of discharge: 95%
- System voltage: 716.8 VDC (716 V - 7 modules in series)
- Continuous discharge rate (normal use): 35,840 W
- Maximum discharge rate (5 minutes): 35,840 W
- Surge discharge rate (15 seconds): 39,424 W
- Maximum charge rate (5 minutes): 35,840 W
- Total system weight: 314.2 kg (294 kg batteries + 20.2 kg BMU)
- Configuration: MAXIMUM single tower (7 modules - cannot add more to this tower)
- Warranty: 10 years standard
Important Compatibility Notice
- IMPORTANT: Not suitable for Solis 3-phase hybrid inverters smaller than 12kW
- Battery system voltage is over 600V (716.8VDC)
- Requires inverters rated for >700V operation
- Suitable for Solis 12kW and larger 3-phase hybrid inverters with appropriate voltage rating
- Verify inverter voltage compatibility before ordering
- Consult inverter specifications for maximum DC input voltage (must support >716.8VDC)
- This is the highest voltage single-tower configuration available
Included Components
- 7 x Pylontech Force H3 5.12kWh High Voltage Battery Modules (PYL-F-H3-BATT) - MAXIMUM per tower
- 1 x Pylontech Force H3 BMU with base and cables (PYL-F-H3-BMU-BASE)
- 1 x Tower Base (540 x 350 x 40 mm)
- 1 x Cable Set (complete wiring for BMU installation)
- 1 x Mount Accessories (mounting hardware)
- 1 x Product Manual (installation and operation guide)
Individual Battery Module Specifications
- Part No: PYL-F-H3-BATT
- Supplier Part No: FH10050 Module
- Product Type: FH10050
- Module capacity: 5.12 kWh (5,100 Wh)
- Module voltage: 102.4 VDC (102 V)
- Module capacity: 50 Ah
- Continuous discharge (normal use): 4,080 W per module
- Maximum discharge (5 minutes): 5,100 W per module
- Surge discharge (15 seconds): 5,100 W per module
- Maximum charge (5 minutes): 5,100 W per module
- Dimensions (W x D x H): 540 x 350 x 170 mm
- Weight per module: 42 kg (39 kg)
BMU (Battery Management Unit) Specifications
- Part No: PYL-F-H3-BMU-BASE
- Supplier Part No: Force-H3 BMS
- Operating voltage range: 172.8 - 921.6 VDC
- Charging/Discharging current: 55 A
- BMU dimensions: 540 x 350 x 150 mm
- Tower base dimensions: 540 x 350 x 40 mm
- Weight: 20.2 kg (12 kg BMU)
- Maximum modules per tower: 6 modules (this system has 7 modules - MAXIMUM configuration)
- Communication protocol: CANBUS/Modbus RTU
- Operating temperature: -10°C to 55°C
- Storage temperature: -20°C to 60°C
- Remote monitoring: Yes, via integrated app
Key Features - Complete Maximum System
- Complete ready-to-install system - batteries plus BMU with all accessories
- MAXIMUM Force H3 single-tower configuration: 7 modules (35.84kWh)
- Latest generation of high-voltage battery storage from Pylontech
- Proven lithium iron phosphate (LiFePO4) technology for safety and longevity
- Modular design: 5.12kWh per module
- Maximum capacity per tower reached - cannot add more modules to this tower
- Scalable: Add up to 5 more towers in parallel (up to 215kWh total capacity with 6 towers)
- 716.8VDC system voltage (7 modules in series) - MAXIMUM single-tower voltage
- Up to 864V system voltage possible with multiple tower configurations
- 1C rating enables fast 35,840W charging and discharging
- Globally certified (UN38.3)
- Designed for 8,000+ charging cycles or 15 years operational life
- 24/7 monitoring via mobile app
- Compatible with leading high-voltage inverter brands (requires >700V capability)
- 10-year standard warranty
Complete System Benefits
- Everything needed for MAXIMUM 35.84kWh single-tower Force H3 installation
- No additional BMU purchase required
- Base, cables, and mounting accessories included
- Ready to install - just add compatible high-voltage inverter
- Ideal for large commercial, industrial, or utility-scale installations
- Maximum single-tower capacity - highest energy density per footprint
- Cannot add more modules to this tower (7 is maximum)
- Future expansion requires additional towers (up to 6 towers total)
- Complete package simplifies ordering and installation
Why Choose This 7-Module Maximum System?
- MAXIMUM 35.84kWh capacity per tower - highest available
- Exceptional power output: 35,840W continuous with 39,424W surge capability
- 716.8VDC voltage - highest single-tower voltage available
- Maximum energy density per tower footprint
- Ideal for applications requiring maximum capacity per installation point
- Convenient single-part-number ordering for complete maximum system
- All components compatible and included
- Ready-to-install solution saves time and reduces errors
- Cost-effective for applications requiring maximum single-tower storage
Scalability Options from This System
- Current configuration: 7 modules = 35.84 kWh @ 716.8VDC (MAXIMUM per tower)
- Cannot add more modules to this tower (7-module maximum reached)
- Add additional towers: Up to 6 towers total = up to 215kWh maximum system capacity (6 towers × 35.84kWh)
- Each additional tower can have 2-7 modules for flexible total system capacity
Advanced Battery Management
- Intelligent BMU ensures proper operation and safety
- Ensures battery modules operate within safe parameters
- Prevents damage from overcharging, deep discharge, or excessive current
- Advanced safety features prevent overcharging and short circuits
- Supports up to 6 battery towers in parallel (this is first tower at maximum capacity)
- Maximises system efficiency and lifespan
- Easy monitoring with LED status indicators
- Multiple communication protocols: CANBUS/Modbus RTU
- High voltage range operation (172.8 - 921.6 VDC) for installation flexibility
- Seamless communication, monitoring, and protection of battery modules
Performance and Longevity
- LiFePO4 technology ensures high efficiency and low self-discharge
- Designed for 8,000+ charging cycles
- 15+ years operational life expectancy
- Fast charging and discharging with 1C rating
- 35,840W continuous power (7-module MAXIMUM system)
- 35,840W maximum power (5 minutes)
- 39,424W surge power (15 seconds)
- 95% depth of discharge for maximum usable capacity
- Superior thermal stability and safety
24/7 Monitoring and Control
- Remote monitoring via integrated mobile app
- Real-time battery status information
- LED status indicators on BMU
- State of charge (SOC) monitoring
- Voltage, current, and temperature monitoring
- Fault detection and diagnostics
- Performance tracking and analytics
- User-friendly interface for system management
Installation Notes
- Complete MAXIMUM capacity system ready for installation
- Tower base provides stable mounting platform for 7 modules (maximum)
- All cables and mounting accessories included
- Product manual provides installation guidance
- 7-module MAXIMUM configuration requires high-voltage inverter (>700V capability)
- NOT suitable for Solis 3-phase hybrid inverters smaller than 12kW
- Professional installation mandatory for very high-voltage system
- Follow manufacturer installation guidelines strictly
- Ensure adequate ventilation around maximum-capacity tower
- Install within specified temperature range (-10°C to 55°C)
- Connect communication cables to compatible high-voltage inverter
- System weight: 314.2 kg - ensure adequate floor support for maximum-capacity installation
- This is the tallest single-tower configuration - ensure adequate ceiling height
Applications
- Large commercial high-voltage energy storage (35.84kWh maximum per tower)
- Industrial battery storage installations (expandable to 215kWh with multiple towers)
- Utility-scale energy storage applications
- Off-grid solar power systems requiring maximum capacity per tower
- Grid-tied commercial solar with extensive battery backup
- Peak shaving and load shifting for large commercial/industrial premises
- Renewable energy integration for large businesses
- Backup power systems for critical commercial/industrial loads
- Large microgrids and community energy storage
- Applications requiring maximum energy density per footprint
Inverter Compatibility
- Requires inverters capable of >700V DC input
- NOT suitable for Solis 3-phase hybrid inverters <12kW
- Suitable for Solis 12kW and larger 3-phase hybrid inverters with appropriate voltage rating
- Compatible with other leading high-voltage inverter brands
- 716.8VDC voltage requires commercial/industrial/utility-scale inverter capabilities
- CANBUS communication protocol widely supported
- Modbus RTU protocol for additional compatibility
- Refer to Pylontech Force H3 compatibility list for specific models
- Always verify inverter maximum DC input voltage supports >716.8VDC before installation
System Compatibility
- Complete Force H3 MAXIMUM single-tower capacity system
- Cannot add more modules to this tower (7-module maximum reached)
- Compatible with Force H3 parallel tower configurations for expansion beyond 35.84kWh
- Part of Pylontech Force H3 ecosystem
- Integrates with Pylontech monitoring and control systems
About PylonTech
PylonTech is a leading manufacturer of lithium battery energy storage systems with over 10 years of expertise. PylonTech specialises in BMS, EMS and system integration, with a wide range of products suitable for domestic micro-grids, commercial energy storage, photovoltaic power plants and base stations. The Force H3 represents the latest generation of high-voltage battery storage technology from this proven manufacturer.
