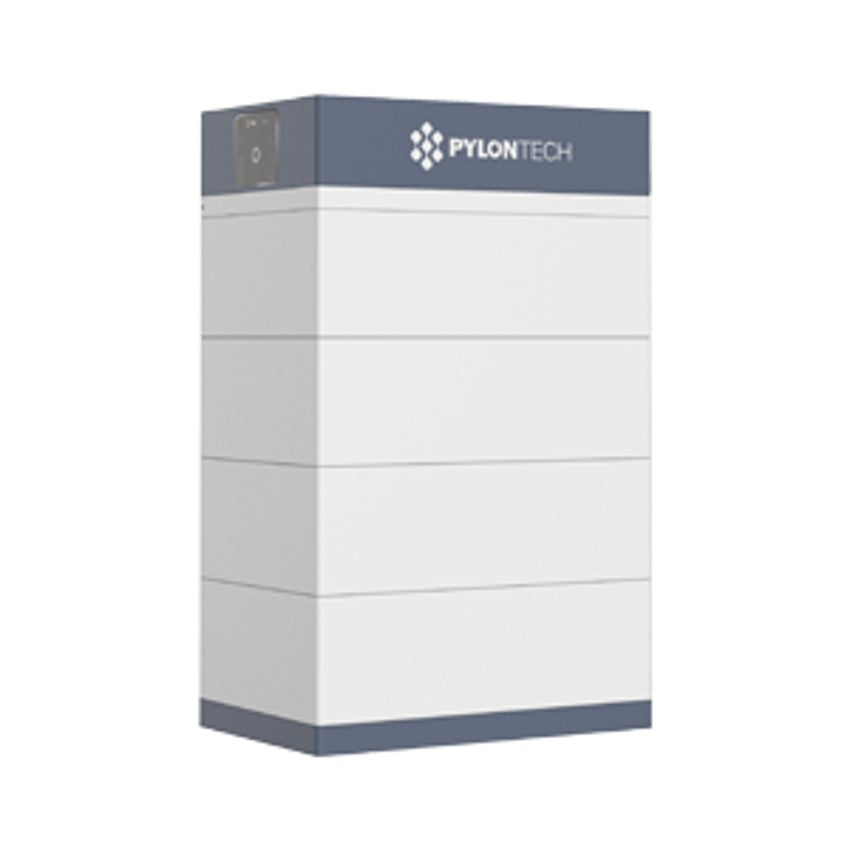

Pylontech Force H3 High Voltage System - Stack of 4 with BMU (20.48kWh Complete System)
This Pylontech Force H3 complete system comprises four 5.12kWh high-voltage battery modules plus Battery Management Unit (BMU) with base and cables, providing a ready-to-install 20.48kWh energy storage solution. Featuring the latest generation of proven lithium iron phosphate (LiFePO4) storage technology, this substantial configuration includes everything needed for a complete single-tower installation with 409.6VDC system voltage, designed for 8,000+ charging cycles or 15 years operational life with 24/7 monitoring via app.
Key Technical Details - Complete System
- Product: Pylontech Force H3 High Voltage System - Stack of 4 with BMU (20.48kWh)
- Part No: PYL-F-H3-BATT-BMU-20.5
- Bundle contains: 4 x PYL-F-H3-BATT + 1 x PYL-F-H3-BMU-BASE
- Total nominal energy: 20,480 Wh (20.48 kWh)
- Battery type: Lithium Ion (LiFePO4)
- Depth of discharge: 95%
- System voltage: 409.6 VDC (409 V - 4 modules in series)
- Continuous discharge rate (normal use): 20,480 W
- Maximum discharge rate (5 minutes): 20,480 W
- Surge discharge rate (15 seconds): 22,528 W
- Maximum charge rate (5 minutes): 20,480 W
- Total system weight: 188.2 kg (168 kg batteries + 20.2 kg BMU)
- Warranty: 10 years standard
Included Components
- 4 x Pylontech Force H3 5.12kWh High Voltage Battery Modules (PYL-F-H3-BATT)
- 1 x Pylontech Force H3 BMU with base and cables (PYL-F-H3-BMU-BASE)
- 1 x Tower Base (540 x 350 x 40 mm)
- 1 x Cable Set (complete wiring for BMU installation)
- 1 x Mount Accessories (mounting hardware)
- 1 x Product Manual (installation and operation guide)
Individual Battery Module Specifications
- Part No: PYL-F-H3-BATT
- Supplier Part No: FH10050 Module
- Product Type: FH10050
- Module capacity: 5.12 kWh (5,100 Wh)
- Module voltage: 102.4 VDC (102 V)
- Module capacity: 50 Ah
- Continuous discharge (normal use): 4,080 W per module
- Maximum discharge (5 minutes): 5,100 W per module
- Surge discharge (15 seconds): 5,100 W per module
- Maximum charge (5 minutes): 5,100 W per module
- Dimensions (W x D x H): 540 x 350 x 170 mm
- Weight per module: 42 kg (39 kg)
BMU (Battery Management Unit) Specifications
- Part No: PYL-F-H3-BMU-BASE
- Supplier Part No: Force-H3 BMS
- Operating voltage range: 172.8 - 921.6 VDC
- Charging/Discharging current: 55 A
- BMU dimensions: 540 x 350 x 150 mm
- Tower base dimensions: 540 x 350 x 40 mm
- Weight: 20.2 kg (12 kg BMU)
- Maximum modules per tower: 6 modules (can expand this system with 2 more modules)
- Communication protocol: CANBUS/Modbus RTU
- Operating temperature: -10°C to 55°C
- Storage temperature: -20°C to 60°C
- Remote monitoring: Yes, via integrated app
Key Features - Complete System
- Complete ready-to-install system - batteries plus BMU with all accessories
- Substantial Force H3 configuration: 4 modules (20.48kWh)
- Latest generation of high-voltage battery storage from Pylontech
- Proven lithium iron phosphate (LiFePO4) technology for safety and longevity
- Modular design: 5.12kWh per module
- Expandable: Add up to 3 more modules to this tower (up to 35.84kWh per tower)
- Scalable: Add up to 5 more towers in parallel (up to 215kWh total capacity)
- 409.6VDC system voltage (4 modules in series)
- Up to 864V system voltage possible with full configuration
- 1C rating enables fast 20,480W charging and discharging
- Globally certified (UN38.3)
- Designed for 8,000+ charging cycles or 15 years operational life
- 24/7 monitoring via mobile app
- Compatible with leading inverter brands and most common inverter manufacturers
- 10-year standard warranty
Complete System Benefits
- Everything needed for substantial 20.48kWh Force H3 installation
- No additional BMU purchase required
- Base, cables, and mounting accessories included
- Ready to install - just add compatible inverter
- Ideal for commercial installations or large residential applications
- Double the capacity of 2-module system
- Start with 20.48kWh and expand up to 35.84kWh on same tower
- Future expansion possible with additional towers (up to 6 towers)
- Complete package simplifies ordering and installation
Why Choose This 4-Module System?
- Substantial 20.48kWh capacity for commercial or large residential needs
- High power output: 20,480W continuous with 22,528W surge capability
- 409.6VDC voltage optimal for many commercial high-voltage inverters
- Room to expand with 3 more modules to reach maximum tower capacity
- Convenient single-part-number ordering for complete system
- All components compatible and included
- Ready-to-install solution saves time and reduces errors
- Cost-effective for applications requiring substantial storage
Scalability Options from This System
- Current configuration: 4 modules = 20.48 kWh @ 409.6VDC
- Add 1 module: 5 modules = 25.6 kWh @ 512VDC
- Add 2 modules: 6 modules = 30.72 kWh @ 614.4VDC
- Add 3 modules: 7 modules = 35.84 kWh @ 716.8VDC (maximum per tower)
- Add additional towers: Up to 6 towers total = up to 215kWh maximum system capacity
Advanced Battery Management
- Intelligent BMU ensures proper operation and safety
- Ensures battery modules operate within safe parameters
- Prevents damage from overcharging, deep discharge, or excessive current
- Advanced safety features prevent overcharging and short circuits
- Supports up to 6 battery towers in parallel (this is first tower)
- Maximises system efficiency and lifespan
- Easy monitoring with LED status indicators
- Multiple communication protocols: CANBUS/Modbus RTU
- High voltage range operation (172.8 - 921.6 VDC) for installation flexibility
- Seamless communication, monitoring, and protection of battery modules
Performance and Longevity
- LiFePO4 technology ensures high efficiency and low self-discharge
- Designed for 8,000+ charging cycles
- 15+ years operational life expectancy
- Fast charging and discharging with 1C rating
- 20,480W continuous power (4-module system)
- 20,480W maximum power (5 minutes)
- 22,528W surge power (15 seconds)
- 95% depth of discharge for maximum usable capacity
- Superior thermal stability and safety
24/7 Monitoring and Control
- Remote monitoring via integrated mobile app
- Real-time battery status information
- LED status indicators on BMU
- State of charge (SOC) monitoring
- Voltage, current, and temperature monitoring
- Fault detection and diagnostics
- Performance tracking and analytics
- User-friendly interface for system management
Installation Notes
- Complete system ready for installation
- Tower base provides stable mounting platform for 4 modules
- All cables and mounting accessories included
- Product manual provides installation guidance
- 4-module configuration ideal for commercial and large residential applications
- Professional installation recommended
- Follow manufacturer installation guidelines
- Ensure adequate ventilation around tower
- Install within specified temperature range (-10°C to 55°C)
- Connect communication cables to compatible inverter
- System weight: 188.2 kg - ensure adequate floor support for substantial installation
Applications
- Commercial high-voltage energy storage (20.48kWh)
- Large residential battery storage installations (expandable to 215kWh)
- Industrial energy storage applications
- Off-grid solar power systems requiring substantial capacity
- Grid-tied commercial solar with significant battery backup
- Peak shaving and load shifting for commercial premises
- Renewable energy integration for businesses
- Backup power systems for critical commercial loads
- Microgrids and community energy storage
Inverter Compatibility
- Versatile use with most common inverter manufacturers
- Compatible with leading inverter brands
- 409.6VDC voltage compatible with commercial high-voltage inverters
- CANBUS communication protocol widely supported
- Modbus RTU protocol for additional compatibility
- Refer to Pylontech Force H3 compatibility list for specific models
- High-voltage compatibility (204VDC to 864VDC system range)
System Compatibility
- Complete Force H3 substantial-capacity system
- Compatible with additional Force H3 battery modules for tower expansion
- Compatible with Force H3 parallel tower configurations
- Part of Pylontech Force H3 ecosystem
- Integrates with Pylontech monitoring and control systems
About PylonTech
PylonTech is a leading manufacturer of lithium battery energy storage systems with over 10 years of expertise. PylonTech specialises in BMS, EMS and system integration, with a wide range of products suitable for domestic micro-grids, commercial energy storage, photovoltaic power plants and base stations. The Force H3 represents the latest generation of high-voltage battery storage technology from this proven manufacturer.
About DECO Group
We supply Pylontech Force H3 complete battery systems and high-voltage energy storage components to professional installers throughout the UK. Our technical support covers Pylontech Force H3 installations including complete 20.48kWh system bundle with 4 x 5.12kWh 102.4VDC 50Ah lithium iron phosphate (LiFePO4) battery modules (168kg total) plus Battery Management Unit with base and cables (20.2kg), tower base (540 x 350 x 40mm), complete cable set, mounting accessories, and product manual (188.2kg total system weight), substantial 4-module Force H3 configuration providing 409.6VDC system voltage ideal for commercial and large residential applications, proven latest-generation LiFePO4 technology expandable from 20.48kWh to 35.84kWh per tower (add up to 3 more modules) and up to 215kWh total capacity with 6 towers in parallel, 1C rating enabling fast 20,480W continuous charging/discharging with 22,528W surge capability, globally certified UN38.3 safety compliance, designed for >8,000 charging cycles or 15+ year operational life, 24/7 monitoring via integrated mobile app with LED status indicators, CANBUS/Modbus RTU communication protocols for versatile inverter compatibility with leading brands, BMU operating voltage range 172.8-921.6 VDC supporting expansion flexibility, 10-year standard warranty, and professional installation procedures for commercial, large residential, and industrial high-voltage energy storage applications requiring complete ready-to-install substantial-capacity scalable systems with all necessary components included for simplified ordering and installation.
