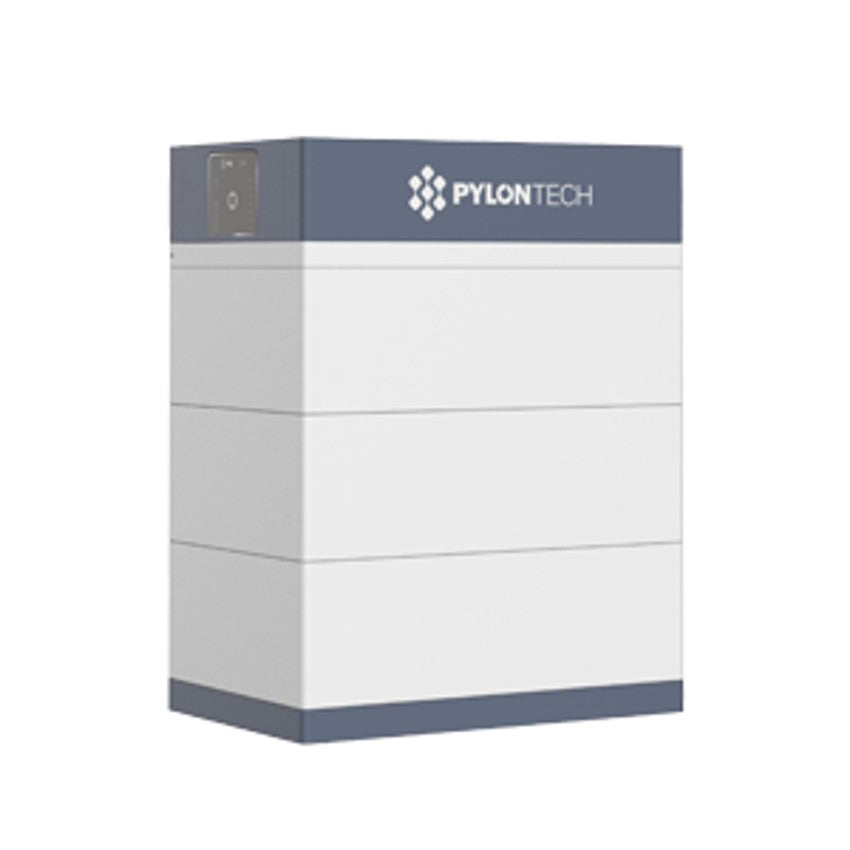

Pylontech Force H3 High Voltage System - Stack of 3 with BMU (15.36kWh Complete System)
This Pylontech Force H3 complete system comprises three 5.12kWh high-voltage battery modules plus Battery Management Unit (BMU) with base and cables, providing a ready-to-install 15.36kWh energy storage solution. Featuring the latest generation of proven lithium iron phosphate (LiFePO4) storage technology, this mid-range configuration includes everything needed for a complete single-tower installation with 307.2VDC system voltage, designed for 8,000+ charging cycles or 15 years operational life with 24/7 monitoring via app.
Key Technical Details - Complete System
- Product: Pylontech Force H3 High Voltage System - Stack of 3 with BMU (15.36kWh)
- Part No: PYL-F-H3-BATT-BMU-15.4
- Bundle contains: 3 x PYL-F-H3-BATT + 1 x PYL-F-H3-BMU-BASE
- Total nominal energy: 15,360 Wh (15.36 kWh)
- Battery type: Lithium Ion (LiFePO4)
- Depth of discharge: 95%
- System voltage: 307.2 VDC (307 V - 3 modules in series)
- Continuous discharge rate (normal use): 15,360 W
- Maximum discharge rate (5 minutes): 15,360 W
- Surge discharge rate (15 seconds): 16,896 W
- Maximum charge rate (5 minutes): 15,360 W
- Total system weight: 146.2 kg (126 kg batteries + 20.2 kg BMU)
- Warranty: 10 years standard
Included Components
- 3 x Pylontech Force H3 5.12kWh High Voltage Battery Modules (PYL-F-H3-BATT)
- 1 x Pylontech Force H3 BMU with base and cables (PYL-F-H3-BMU-BASE)
- 1 x Tower Base (540 x 350 x 40 mm)
- 1 x Cable Set (complete wiring for BMU installation)
- 1 x Mount Accessories (mounting hardware)
- 1 x Product Manual (installation and operation guide)
Individual Battery Module Specifications
- Part No: PYL-F-H3-BATT
- Supplier Part No: FH10050 Module
- Product Type: FH10050
- Module capacity: 5.12 kWh (5,100 Wh)
- Module voltage: 102.4 VDC (102 V)
- Module capacity: 50 Ah
- Continuous discharge (normal use): 4,080 W per module
- Maximum discharge (5 minutes): 5,100 W per module
- Surge discharge (15 seconds): 5,100 W per module
- Maximum charge (5 minutes): 5,100 W per module
- Dimensions (W x D x H): 540 x 350 x 170 mm
- Weight per module: 42 kg (39 kg)
BMU (Battery Management Unit) Specifications
- Part No: PYL-F-H3-BMU-BASE
- Supplier Part No: Force-H3 BMS
- Operating voltage range: 172.8 - 921.6 VDC
- Charging/Discharging current: 55 A
- BMU dimensions: 540 x 350 x 150 mm
- Tower base dimensions: 540 x 350 x 40 mm
- Weight: 20.2 kg (12 kg BMU)
- Maximum modules per tower: 6 modules (can expand this system with 3 more modules)
- Communication protocol: CANBUS/Modbus RTU
- Operating temperature: -10°C to 55°C
- Storage temperature: -20°C to 60°C
- Remote monitoring: Yes, via integrated app
Key Features - Complete System
- Complete ready-to-install system - batteries plus BMU with all accessories
- Mid-range Force H3 configuration: 3 modules (15.36kWh)
- Latest generation of high-voltage battery storage from Pylontech
- Proven lithium iron phosphate (LiFePO4) technology for safety and longevity
- Modular design: 5.12kWh per module
- Expandable: Add up to 4 more modules to this tower (up to 35.84kWh per tower)
- Scalable: Add up to 5 more towers in parallel (up to 215kWh total capacity)
- 307.2VDC system voltage (3 modules in series)
- Up to 864V system voltage possible with full configuration
- 1C rating enables fast 15,360W charging and discharging
- Globally certified (UN38.3)
- Designed for 8,000+ charging cycles or 15 years operational life
- 24/7 monitoring via mobile app
- Compatible with leading inverter brands and most common inverter manufacturers
- 10-year standard warranty
Complete System Benefits
- Everything needed for 15.36kWh Force H3 installation
- No additional BMU purchase required
- Base, cables, and mounting accessories included
- Ready to install - just add compatible inverter
- Ideal mid-range capacity for larger residential or small commercial applications
- 50% more capacity than 2-module system
- Start with 15.36kWh and expand up to 35.84kWh on same tower
- Future expansion possible with additional towers (up to 6 towers)
- Complete package simplifies ordering and installation
Why Choose This 3-Module System?
- Optimal balance between capacity and expandability
- 15.36kWh suitable for larger homes or small commercial installations
- Higher power output: 15,360W continuous (vs 10,200W for 2-module system)
- 307.2VDC voltage ideal for many high-voltage inverters
- Room to expand with 4 more modules if needed
- Convenient single-part-number ordering for complete system
- All components compatible and included
- Ready-to-install solution saves time and reduces errors
Scalability Options from This System
- Current configuration: 3 modules = 15.36 kWh @ 307.2VDC
- Add 1 module: 4 modules = 20.48 kWh @ 409.6VDC
- Add 2 modules: 5 modules = 25.6 kWh @ 512VDC
- Add 3 modules: 6 modules = 30.72 kWh @ 614.4VDC
- Add 4 modules: 7 modules = 35.84 kWh @ 716.8VDC (maximum per tower)
- Add additional towers: Up to 6 towers total = up to 215kWh maximum system capacity
Advanced Battery Management
- Intelligent BMU ensures proper operation and safety
- Ensures battery modules operate within safe parameters
- Prevents damage from overcharging, deep discharge, or excessive current
- Advanced safety features prevent overcharging and short circuits
- Supports up to 6 battery towers in parallel (this is first tower)
- Maximises system efficiency and lifespan
- Easy monitoring with LED status indicators
- Multiple communication protocols: CANBUS/Modbus RTU
- High voltage range operation (172.8 - 921.6 VDC) for installation flexibility
- Seamless communication, monitoring, and protection of battery modules
Performance and Longevity
- LiFePO4 technology ensures high efficiency and low self-discharge
- Designed for 8,000+ charging cycles
- 15+ years operational life expectancy
- Fast charging and discharging with 1C rating
- 15,360W continuous power (3-module system)
- 15,360W maximum power (5 minutes)
- 16,896W surge power (15 seconds)
- 95% depth of discharge for maximum usable capacity
- Superior thermal stability and safety
24/7 Monitoring and Control
- Remote monitoring via integrated mobile app
- Real-time battery status information
- LED status indicators on BMU
- State of charge (SOC) monitoring
- Voltage, current, and temperature monitoring
- Fault detection and diagnostics
- Performance tracking and analytics
- User-friendly interface for system management
Installation Notes
- Complete system ready for installation
- Tower base provides stable mounting platform for 3 modules
- All cables and mounting accessories included
- Product manual provides installation guidance
- 3-module configuration ideal for many residential/small commercial applications
- Professional installation recommended
- Follow manufacturer installation guidelines
- Ensure adequate ventilation around tower
- Install within specified temperature range (-10°C to 55°C)
- Connect communication cables to compatible inverter
- System weight: 146.2 kg - ensure adequate floor support
Applications
- Larger residential high-voltage energy storage (15.36kWh)
- Small commercial battery storage installations (expandable to 215kWh)
- Industrial energy storage applications
- Off-grid solar power systems requiring higher capacity
- Grid-tied solar with substantial battery backup
- Peak shaving and load shifting for commercial premises
- Renewable energy integration
- Backup power systems for critical loads
- Microgrids and community energy storage
Inverter Compatibility
- Versatile use with most common inverter manufacturers
- Compatible with leading inverter brands
- 307.2VDC voltage compatible with many high-voltage inverters
- CANBUS communication protocol widely supported
- Modbus RTU protocol for additional compatibility
- Refer to Pylontech Force H3 compatibility list for specific models
- High-voltage compatibility (204VDC to 864VDC system range)
System Compatibility
- Complete Force H3 mid-range system
- Compatible with additional Force H3 battery modules for tower expansion
- Compatible with Force H3 parallel tower configurations
- Part of Pylontech Force H3 ecosystem
- Integrates with Pylontech monitoring and control systems
About PylonTech
PylonTech is a leading manufacturer of lithium battery energy storage systems with over 10 years of expertise. PylonTech specialises in BMS, EMS and system integration, with a wide range of products suitable for domestic micro-grids, commercial energy storage, photovoltaic power plants and base stations. The Force H3 represents the latest generation of high-voltage battery storage technology from this proven manufacturer.
