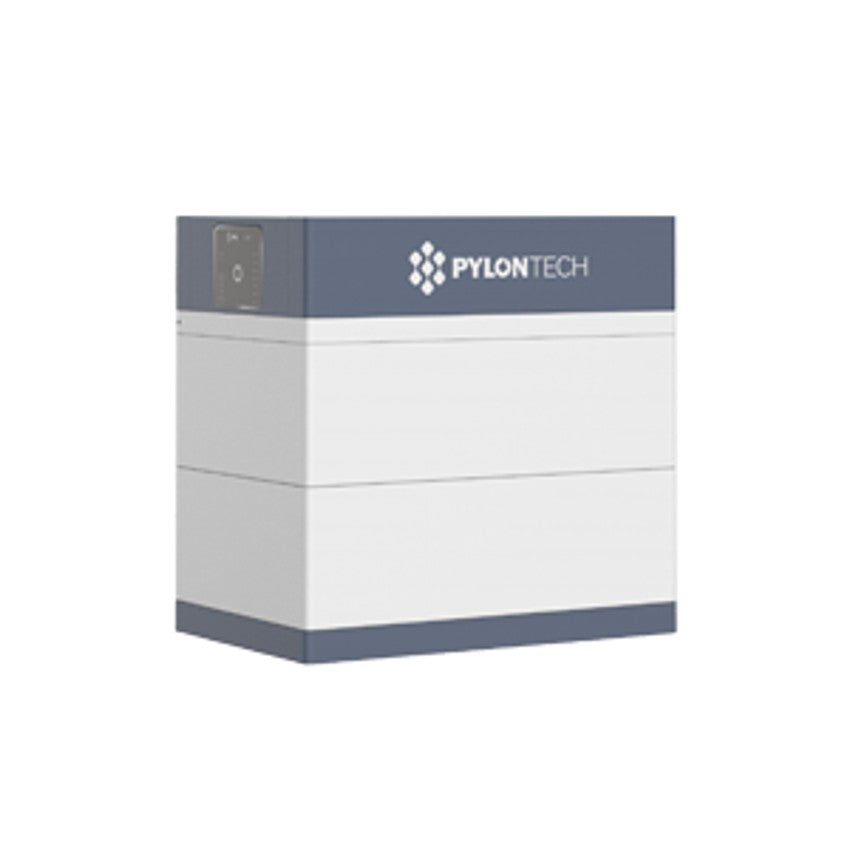

Pylontech Force H3 High Voltage System - Stack of 2 with BMU (10.24kWh Complete System)
This Pylontech Force H3 complete system comprises two 5.12kWh high-voltage battery modules plus Battery Management Unit (BMU) with base and cables, providing a ready-to-install 10.24kWh energy storage solution. Featuring the latest generation of proven lithium iron phosphate (LiFePO4) storage technology, this minimum-configuration system includes everything needed for a complete single-tower installation with 204VDC system voltage, designed for 8,000+ charging cycles or 15 years operational life with 24/7 monitoring via app.
Key Technical Details - Complete System
- Product: Pylontech Force H3 High Voltage System - Stack of 2 with BMU (10.24kWh)
- Part No: PYL-F-H3-BATT-BMU-10.2
- Bundle contains: 2 x PYL-F-H3-BATT + 1 x PYL-F-H3-BMU-BASE
- Total nominal energy: 10,200 Wh (10.24 kWh actual capacity)
- Battery type: Lithium Ion (LiFePO4)
- Depth of discharge: 95%
- System voltage: 204 VDC (2 modules in series)
- Continuous discharge rate (normal use): 10,200 W
- Maximum discharge rate (5 minutes): 10,200 W
- Surge discharge rate (15 seconds): 10,608 W
- Maximum charge rate (5 minutes): 10,200 W
- Total system weight: 104.2 kg (84 kg batteries + 20.2 kg BMU)
- Warranty: 10 years standard
Included Components
- 2 x Pylontech Force H3 5.12kWh High Voltage Battery Modules (PYL-F-H3-BATT)
- 1 x Pylontech Force H3 BMU with base and cables (PYL-F-H3-BMU-BASE)
- 1 x Tower Base (540 x 350 x 40 mm)
- 1 x Cable Set (complete wiring for BMU installation)
- 1 x Mount Accessories (mounting hardware)
- 1 x Product Manual (installation and operation guide)
Individual Battery Module Specifications
- Part No: PYL-F-H3-BATT
- Supplier Part No: FH10050 Module
- Product Type: FH10050
- Module capacity: 5.12 kWh (5,100 Wh)
- Module voltage: 102.4 VDC (102 V)
- Module capacity: 50 Ah
- Continuous discharge (normal use): 4,080 W per module
- Maximum discharge (5 minutes): 5,100 W per module
- Surge discharge (15 seconds): 5,100 W per module
- Maximum charge (5 minutes): 5,100 W per module
- Dimensions (W x D x H): 540 x 350 x 170 mm
- Weight per module: 42 kg (39 kg)
BMU (Battery Management Unit) Specifications
- Part No: PYL-F-H3-BMU-BASE
- Supplier Part No: Force-H3 BMS
- Operating voltage range: 172.8 - 921.6 VDC
- Charging/Discharging current: 55 A
- BMU dimensions: 540 x 350 x 150 mm
- Tower base dimensions: 540 x 350 x 40 mm
- Weight: 20.2 kg (12 kg BMU)
- Maximum modules per tower: 6 modules
- Communication protocol: CANBUS/Modbus RTU
- Operating temperature: -10°C to 55°C
- Storage temperature: -20°C to 60°C
- Remote monitoring: Yes, via integrated app
Key Features - Complete System
- Complete ready-to-install system - batteries plus BMU with all accessories
- Minimum Force H3 configuration: 2 modules (10.24kWh)
- Latest generation of high-voltage battery storage from Pylontech
- Proven lithium iron phosphate (LiFePO4) technology for safety and longevity
- Modular design: 5.12kWh per module
- Expandable: Add up to 5 more modules to this tower (up to 35.8kWh per tower)
- Scalable: Add up to 5 more towers in parallel (up to 215kWh total capacity)
- 204VDC system voltage (2 modules in series)
- Up to 864V system voltage possible with full configuration
- 1C rating enables fast 10,200W charging and discharging
- Globally certified (UN38.3)
- Designed for 8,000+ charging cycles or 15 years operational life
- 24/7 monitoring via mobile app
- Compatible with leading inverter brands and most common inverter manufacturers
- 10-year standard warranty
Complete System Benefits
- Everything needed for single-tower Force H3 installation
- No additional BMU purchase required
- Base, cables, and mounting accessories included
- Ready to install - just add compatible inverter
- Minimum viable Force H3 system (2 modules minimum required)
- Start with 10.24kWh and expand up to 35.8kWh on same tower
- Future expansion possible with additional towers (up to 6 towers)
- Complete package simplifies ordering and installation
Why Choose This Complete System?
- Convenient single-part-number ordering for complete system
- Ensures all components are compatible and included
- Eliminates need to separately source BMU and batteries
- Complete tower base and cabling included
- Ready-to-install solution saves time and reduces errors
- Perfect starter system for Force H3 installations
- Expandable architecture for future growth
Scalability Options from This System
- Current configuration: 2 modules = 10.24 kWh @ 204VDC
- Add 1 module: 3 modules = 15.36 kWh @ 307.2VDC
- Add 2 modules: 4 modules = 20.48 kWh @ 409.6VDC
- Add 3 modules: 5 modules = 25.6 kWh @ 512VDC
- Add 4 modules: 6 modules = 30.72 kWh @ 614.4VDC
- Add 5 modules: 7 modules = 35.84 kWh @ 716.8VDC (maximum per tower)
- Add additional towers: Up to 6 towers total = up to 215kWh maximum system capacity
Advanced Battery Management
- Intelligent BMU ensures proper operation and safety
- Ensures battery modules operate within safe parameters
- Prevents damage from overcharging, deep discharge, or excessive current
- Advanced safety features prevent overcharging and short circuits
- Supports up to 6 battery towers in parallel (this is first tower)
- Maximises system efficiency and lifespan
- Easy monitoring with LED status indicators
- Multiple communication protocols: CANBUS/Modbus RTU
- High voltage range operation (172.8 - 921.6 VDC) for installation flexibility
- Seamless communication, monitoring, and protection of battery modules
Performance and Longevity
- LiFePO4 technology ensures high efficiency and low self-discharge
- Designed for 8,000+ charging cycles
- 15+ years operational life expectancy
- Fast charging and discharging with 1C rating
- 10,200W continuous power (2-module system)
- 10,200W maximum power (5 minutes)
- 10,608W surge power (15 seconds)
- 95% depth of discharge for maximum usable capacity
- Superior thermal stability and safety
24/7 Monitoring and Control
- Remote monitoring via integrated mobile app
- Real-time battery status information
- LED status indicators on BMU
- State of charge (SOC) monitoring
- Voltage, current, and temperature monitoring
- Fault detection and diagnostics
- Performance tracking and analytics
- User-friendly interface for system management
Installation Notes
- Complete system ready for installation
- Tower base provides stable mounting platform
- All cables and mounting accessories included
- Product manual provides installation guidance
- Minimum 2 modules required - this system meets minimum
- Professional installation recommended
- Follow manufacturer installation guidelines
- Ensure adequate ventilation around tower
- Install within specified temperature range (-10°C to 55°C)
- Connect communication cables to compatible inverter
- System weight: 104.2 kg - ensure adequate floor support
Applications
- Residential high-voltage energy storage (10.24kWh starter system)
- Commercial battery storage installations (expandable to 215kWh)
- Industrial energy storage applications
- Off-grid solar power systems
- Grid-tied solar with battery backup
- Peak shaving and load shifting
- Renewable energy integration
- Backup power systems
- Microgrids and community energy storage
Inverter Compatibility
- Versatile use with most common inverter manufacturers
- Compatible with leading inverter brands
- CANBUS communication protocol widely supported
- Modbus RTU protocol for additional compatibility
- Refer to Pylontech Force H3 compatibility list for specific models
- High-voltage compatibility (204VDC to 864VDC system range)
System Compatibility
- Complete Force H3 starter system
- Compatible with additional Force H3 battery modules for tower expansion
- Compatible with Force H3 parallel tower configurations
- Part of Pylontech Force H3 ecosystem
- Integrates with Pylontech monitoring and control systems
About PylonTech
PylonTech is a leading manufacturer of lithium battery energy storage systems with over 10 years of expertise. PylonTech specialises in BMS, EMS and system integration, with a wide range of products suitable for domestic micro-grids, commercial energy storage, photovoltaic power plants and base stations. The Force H3 represents the latest generation of high-voltage battery storage technology from this proven manufacturer.
