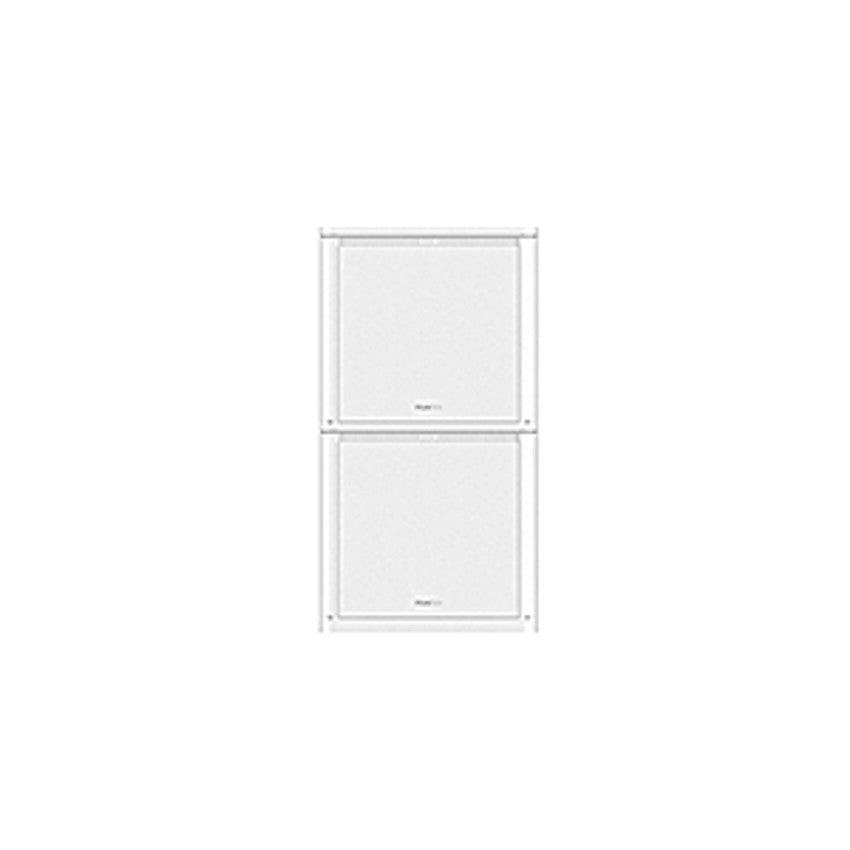

Pylontech Pelio-L-5.12 LV x2 Battery Module Bundle - 10.24kWh Total Capacity
This Pylontech Pelio-L-5.12 LV bundle comprises two 5.12kWh battery modules providing a total of 10.24kWh energy storage capacity. Featuring expandable modular design with high energy density cells for lightweight but high-capacity storage, these indoor/outdoor compatible batteries offer a smaller footprint to save valuable space. Secured by self-developed cells, modules and BMS with dual active protection mechanism, this bundle is designed for 15+ years or >8,000 charging cycles with compatibility for Solis low voltage hybrid/AC inverters.
Key Technical Details - Complete Bundle (2 Modules)
- Product: Pylontech Pelio-L-5.12 LV x2 Battery Module Bundle - 10.24kWh
- Part No: PYL-PELIO-L-2-10.24
- Bundle contains: 2 x PYL-PELIO-L-5.12
- Total nominal energy: 10,240 Wh (10.24 kWh)
- Total weight: 90 kg (45 kg per module)
- Rated power: 10,240 W
- Battery type: Lithium Ion (LiFePO4)
- Depth of discharge: 95%
- Voltage: 51 V
- Continuous discharge rate (normal use): 4,096 W
- Maximum discharge rate (5 minutes): 5,120 W
- Surge discharge rate (15 seconds): 6,144 W
- Maximum charge rate (5 minutes): 5,120 W
- Warranty: 10 years standard
Individual Battery Module (PYL-PELIO-L-5.12) - Technical Details
- Part No: PYL-PELIO-L-5.12
- Supplier Part No: 11RAYBWZZZA-00004
- Battery type: Lithium Ion (LiFePO4)
- Nominal energy: 5,120 Wh (5.12 kWh)
- Depth of discharge: 95%
- Voltage: 51 V
- Continuous discharge rate (normal use): 4,096 W
- Maximum discharge rate (5 minutes): 5,120 W
- Surge discharge rate (15 seconds): 6,144 W
- Maximum charge rate (5 minutes): 5,120 W
- Weight: 45 kg per module
- Warranty: 10 years standard
Key Features
- Expandable modular design, up to 20 × 5.12kWh in parallel (102.4kWh maximum)
- 3-module stack maximum for wall mounting (15.36kWh)
- 4-module stack maximum for ground mounting (20.48kWh)
- High energy density cells make for lightweight but high capacity batteries
- Smaller footprint saves valuable space
- Indoor/outdoor compatible installation flexibility
- Secured by self-developed cells, modules and BMS
- Dual active protection mechanism enhances safety significantly
- Designed for 15+ years operational life
- Designed for >8,000 charging cycles
- Compatible with Solis low voltage hybrid/AC inverters
- Remote monitoring via plug-in WiFi module (supplied with installation kit, not with battery)
- 95% depth of discharge for maximum usable capacity
Scalability and Expansion
- This bundle: 2 modules = 10.24kWh
- Maximum wall mounting: 3 modules = 15.36kWh
- Maximum ground mounting: 4 modules = 20.48kWh
- Maximum parallel system: 20 modules = 102.4kWh
- Each module adds 5.12kWh capacity
- Flexible expansion as energy needs grow
- Start with 2-module bundle and expand later
High Energy Density Design
- High energy density cells for lightweight construction
- 45 kg per module despite 5.12kWh capacity
- Smaller footprint compared to traditional battery designs
- Space-efficient installation for limited areas
- Lightweight design simplifies installation and handling
- Professional appearance for residential/commercial settings
Indoor/Outdoor Compatibility
- Suitable for indoor installations
- Suitable for outdoor installations
- Weather-resistant construction for outdoor use
- Flexible placement options maximize installation possibilities
- Saves valuable indoor space when outdoor installation preferred
Dual Active Protection Mechanism
- Dual protection enhances safety significantly
- Self-developed BMS technology
- Active monitoring and protection systems
- Cell-level protection and balancing
- Temperature monitoring and thermal management
- Overcharge and over-discharge protection
- Current limiting and short circuit protection
- Enhanced safety features for residential installations
Performance Specifications
- 51V nominal voltage for low-voltage systems
- 95% depth of discharge maximizes usable capacity
- Continuous power: 4,096W per module (8,192W for 2-module bundle)
- Maximum power (5 minutes): 5,120W per module (10,240W bundle)
- Surge power (15 seconds): 6,144W per module (12,288W bundle)
- High charge/discharge rates for efficient energy transfer
- Excellent performance across temperature ranges
Remote Monitoring
- Remote monitoring of battery system via plug-in WiFi module
- WiFi module supplied with installation kit (not with battery itself)
- Real-time battery status monitoring
- State of charge tracking
- Performance analytics and reporting
- Remote access for system management
- User-friendly monitoring interface
Required Installation Packages
- IMPORTANT: Installation package required (sold separately)
- For wall mounting (1 to 3 batteries): PYL-PELIO-WALL-MOUNT (Wall-Mounted Installation Package)
- For ground mounting (1 to 4 batteries): PYL-PELIO-GROUND-MOUNT (Ground-Mounted Installation Package)
- Installation package includes mounting hardware, cables, and WiFi module
- Choose appropriate package based on mounting preference and number of modules
- This 2-module bundle can use either wall or ground mount package
Inverter Compatibility
- Compatible with Solis low voltage hybrid inverters
- Compatible with Solis AC inverters
- Refer to attached Solis compatibility document for specific models
- 51V low-voltage system for residential compatibility
- Easy integration with compatible inverter systems
Longevity and Reliability
- Designed for 15+ years operational life
- Designed for >8,000 charging cycles
- 10-year standard warranty
- Self-developed cells ensure quality control
- Self-developed modules for reliable performance
- Self-developed BMS technology
- Long-term reliability for excellent return on investment
Installation Notes
- Installation package (wall or ground mount) REQUIRED - sold separately
- Wall mount package suitable for 1-3 modules (this bundle can use wall mount)
- Ground mount package suitable for 1-4 modules (this bundle can use ground mount)
- WiFi module for remote monitoring included in installation package, not battery
- Professional installation recommended
- Follow manufacturer installation guidelines
- Ensure adequate ventilation around batteries
- Can be installed indoors or outdoors based on preference
- 2-module bundle total weight: 90kg - ensure adequate support
Applications
- Residential energy storage systems (10.24kWh with 2 modules)
- Commercial battery storage installations (expandable to 102.4kWh)
- Indoor or outdoor battery installations
- Grid-tied solar with battery backup
- Off-grid solar power systems
- Peak shaving and load shifting
- Backup power for homes and businesses
- Space-constrained installations requiring compact design
Bundle Benefits
- Pre-packaged 2-module solution for 10.24kWh capacity
- Convenient ordering - both modules in single part number
- Ready to expand to 3 modules (wall mount) or 4 modules (ground mount)
- Cost-effective entry point for Pelio-L system
- Sufficient capacity for typical residential needs
- Expandable as energy requirements grow
System Compatibility
- Part of Pylontech Pelio-L low-voltage battery ecosystem
- Compatible with Pelio wall mount installation package
- Compatible with Pelio ground mount installation package
- Works with Solis low voltage hybrid/AC inverters
- Integrates with Pylontech monitoring solutions
