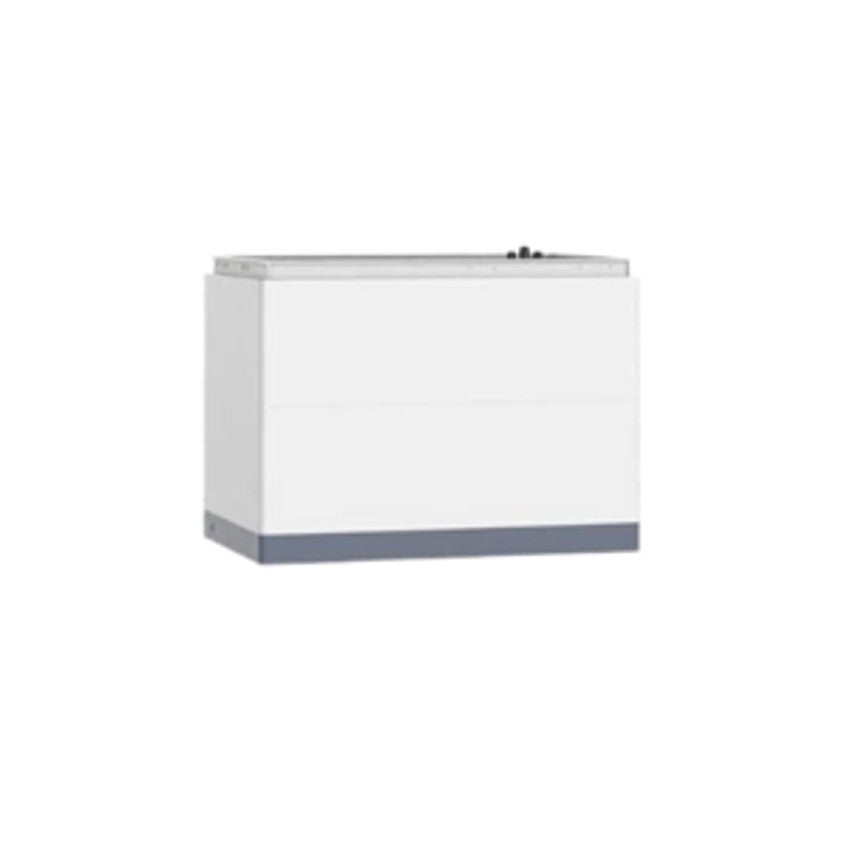

PylonTech Force H3 FH10050 5.12kWh High Voltage Lithium-Ion Battery Module
The PylonTech Force H3 is a cutting-edge high-voltage lithium iron phosphate (LiFePO4) battery designed for efficient solar energy storage solutions. Featuring the latest generation of high-voltage battery storage technology from Pylontech, this 5.12kWh module provides proven LiFePO4 storage with advanced modular structure offering scalability from 10.24kWh to 215kWh total capacity, making it a flexible choice for residential, commercial, and industrial applications.
Key Technical Details
- Product: PylonTech Force H3 FH10050 5.12kWh High Voltage Battery Module
- Part No: PYL-F-H3-BATT
- Supplier Part No: FH10050 Module
- Product Type: FH10050
- Cell Technology: Li-ion (LFP) - Lithium Iron Phosphate
- Battery Module Capacity: 5.12 kWh (5,100 Wh)
- Battery Module Voltage: 102.4 VDC (102 V)
- Battery Module Capacity: 50 Ah
- Depth of Discharge: 90%
- Continuous Discharge Rate (Normal Use): 4,080 W
- Maximum Discharge Rate (5 Minutes): 5,100 W
- Surge Discharge Rate (15 Seconds): 5,100 W
- Maximum Charge Rate (5 Minutes): 5,100 W
- Dimensions (W x D x H): 540 x 350 x 170 mm
- Weight: 39 kg (42 kg)
- Operating Temperature: -10°C to 55°C
- Storage Temperature: -20°C to 60°C
- Cycle Life: >8,000 cycles
- Operation Life: 15+ years
- Certification: UN38.3, Globally certified
- Warranty: 10 years standard
Key Features
- Latest LiFePO4 battery technology for safety and longevity
- Proven lithium iron phosphate storage technology from Pylontech
- Modular design: 5.12kWh per module for flexible scalability
- Flexibly configurable from 10.24kWh to 35.8kWh per tower (2 to 7 battery modules)
- Parallel capability for up to 6 battery towers
- Total capacity of up to 215kWh (6 towers maximum)
- Up to 864V system voltage for high-power applications
- 1C rating enables fast charging and discharging
- Designed for 8000+ charging cycles or over 15 years lifespan
- 24/7 monitoring via mobile app
- Compatible with leading inverter brands and most common inverter manufacturers
- Globally certified for international use
- 10-year standard warranty
Why Choose PylonTech Force H3?
- Leading solution for reliable, scalable, and high-performance solar energy storage
- High-voltage capacity with advanced safety features
- Ensures energy efficiency and sustainability
- Latest generation technology from proven manufacturer
- Exceptional flexibility with modular architecture
- Long lifespan (15+ years) provides excellent return on investment
- Fast charging/discharging with 1C rating
- Comprehensive monitoring and control via app
Scalability and System Configuration
- Minimum configuration: 2 modules per tower = 10.24 kWh @ 204.8 VDC
- Maximum per tower: 7 modules = 35.8 kWh @ 716.8 VDC
- Maximum system: 6 towers in parallel = up to 215 kWh total capacity
- System voltage: Up to 864 VDC
- Each module adds 5.12 kWh capacity and 102.4 V (when series connected)
- Flexible module count: 2, 3, 4, 5, 6, or 7 modules per tower
- Scale capacity by adding modules to tower
- Scale power by adding towers in parallel (up to 6 towers)
Advanced LiFePO4 Technology
- Proven lithium iron phosphate chemistry for enhanced safety
- Superior thermal stability compared to other lithium chemistries
- Lower risk of thermal runaway
- Extended cycle life: >8,000 cycles
- Environmentally friendly chemistry
- Excellent performance across wide temperature range
- High efficiency charging and discharging
- Long calendar life: 15+ years
Performance Specifications
- Module voltage: 102.4 VDC (high-voltage module)
- Module capacity: 50 Ah
- Module energy: 5.12 kWh (5,100 Wh)
- Depth of discharge: 90%
- Continuous power: 4,080 W normal use
- Maximum power (5 minutes): 5,100 W
- Surge power (15 seconds): 5,100 W
- 1C charge/discharge rating for fast energy transfer
- High efficiency operation
24/7 Monitoring and Control
- Mobile app for continuous monitoring
- Real-time battery status information
- State of charge (SOC) monitoring
- Voltage, current, and temperature monitoring
- Remote access and control capabilities
- Fault detection and diagnostics
- Performance tracking and analytics
- User-friendly interface for system management
Compact Modular Design
- Dimensions: 540 x 350 x 170 mm (W x D x H)
- Compact footprint for efficient space utilization
- Weight: 39-42 kg per module
- Stackable design for tower configurations
- Professional appearance for commercial installations
- Modular architecture enables flexible installation
Safety and Reliability
- LiFePO4 chemistry provides inherent safety advantages
- Battery Management System (BMS) protection
- Temperature monitoring and thermal management
- Overcharge and over-discharge protection
- Current limiting and short circuit protection
- Cell-level voltage balancing
- UN38.3 certified for transport safety
- Globally certified for international standards
Installation Notes
- Requires Force H3 BMU (Battery Management Unit) with base and cables
- Minimum 2 modules required per tower
- Maximum 7 modules per tower
- Up to 6 towers can be connected in parallel
- Professional installation recommended
- Follow manufacturer installation guidelines
- Ensure adequate ventilation for tower configuration
- Install within specified temperature range
- Compatible rack or tower mounting system required
Inverter Compatibility
- Versatile use with most common inverter manufacturers
- Compatible with leading inverter brands
- High-voltage compatibility (up to 864V system)
- Refer to Pylontech compatibility list for specific models
- Supports residential, commercial, and industrial inverters
- Communication protocols for seamless integration
Applications
- Residential high-voltage energy storage (10.24-35.8 kWh per tower)
- Commercial battery storage installations (multiple towers)
- Industrial energy storage applications (up to 215 kWh)
- Off-grid solar power systems
- Grid-tied solar with battery backup
- Peak shaving and load shifting
- Renewable energy integration
- Backup power systems
- Microgrids and community energy storage
Warranty and Support
- 10-year standard warranty
- Designed for 15+ year operational life
- >8,000 charging cycles rating
- Comprehensive manufacturer support
- 24/7 monitoring enables proactive maintenance
- Global certification ensures quality standards
System Compatibility
- Part of Pylontech Force H3 system ecosystem
- Requires Force H3 BMU (PYL-F-H3-BMU-BASE) for operation
- Compatible with Force H3 battery towers
- Works with Force H3 monitoring and control systems
- Integrates with Pylontech energy management solutions
About PylonTech
PylonTech is a leading manufacturer of lithium battery energy storage systems with over 10 years of expertise. PylonTech specialises in BMS, EMS and system integration, with a wide range of products suitable for domestic micro-grids, commercial energy storage, photovoltaic power plants and base stations. The Force H3 represents the latest generation of high-voltage battery storage technology from this proven manufacturer.
About DECO Group
We supply PylonTech Force H3 battery modules and high-voltage energy storage components to professional installers throughout the UK. Our technical support covers PylonTech Force H3 installations including 5.12kWh 102.4VDC 50Ah lithium iron phosphate (LiFePO4) battery modules (39-42kg) with latest generation proven storage technology, compact modular design (540 x 350 x 170mm) for flexible scalability from 10.24kWh to 35.8kWh per tower (2 to 7 modules) and up to 215kWh total capacity with 6 towers in parallel, high-voltage capability up to 864V system voltage, 1C rating enabling fast 5,100W charging and discharging, globally certified UN38.3 safety compliance, designed for >8,000 charging cycles or 15+ year operational life, 24/7 monitoring via mobile app with real-time status, voltage, current and temperature information, wide operating temperature range -10°C to 55°C, versatile compatibility with most common inverter manufacturers including leading brands, 10-year standard warranty, and professional installation procedures for residential, commercial, and industrial high-voltage energy storage applications requiring reliable scalable high-performance solar battery solutions with advanced safety features ensuring energy efficiency and sustainability with comprehensive monitoring and control capabilities.
