BMS unit for Powercube 1000V/100A

BMS Unit for Powercube 1000V/100A - Battery Management System

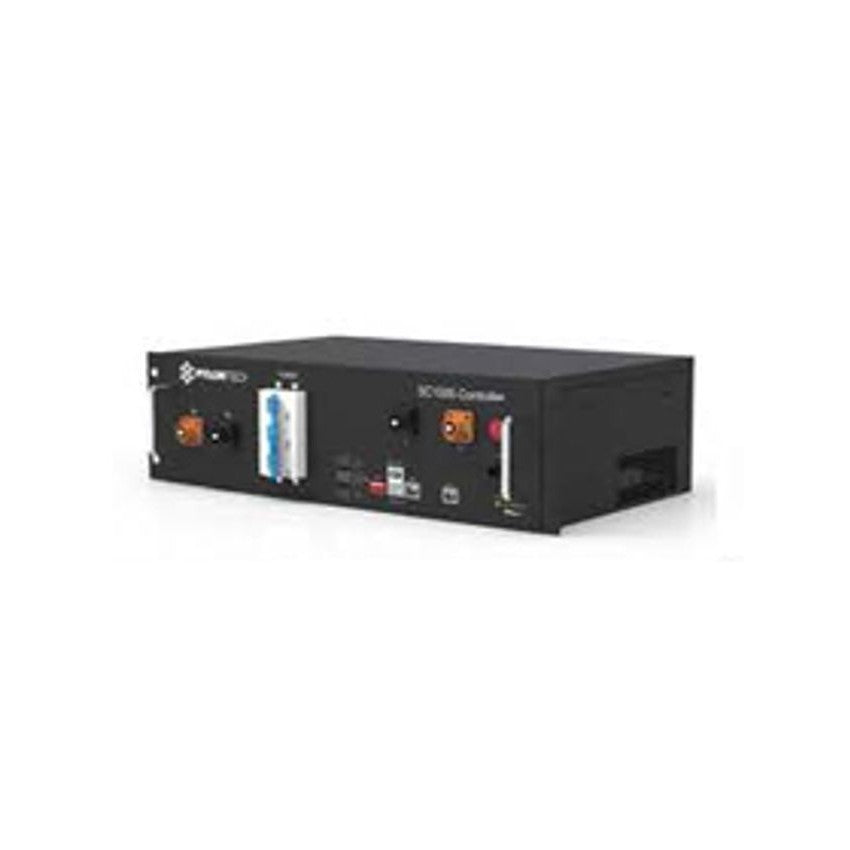

The Pylontech BMS Unit (SC1000NA02V00201) is an essential component for managing Powercube 1000V/100A and Powercube H2 battery systems. Designed for reliability and efficiency, this battery management system ensures smooth and safe energy storage operations with seamless compatibility for high-voltage commercial and industrial installations, including power cables for immediate installation.

Key Technical Details

• Product: BMS Unit for Powercube 1000V/100A
• Part No: PYL-PC-SC1000-100-BMS
• Supplier Part No: SC1000NA02V00201
• System voltage: 1000V
• Current rating: 100A
• Compatible systems: Powercube 1000V/100A and Powercube H2 batteries
• Weight: 11.2 kg
• Product category: Communication Module / Battery Management System

Included Components

• 1 x BMS Unit (SC1000NA02V00201)
• 1 x Orange Power Cable - 160mm length
• 1 x Black Power Cable - 2000mm (2m) length

Key Features

• Compatibility: Works seamlessly with Powercube 1000V/100A and H2 batteries
• Durable design: Engineered for long-term performance in solar energy storage systems
• High-voltage capability: Supports 1000V system operation
• High-current rating: 100A capacity for commercial and industrial applications
• Complete cable package: Includes both power cables for installation
• Essential battery management component for Powercube systems
• Reliable communication and control module
• Professional-grade construction

Product Description

• Battery Management System (BMS) for Powercube H2 battery installations
• Manages high-voltage 1000V battery systems
• Handles up to 100A current for commercial-scale applications
• Essential component ensuring smooth and safe energy storage operations
• Robust 11.2 kg construction for durability
• Communication module enables system monitoring and control
• Designed for reliability in demanding solar energy storage environments

Included Power Cables

• Orange Power Cable: 160mm length for short-distance connections
• Black Power Cable: 2000mm (2m) length for extended reach connections
• Cables included eliminate need for separate cable purchases
• Appropriate cable gauging for 100A current capacity
• Color-coded for easy identification during installation
• Different lengths accommodate various installation configurations

Battery Management Functions

• Monitors battery system voltage and current
• Manages charging and discharging operations
• Protects batteries from overcharge and over-discharge
• Ensures safe operation within specified parameters
• Communicates with inverter and monitoring systems
• Optimizes battery performance and longevity
• Provides system status information

Safety and Protection

• High-voltage safety management (1000V)
• Current protection up to 100A
• Prevents overcharge and over-discharge conditions
• Temperature monitoring and protection
• Fault detection and diagnostic capabilities
• Automatic shutdown in hazardous conditions
• Ensures safe battery system operation

Installation Requirements

• IMPORTANT: Must be installed by qualified electrician/technician
• All installations must adhere to local wiring regulations and standards
• Professional installation required for high-voltage system
• Follow manufacturer installation guidelines precisely
• Use included power cables for proper connections
• Observe correct polarity when connecting cables
• Ensure secure mounting and proper ventilation
• Verify all connections before energizing system

Important Safety Notice

• This product must be installed by qualified electrician/technician
• All installations must adhere to local wiring regulations and standards
• SegenSolar will not be held liable for any product malfunctions as a result of incorrectly installed systems
• High-voltage system - dangerous voltages present
• Follow all safety precautions for 1000V DC systems
• Use appropriate personal protective equipment

Applications

• Powercube 1000V/100A battery systems
• Powercube H2 battery installations
• Commercial energy storage systems
• Industrial battery storage applications
• Large-scale solar energy storage
• High-voltage DC battery management
• Grid-tied commercial battery systems
• Utility-scale energy storage projects

System Compatibility

• Compatible with Powercube 1000V/100A battery systems
• Compatible with Powercube H2 batteries
• Essential component for Powercube installations
• Works seamlessly with Pylontech battery ecosystem
• Integrates with compatible inverter systems
• Part of professional commercial battery solution
