2xBrackets - Pylon US3000 TypeC

Pylontech US3000 Mounting Brackets - Secure & Efficient Battery Stacking

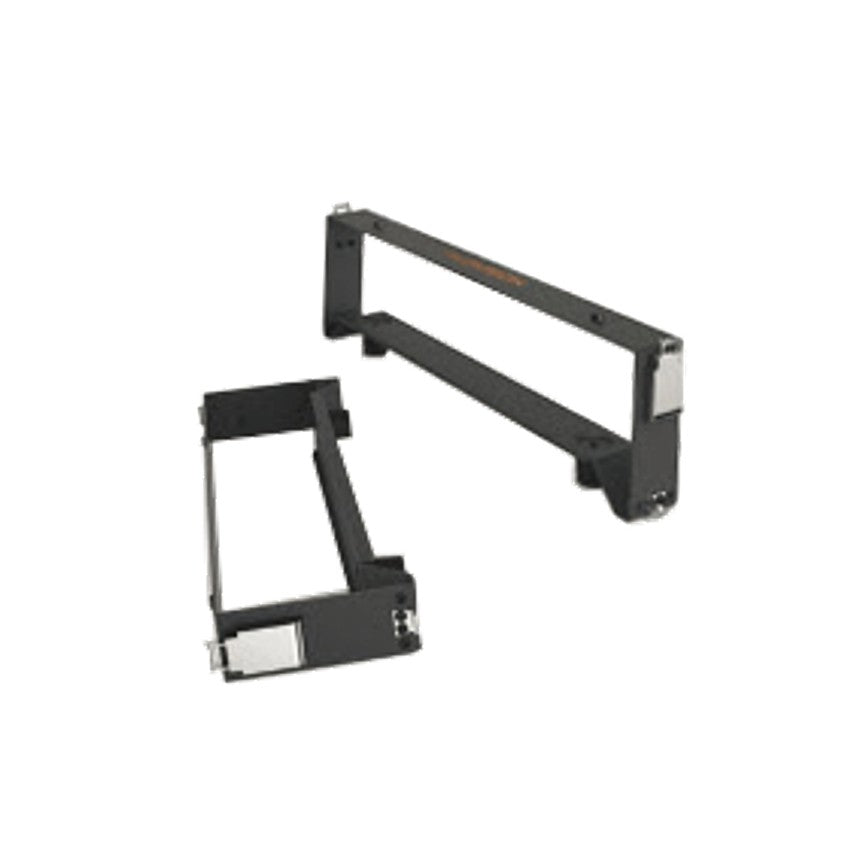

The Pylontech US3000 Mounting Clamp Bracket is a crucial component for safely stacking Pylontech US3000 and US3000C batteries. Designed with durability and efficiency in mind, these high-durability metal brackets provide structural stability while ensuring optimal airflow to maintain battery performance and prevent overheating. Each set includes two brackets, essential for stacking multiple battery units securely with professional organization.

Key Technical Details

• Product: Pylontech US3000 Mounting Clamp Bracket
• Part No: BRACK-US3000
• Supplier Part No: BW0PLUSUS3KAZJ01
• Model Number: BW0PLUSUS3KAZJ01
• Compatible Battery Models: Pylontech US3000 / US3000C Type C
• Stacking Capacity: Up to 4 batteries
• Material: High-Durability Metal
• Included Components: 2 x Brackets per set
• Weight: 2.59 kg per set

Key Benefits of the Pylontech US3000 Brackets

• Designed specifically for Pylontech US3000 battery modules
• Ensures optimal airflow to prevent overheating
• Allows for secure vertical stacking of up to four batteries
• Comes with clamping device to firmly connect brackets
• Durable and lightweight for easy installation
• High-durability metal construction for long-term stability
• Professional, organized energy storage solution
• Compatible with both US3000 and US3000C Type C variants

How the US3000 Brackets Work

• Pylontech US3000 mounting clamp bracket system enables safe and efficient battery stacking
• Without proper spacing, batteries may overheat or suffer from poor ventilation
• Brackets designed to prevent direct contact between stacked batteries
• Ensures maximum performance and safety through proper spacing
• Built-in clamping device securely connects stacked brackets
• Maintains stability and prevents movement during operation
• Creates air gap between batteries for cooling and ventilation
• Supports higher capacity US3000 batteries with robust construction

Product Description

• Set of battery brackets allowing vertical stacking of Pylon US3000 battery units
• 1 set required per additional battery added to stack
• Two brackets per set work together to support upper battery
• High-durability metal construction withstands weight of stacked US3000 batteries
• Lightweight design (2.59 kg) simplifies installation process
• Clamping mechanism ensures secure connection between bracket sets
• Essential safety component for multi-battery installations
• Prevents thermal issues through proper air circulation design

Installation & Compatibility

• Each set consists of 2 brackets essential for stacking each additional battery unit
• Single set required for every new battery added to existing stack
• Compatible with Pylontech US3000 batteries
• Compatible with Pylontech US3000C Type C batteries
• Provides professional, organized storage solution
• Easy installation with included clamping device
• Stack up to 4 batteries vertically with proper bracket sets
• First battery sits on floor/base - no brackets needed
• Second battery requires 1 set of brackets (2 brackets)
• Third battery requires additional set of brackets
• Fourth battery requires additional set of brackets
• Must be installed by qualified electrician/technician following local regulations

Bracket Requirements by Stack Size

• 1 battery: 0 sets of brackets (no stacking)
• 2 batteries: 1 set of brackets (2 brackets total)
• 3 batteries: 2 sets of brackets (4 brackets total)
• 4 batteries: 3 sets of brackets (6 brackets total)
• Maximum recommended stack: 4 batteries

Why Choose Pylontech US3000 Mounting Brackets?

• Investing in mounting clamp bracket system is essential for maintaining battery safety and efficiency
• Focus on air circulation prevents overheating and thermal degradation
• Structural stability ensures safe operation of stacked battery systems
• Professional, organized energy storage solution
• Practical and effective solution for expanding solar setups
• Secures existing battery systems with proper spacing
• Enables scalable energy storage growth with higher capacity US3000 batteries
• Cost-effective way to maximize storage capacity in limited space

Applications

• Pylontech US3000 battery installations
• Pylontech US3000C Type C battery installations
• Residential energy storage systems
• Commercial battery storage installations
• Off-grid solar power systems
• Grid-tied solar with battery backup
• Expandable energy storage solutions
• Space-efficient vertical battery stacking

Safety and Performance Benefits

• Prevents direct battery-to-battery contact that could cause overheating
• Optimal airflow design maintains safe operating temperatures
• Structural stability prevents dangerous battery movement or tipping
• Secure clamping prevents stack separation during seismic events
• Proper spacing extends battery lifespan through better thermal management
• Professional installation appearance with organized vertical arrangement
• Robust construction handles increased weight of US3000 batteries

System Compatibility

• Compatible with Pylontech US3000 battery models
• Compatible with Pylontech US3000C Type C batteries
• Part of Pylontech's complete battery accessory range
• Essential for multi-battery Pylontech installations
• Integrates with Pylontech battery management system
• Supports expandable energy storage configurations

Important Installation Note

• Must be installed by qualified electrician/technician following local regulations
• Proper installation critical for safety and warranty compliance
• Follow manufacturer installation guidelines precisely
• Ensure secure mounting and proper clamping connections

Disclaimer

While every reasonable effort is made to ensure that the product specification is accurate, no guarantees for the accuracy of information are made. Must be installed by a qualified electrician/technician following local regulations.
