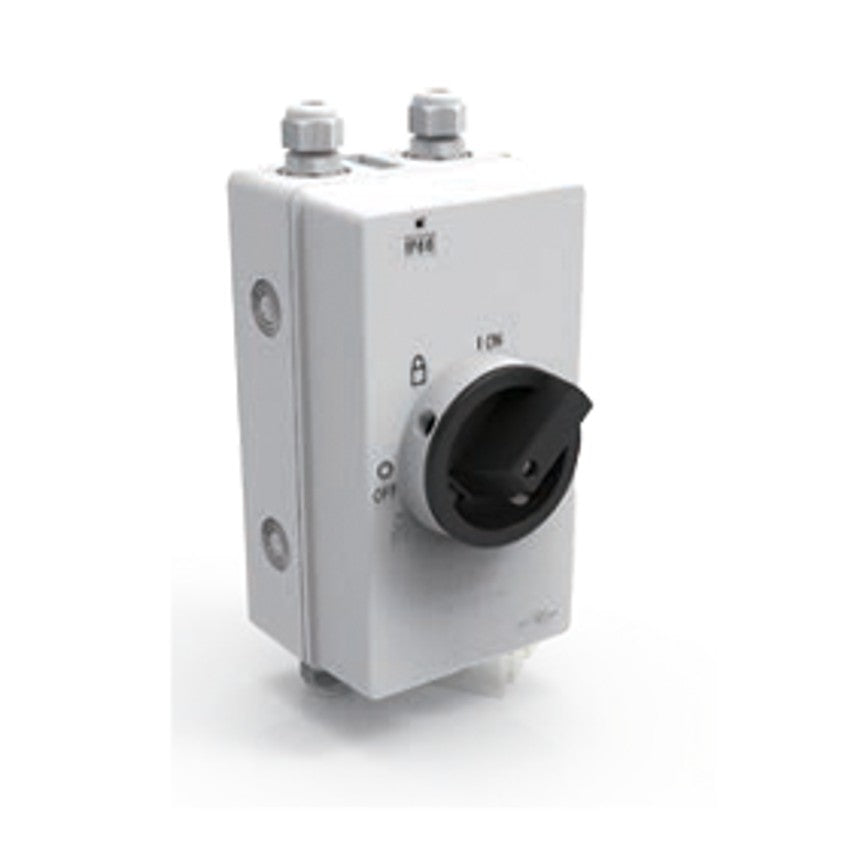

• Projoy Electric Projoy DC Isolator 25A 2pole 1string
1 1
Part No:PEDS150-EL25R-2
Quick Find:
No Stock, Please Enquire!

Key Information

  • Modular design, DC insulation voltage 1500V, compact structure
  • IP66 box design, switch rotation operator with three lockable positions, to prevent misoperation
  • Suitable for different specifications of waterproof cable connector
  • The zero line bridge with angle design makes the connection easier
  • With sufficient internal space and good heat dissipation effect, the whole machine can work under -40℃-70℃ with full load
  • High - speed "on - off" switching mechanism, using energy storage spring, fast switching, maximum switching time is less than 5ms
  • Contact self-cleaning design, reduce the resistance and energy consumption of DC switch, extend the life of switch
  • Magnetic arc extinguishing and gate arc extinguishing are used to suppress the arc effectively
  • Passed IEC / EN60947-3: 2009+A1+A2, AS60947.3, UL508I, GB / T14048.3, with TUV, CE, CB, SAA, UL certification



Projoy Electric

Projoy DC Isolator 25A 2pole 1string

Projoy DC Isolator 25A 2pole 1string

£11.74
£11.74
Sale
Excl. VAT
View full details
