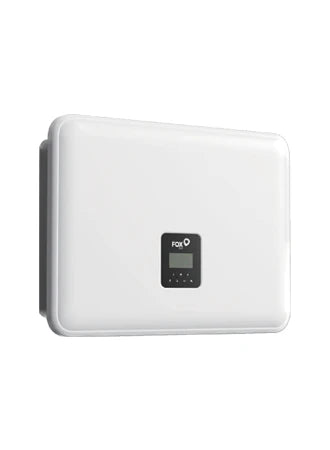

Fox ESS H3 Smart Series 8.0kW Three Phase Hybrid Inverter
The Fox ESS H3 Smart 8.0kW is a three phase hybrid inverter designed for high voltage battery systems and true three phase backup operation. It integrates PV input management, battery charging and discharging, and AC coupling within a single platform, supporting flexible system design for professional multi phase installations.
Key Technical Details
- Part Number: FE-H3-8.0-SMART
- Model: H3-8.0-SMART
- Rated Power: 8,000 W
- Maximum AC Power (5 Minutes): 8,000 W
- Surge AC Power (1 Second): 8,800 W
- Maximum DC Power: 17,600 W
- MPPT Quantity: 3
- Minimum MPPT Voltage: 140 V
- Maximum MPPT Voltage: 1,000 V
- DC Startup Voltage: 140 V
- DC Shutdown Voltage: 1,000 V
- Maximum Input Voltage: 1,000 V
- Maximum DC Current: 60 A
- Maximum DC Inputs: 3
- Has DC Fuses: 1
- Euro Efficiency: 97.2 %
- Protection Level: IP65
- Weight: 34 kg
- Transformer: hf
- Has Integrated DC Switch: Yes
- Warranty: 10 years
System Capabilities
The H3 Smart Series supports high voltage battery operation with compatibility across multiple battery types. True three phase backup capability allows continued operation across all phases when correctly configured within a supported system architecture.
Monitoring and Control
Built-in Wi-Fi enables remote monitoring via an app or web portal, providing real time system performance visibility and remote diagnostics for commissioning and ongoing management.
Safety, Monitoring and Control
The inverter features plug and play installation with built-in fuse protection. An electricity meter is included to support system monitoring and export control where required.
Installation Notes
The enclosure is rated to IP65 and is suitable for outdoor installation. The inverter uses MC4 connectors and must be installed in accordance with applicable wiring regulations and technical standards.
