Key Information

Easy installation - Plug & Play, built-in fuse protection.
High voltage - Maximum round-trip efficiency.
Maximum flexibility - 3 battery types to choose from, True 3-phase backup power.
IP65 rated - Suitable for outdoor installation.
Monitoring - Monitor remotely via app or web portal.

View more information

Fox ESS

FOX ESS H3 Smart 6.0KW 3PH Hybrid/AC Inverter

Regular price £1,345.73

Regular price Sale price £1,345.73

Unit price / per

Sale

Excl. VAT

Shipping calculated at checkout.

Product variants

Quantity (0 in cart)

Link

View full details

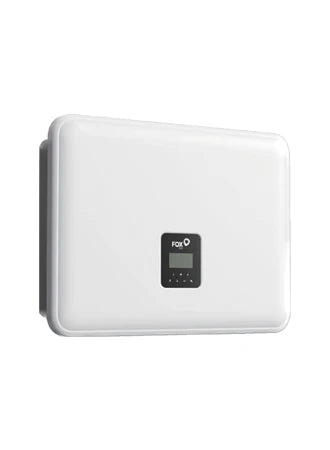

FOX ESS H3 Smart 6.0KW 3PH Hybrid/AC Inverter FE-H3-6.0-SMART

Fox ESS H3 Smart Series 6.0kW Three Phase Hybrid Inverter

The Fox ESS H3 Smart 6.0kW is a three phase hybrid inverter designed for high voltage battery systems and true three phase backup operation. It combines PV input management, battery integration, and AC coupling within a single platform, supporting flexible system design and reliable performance for professional commercial and multi phase installations.

Key Technical Details

Part Number: FE-H3-6.0-SMART
Model: H3-6.0-SMART
Rated Power: 6,000 W
Maximum AC Power (5 Minutes): 6,000 W
Surge AC Power (1 Second): 6,600 W
Maximum DC Power: 13,200 W
MPPT Quantity: 3
Minimum MPPT Voltage: 140 V
Maximum MPPT Voltage: 1,000 V
DC Startup Voltage: 140 V
DC Shutdown Voltage: 1,000 V
Maximum Input Voltage: 1,000 V
Maximum DC Current: 60 A
Maximum DC Inputs: 3
Has DC Fuses: 1
Euro Efficiency: 97.2 %
Protection Level: IP65
Weight: 34 kg
Transformer: none
Has Integrated DC Switch: Yes
Warranty: 10 years

System Capabilities

The H3 Smart Series supports high voltage battery operation with compatibility across multiple battery types. True three phase backup capability allows continued operation across all phases when correctly configured within a supported system architecture.

Monitoring and Control

Integrated Wi-Fi enables remote system monitoring via an app or web portal. Real time performance data and system status can be accessed remotely to support commissioning, diagnostics, and ongoing system management.

Safety, Monitoring and Control

The inverter includes built-in fuse protection and supports plug and play installation. An electricity meter is included to support system monitoring and export management where required.

Installation Notes

The enclosure is rated to IP65 and is suitable for outdoor installation. The inverter is designed for streamlined installation using MC4 connectors and must be installed in accordance with applicable wiring regulations and technical standards.
