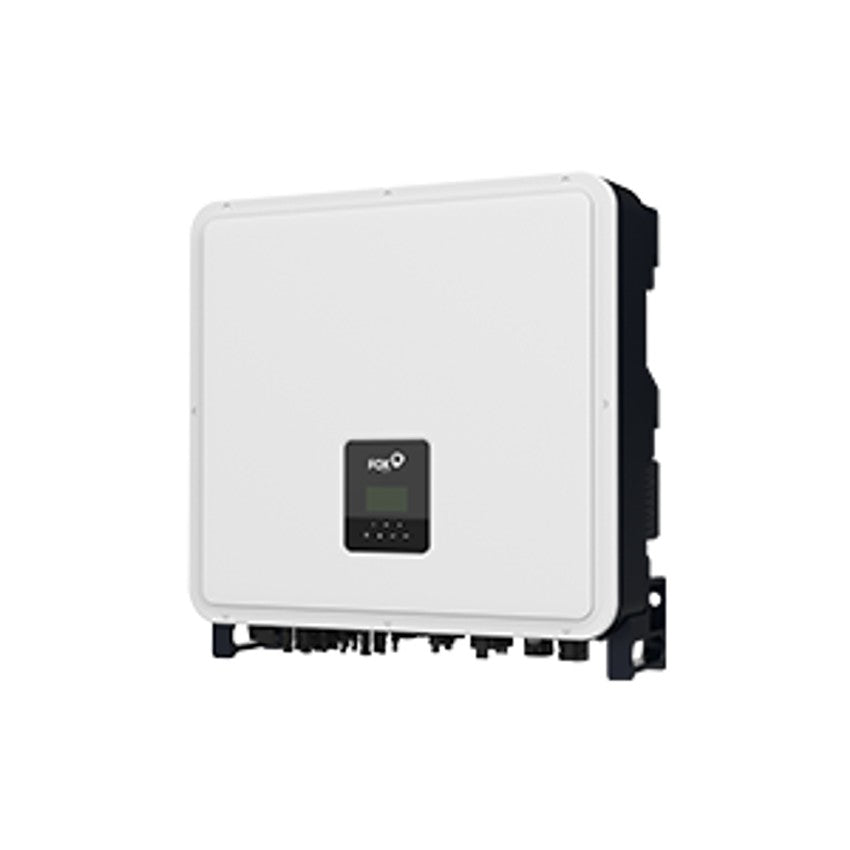

Fox ESS H3 Pro 30.0kW Three Phase Hybrid Inverter
The Fox ESS H3 Pro 30.0kW is a high power three phase hybrid inverter designed for large scale PV and energy storage systems. It supports dual high voltage battery inputs, advanced MPPT control, and scalable storage architecture to enable continuous operation across demanding commercial installations.
Key Technical Details
- Manufacturer series: Fox ESS H3 Pro Series
- Model: H3 Pro 30.0
- Part number: FE-H3-PRO-30.0
- Rated power: 30,000 W
- Max AC power (5 minutes): 30,000 W
- Surge AC power (1 second): 33,000 W
- Max DC power: 45,000 W
- Min PPT voltage: 160 V
- Max PPT voltage: 1,000 V
- DC startup voltage: 160 V
- DC shutdown voltage: 160 V
- Max input voltage: 1,000 V
- Max DC current: 96 A
- MPPT quantity: 3
- Max DC inputs: 6
- Has DC fuses: 0
- Has integrated DC switch: Yes
- Connector type: MC4
- Included connectors: 12
- Euro efficiency: 97.4 %
- Transformer type: none
- Weight: 57.5 kg
- Warranty: 5 years
Key features
The H3 Pro 30.0kW platform is engineered with a flexible plug and play architecture and integrated protective functions. Its high voltage design supports efficient energy conversion and simplified integration with compatible battery systems.
System capabilities
This inverter supports expandable battery configurations using up to two stacks, each consisting of one master and up to six slave modules. Across supported battery series, total storage capacity can be configured up to 86.40 kWh, enabling scalable system design for higher energy demands.
Safety, monitoring and control
An integrated DC switch supports safe isolation during installation and servicing. Remote system monitoring is available via app or web portal, enabling performance visibility and operational oversight.
Installation notes
The enclosure is designed for flexible mounting options and is suitable for outdoor installation. Battery sizing and communication accessories must be selected in line with manufacturer technical guidance, as specific network hardware is required for this range.
