Key Information

Remote monitoring via web portal or smartphone
Easy to expand battery capacity
Dual MPPT - ensure optimal solar production
High round-trip efficiency of 97%

View more information

Fox ESS

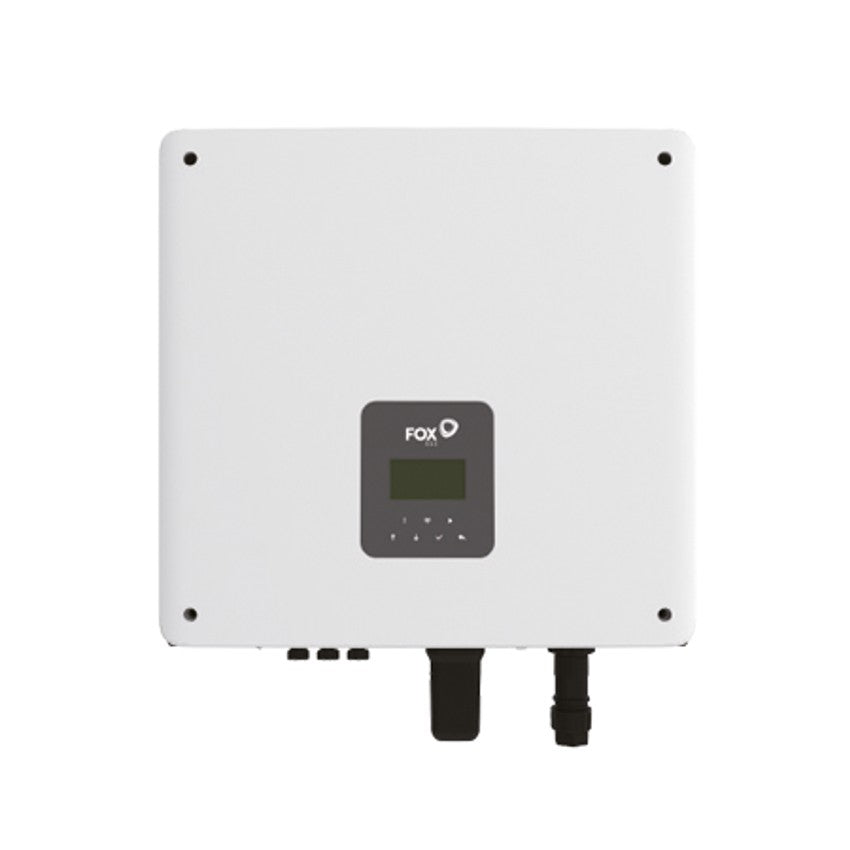

Fox H1 5.0kW Hybrid Inverter with EPS 1PH Gen 2

Regular price £782.32

Regular price Sale price £782.32

Unit price / per

Sale

Excl. VAT

Shipping calculated at checkout.

Product variants

Quantity (0 in cart)

Link

View full details

Fox H1 5.0kW Hybrid Inverter with EPS 1PH Gen 2

The Fox H1 5.0kW Gen 2 hybrid inverter is a single phase system designed to manage PV generation, battery storage, and EPS functionality within a compact platform. It is intended for professional installations requiring dual MPPT operation, high conversion efficiency, and straightforward system expansion.

Key Technical Details

Part Number: FE-H1-5.0-G2
Rated Power: 5,000 W
Maximum AC Power (5 Minutes): 5,000 W
Surge AC Power (1 Second): 5,001 W
Maximum DC Power: 10,000 W
MPPT Quantity: 2
Minimum MPPT Voltage: 80 V
Maximum MPPT Voltage: 550 V
DC Startup Voltage: 75 V
DC Shutdown Voltage: 601 V
Maximum Input Voltage: 600 V
Maximum DC Current: 32 A
Maximum DC Inputs: 2
Euro Efficiency: 97 %
Weight: 26.4 kg
Transformer: none
Warranty: 5 years

System Capabilities

The inverter supports hybrid operation with compatible battery systems and EPS output, enabling continued supply during grid interruptions when correctly configured. Dual MPPT inputs support flexible PV array design to optimise energy capture.

Monitoring and Control

Remote monitoring is available via a web portal or smartphone interface, providing system visibility and operational oversight. Integrated communication hardware supports direct connectivity without additional external devices.

Included Components

CT clamps and a WiFi communication stick are supplied within the box. Where an additional generation source is present, a second CT is required. A meter is required when the distance between the inverter and the incoming power connection point exceeds 30m.

Installation Notes

The inverter is designed for efficient installation and supports future battery capacity expansion using compatible storage modules. Correct system configuration and commissioning are required to ensure compliant operation.
