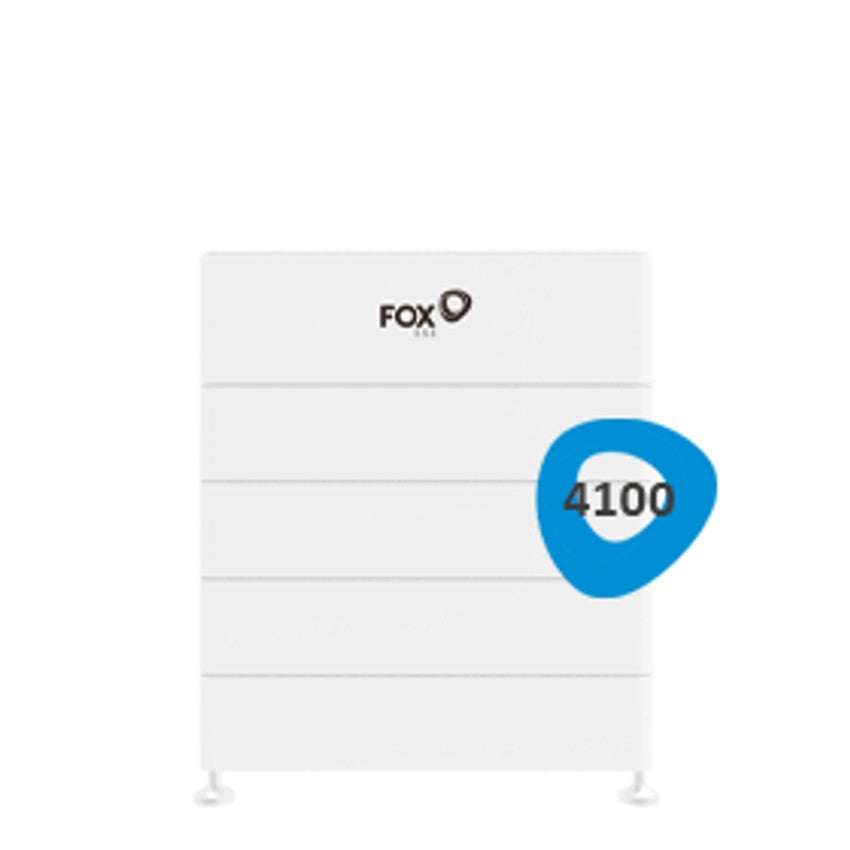

Fox ESS ECS4100 20.15kWh High-Voltage Battery Stack (1 x Master + 4 x Slave)
The Fox ESS ECS4100 20.15 kWh battery stack (package part number FE-HV-EC-5-4.1-20.5) is a pre-configured 5-module high-voltage LiFePO₄ battery stack comprising 1 x ECS4100 Master (FE-HV-ECM-4100) and 4 x ECS4100 Slave (FE-HV-ECS-4100) modules, all Version 2 with Connector Type B. The stack delivers 20.15 kWh of nominal capacity at 288 V with 90% depth of discharge. The stack can be expanded with up to 2 additional ECS4100 Slave modules for a maximum of 28.21 kWh. No inverter is included in this package. Available from DECO Group, a UK-based solar wholesaler for professional trade installers.
Package Contents
- 1 x Fox ESS ECS4100 4.03 kWh HV Battery Master V2 Connector B (FE-HV-ECM-4100)
- 4 x Fox ESS ECS4100 4.03 kWh HV Battery Slave V2 Connector B (FE-HV-ECS-4100)
Stack Specifications (5 Modules)
- Part number: FE-HV-EC-5-4.1-20.5
- Battery chemistry: LiFePO₄
- Version: V2, Connector Type B
- Total nominal capacity: 20,150 Wh (20.15 kWh)
- Stack voltage: 288 V
- Depth of discharge: 90%
- Continuous discharge rate: 14,400 W
- Maximum discharge rate (5 minutes): 14,400 W
- Surge discharge rate (15 seconds): 18,720 W
- Maximum charge rate (5 minutes): 14,400 W
- Communication: CAN / RS485
- Expandable: Up to 2 additional Slave modules (maximum 7 modules / 28.21 kWh per stack)
- Dimensions (5-module stack): 570 x 710 x 380 mm (W x H x D)
- Weight: 177.45 kg
Key Features
- 20.15 kWh pre-configured battery stack with LiFePO₄ chemistry and 90% usable depth of discharge
- Expandable with up to 2 more ECS4100 Slave modules (V2 Connector Type B) to reach 28.21 kWh
- High-voltage 288 V stack architecture for reduced losses and improved system efficiency
- 14,400 W continuous discharge with 18,720 W surge capability
- Plug-and-play modular design for fast installation
- CAN/RS485 communication for system integration
- All V2 Connector Type B for guaranteed compatibility within this stack
System Compatibility
- Compatible with Fox ESS H1, H1-G2, KH, H3 Smart, H3, and H3 Pro inverters
- No inverter is included in this package; order separately
- This 5-module stack meets the minimum battery requirements for all compatible Fox ESS inverters (including the 3-module minimum for H3 and H3 Pro)
- Expandable: add up to 2 more ECS4100 Slave modules to reach the 7-module stack maximum (28.21 kWh)
Installation Notes
- Total stack weight: 177.45 kg. Each module must be lifted individually (Master 38.25 kg, Slave 34.8 kg each); two-person lift required per module.
- Stack dimensions at 5 modules: 570 x 710 x 380 mm (W x H x D)
- Additional ECS4100 modules can be added post-installation
- Must be installed by a qualified electrician or technician in compliance with local wiring regulations
Warranty
- Standard warranty: 5 years
- Extended warranty: 12 years when the installation is registered with Fox ESS online
Common Questions
Click a question below to reveal the answer.
Is an inverter included in this package?
No. This is a battery-only stack package. A compatible Fox ESS hybrid inverter or AC charger inverter must be ordered separately.
Can I add more batteries to this stack later?
Yes. Up to 2 additional ECS4100 Slave modules (V2 Connector Type B) can be added, expanding the stack from 5 modules (20.15 kWh) to the maximum of 7 modules (28.21 kWh).
What inverters are compatible with this battery stack?
This stack is compatible with Fox ESS H1, H1-G2, KH, H3 Smart, H3, and H3 Pro inverters. The 5-module configuration exceeds the minimum battery requirement for all compatible models.
What is the total weight of this battery stack?
The 5-module stack weighs 177.45 kg total. Each module is lifted individually: the Master at 38.25 kg and each Slave at 34.8 kg. A two-person lift is required per module.
DECO Group supplies Fox ESS ECS battery stacks in various pre-configured sizes alongside individual master and slave modules, compatible hybrid inverters, AC charger inverters, and system accessories. Browse our Fox ESS battery storage catalogue for complete scalable storage configurations.
