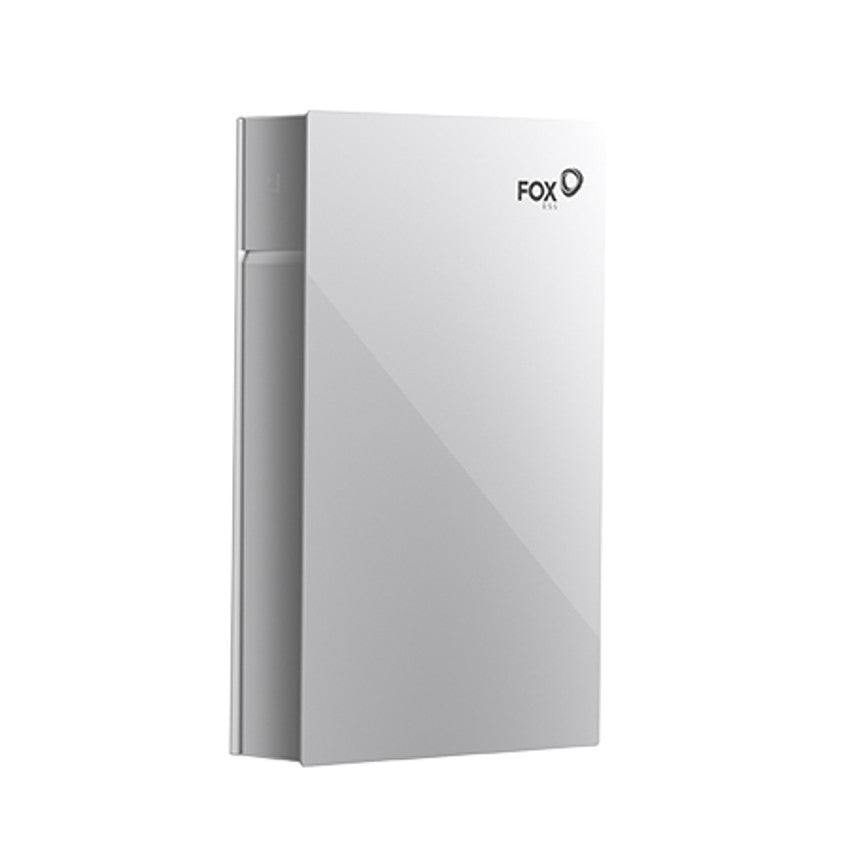

Fox ESS Evo Series EVO10-8-H 8.0kW Inverter with 10.24kWh Integrated Battery
The Fox ESS Evo Series EVO10-8-H is a fully integrated hybrid inverter and battery system combining PV input control, grid interaction, EPS functionality, and lithium iron phosphate energy storage in a single enclosure. It is engineered for professional installations requiring higher inverter output with a compact, all in one system suitable for indoor and outdoor technical environments.
Key Technical Details
- Model: EVO10-8-H
- Supplier Part Number: EVO10-8H
- Rated Output Power: 8000W
- Rated Apparent Power: 8000VA
- Integrated Battery Energy: 10.24kWh
- Battery Type: LFP (LiFePO₄)
- Depth of Discharge: 95%
- Cycle Life: 6000
- Protection Level: IP66
- Weight: 113 kg
- Dimensions (W×H×D): 584×1009×197mm
PV Input and Inverter Performance
- Maximum PV Array Power: 20000W
- Maximum PV Input Power: 18000W
- Maximum MPPT Input Power: 8000W/8000W/8000W
- Number of MPPT Trackers: 3
- Strings per MPPT Tracker: 1
- Maximum Input Voltage: 600V
- Start-up Voltage: 75V
- MPPT Operating Voltage Range: 80~550V
- Maximum Input Current: 20A/20A/20A
- Maximum Short Circuit Current: 25A/25A/25A
- Maximum Conversion Efficiency: 97.60%
- European Efficiency: 97.20%
Battery and Energy Management
The integrated 10.24kWh LFP battery supports high charge rates of up to 10kW per unit and can be expanded to a total system capacity of 30.72kWh through parallel operation. Integrated battery warm-up and built-in fire suppression are included to support stable and safe system operation.
EPS Output Capability
- Maximum EPS Apparent Power: 8000VA
- Peak Apparent Power: 9600@60s, 12000@30s, 16000@10s
- Nominal EPS Voltage: 220/230/240V
- Nominal Frequency: 50/60Hz
- Maximum Output Current (Per Phase): 36.4A@220V
- Switch Time: <4ms
- THDV: <3@Linear Load
System Integration and Control
The system supports export limitation via CT, meter, DRM0, or ESTOP and includes integrated WiFi, LAN, and 4G monitoring options. Communication interfaces include Ethernet, EMS (RS485), WiFi, Bluetooth, USB, and BMS connectivity, with system access provided locally through an LCD display.
Installation Notes
The EVO10-8-H supports floor-mounted or wall-mounted installation and uses intelligent air cooling for thermal regulation. The IP66 enclosure supports operation in ambient temperatures from -20°C to 55°C with humidity levels of 0~100% without condensation.
