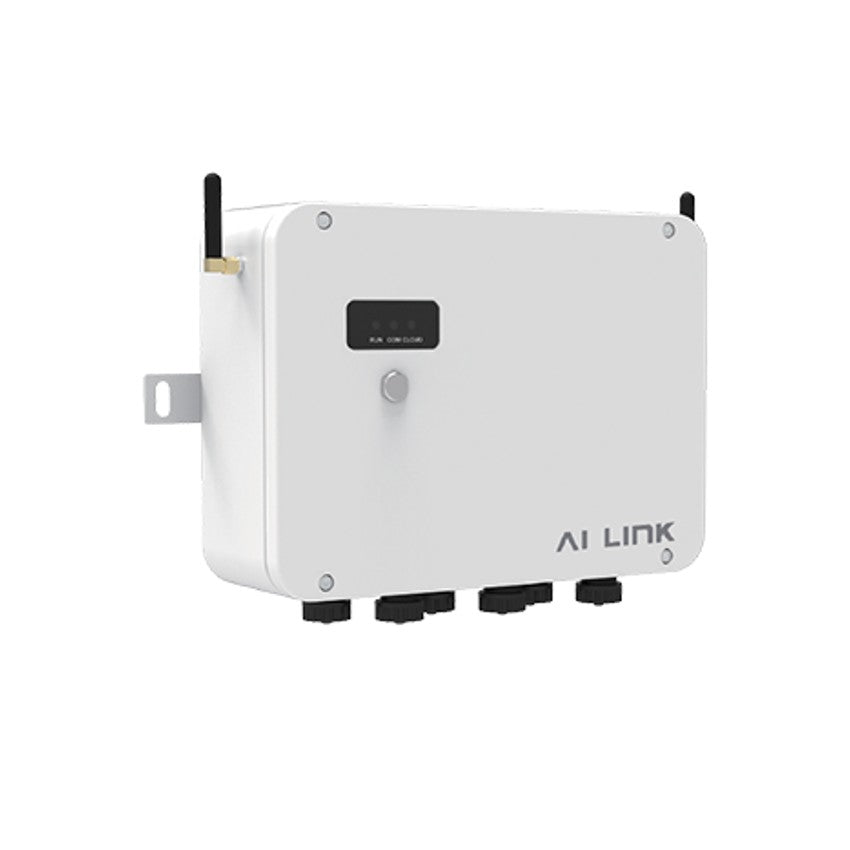

Fox ESS AI Link EMS Box for Three-Phase Multi-Inverter Systems
The Fox ESS AI Link (part number FE-AI-LINK) is a three-phase Energy Management System (EMS) controller designed to coordinate multiple Fox ESS inverters in parallel operation. It supports up to 10 inverters in on-grid mode and up to 4 H3-Pro inverters in off-grid mode, providing centralised control, export limitation, and system synchronisation via RS-485 communication. Compatible with the Fox ESS H3 Smart, H3-Pro, V-Series, and R-Series inverters, the AI Link can be powered directly from the H3-Pro, requiring no separate power supply. IP65 rated for indoor or outdoor wall-mounted installation, it measures 260 x 192 x 88 mm and weighs 2.5 kg. Available from DECO Group, a UK-based solar wholesaler for trade installers.
Key Technical Details
- Part number: FE-AI-LINK
- Supplier part number: FE-AI-LINK
- Product type: Three-phase Energy Management System (EMS) controller
- Maximum parallel inverters (on-grid): 10 units
- Maximum parallel inverters (off-grid): 4 units (H3-Pro)
- Communication interface: RS-485
- Power supply: Directly from H3-Pro inverter (no separate supply required)
- Ingress protection: IP65
- Installation: Wall-mounted
- Dimensions: 260 x 192 x 88 mm (H x W x D)
- Weight: 2.5 kg
Key Features
- Centralised master controller for parallel three-phase inverter installations
- Supports up to 10 inverters on-grid and 4 H3-Pro inverters off-grid
- Export limitation and smart meter integration for grid compliance
- Protocol conversion and power synchronisation across all connected inverters
- Acts as a full system data logger, replacing the need for individual monitoring dongles on each inverter
- Powered directly from the H3-Pro inverter with no external power supply needed
- IP65 rated for indoor or outdoor installation
- Compact and lightweight at 2.5 kg for straightforward wall mounting
System Compatibility
- Fox ESS H3 Smart inverters
- Fox ESS H3-Pro inverters
- Fox ESS V-Series inverters
- Fox ESS R-Series inverters
- Required for parallel operation beyond basic daisy-chain configurations
- Connects via RS-485 communication cables to all inverters and smart meters
- Compatible with the Fox ESS monitoring platform for system oversight
Installation Notes
- Wall-mounted installation, IP65 rated for indoor or outdoor locations
- Connect RS-485 communication cables from the AI Link to all inverters in the system
- Power can be supplied directly from the H3-Pro inverter, simplifying wiring
- At 2.5 kg and 260 x 192 x 88 mm, this is a single-person lift and install
Included Components
- 1 x Fox ESS AI Link EMS Box (FE-AI-LINK)
- Installation and user manual
- Integrated RS-485 communication ports
Common Questions
Click a question below to reveal the answer.
Which Fox ESS inverters are compatible with the AI Link?
The AI Link is compatible with Fox ESS H3 Smart, H3-Pro, V-Series, and R-Series three-phase inverters.
How many inverters can the Fox ESS AI Link control?
Up to 10 inverters in on-grid mode and up to 4 H3-Pro inverters in off-grid mode.
Do I still need individual monitoring dongles when using the AI Link?
No. The AI Link acts as a full system data logger for all connected inverters, so individual monitoring dongles are not required on each unit.
Does the Fox ESS AI Link need a separate power supply?
No. The AI Link can be powered directly from the H3-Pro inverter, eliminating the need for an external power supply.
When is the Fox ESS AI Link required?
The AI Link is required for parallel multi-inverter installations where standard daisy-chain RS-485 communication is insufficient. It provides centralised control, export limitation, and system synchronisation across all connected units.
DECO Group supplies Fox ESS three-phase system components including H3-Pro inverters, V-Series and R-Series units, monitoring hardware, and EMS controllers. Browse our Fox ESS catalogue for complete multi-inverter and commercial-scale system components.
