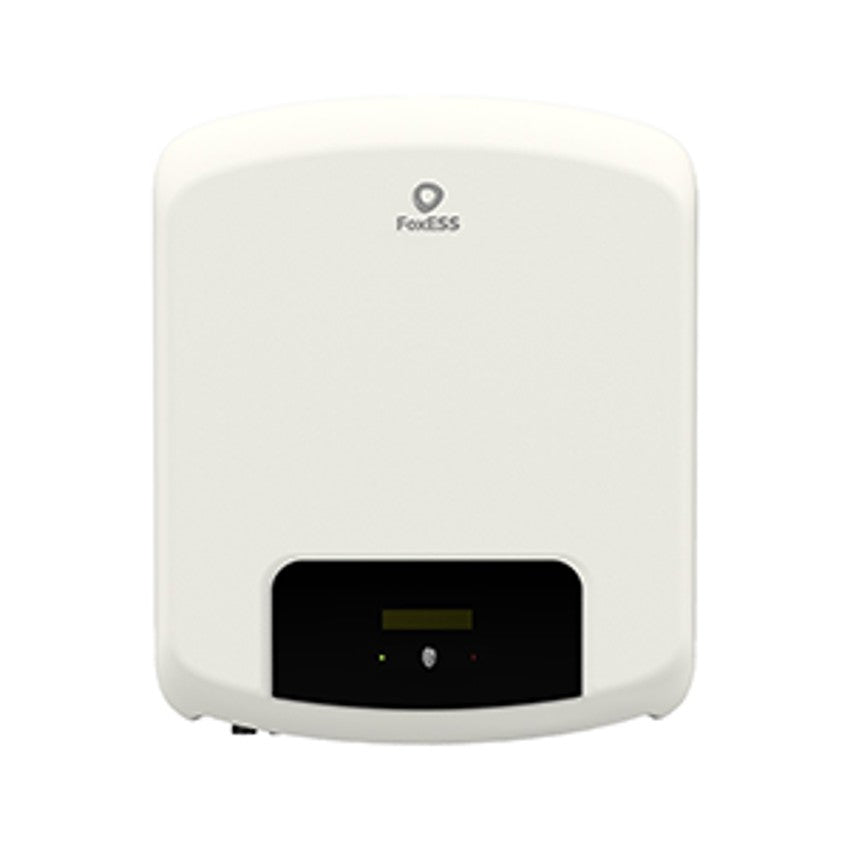

Fox ESS F5000 5kW F Series Single Phase Dual MPPT Grid-Tie PV Inverter
The Fox ESS F5000 (part number FE-F5000) is a 5.0 kW single-phase, dual-MPPT grid-tie PV inverter from the Fox ESS F Series range. With a maximum efficiency of 97.40% and a Euro efficiency of 96.80%, the F5000 delivers strong conversion performance across two independent MPPT trackers. It features a start-up voltage of 120 V, an MPPT operating range of 80 V to 550 V, and accepts a maximum DC input of 6,500 W at up to 600 V. The F5000 is IP65 rated for outdoor installation, weighs 15.5 kg, and measures 402 x 476.5 x 148 mm. It is battery ready for future upgrade when paired with a Fox ESS charge controller. Available from DECO Group, a UK-based solar wholesaler for professional installers.
Key Technical Details
- Part number: FE-F5000
- Supplier part number: F5000
- Model: F5000
- Inverter type: Single-phase grid-tie, transformerless
- Rated output power: 5,000 W
- Rated output apparent power: 5,000 VA
- Maximum AC power (5 minutes): 5,000 W
- Surge AC power (1 second): 5,001 W
- Maximum PV input power: 6,500 W
- Maximum input voltage: 600 V
- MPPT operating voltage range: 80 V to 550 V
- DC start-up voltage: 120 V
- DC shutdown voltage: 601 V
- Maximum DC input current: 25 A
- MPPT quantity: 2
- Strings per MPPT: 1
- Maximum DC inputs: 2
- Maximum efficiency: 97.40%
- Euro efficiency: 96.80%
- Connector: MC4
- DC fuses: No
- Integrated DC switch: Yes
- Ingress protection: IP65
- Dimensions: 402 x 476.5 x 148 mm (W x H x D)
- Weight: 15.5 kg
Key Features
- Dual independent MPPT trackers allow two separate string orientations or roof faces for improved system yield
- 97.40% maximum efficiency with wide MPPT voltage range of 80 V to 550 V
- 6,500 W maximum DC input giving a 1.3:1 DC/AC ratio
- IP65 rated for outdoor installation
- Battery ready for future storage upgrade when paired with a Fox ESS charge controller
- Remote monitoring via smartphone app or web portal
- Integrated DC switch
System Compatibility
- Part of the Fox ESS F Series dual-MPPT range covering 3.0 kW to 6.0 kW models
- MC4 DC connections
- Battery ready when paired with a Fox ESS charge controller for AC-coupled storage
Installation Notes
- At 15.5 kg, this inverter is a comfortable single-person lift
- IP65 rated for indoor or outdoor installation
- Dimensions: 402 x 476.5 x 148 mm (W x H x D)
Warranty
- Standard warranty: 5 years
- Extended warranty: 10 years when the installation is registered with Fox ESS online
Common Questions
Click a question below to reveal the answer.
What is the advantage of dual MPPT on the Fox ESS F5000?
The two independent MPPT trackers allow separate string orientations or roof faces to operate independently, improving total system yield on multi-aspect roofs or where partial shading is present.
Can the Fox ESS F5000 be used with battery storage?
The F5000 is battery ready. It can be upgraded to include storage when paired with a Fox ESS charge controller.
What are the dimensions and weight of the Fox ESS F5000?
The F5000 measures 402 x 476.5 x 148 mm (W x H x D) and weighs 15.5 kg.
How do I activate the 10-year warranty on the Fox ESS F5000?
The standard warranty is 5 years. To activate the 10-year warranty, the installation must be registered with Fox ESS online.
DECO Group stocks the Fox ESS F Series dual-MPPT grid-tie inverter range alongside the single-MPPT S Series, Fox charge controllers, monitoring dongles, and compatible system accessories. Browse our Fox ESS inverter catalogue for complete single-phase PV system components.
