Fox ESS F3600 3.6kW F Series G3 Single Phase Dual MPPT Grid-Tie PV Inverter

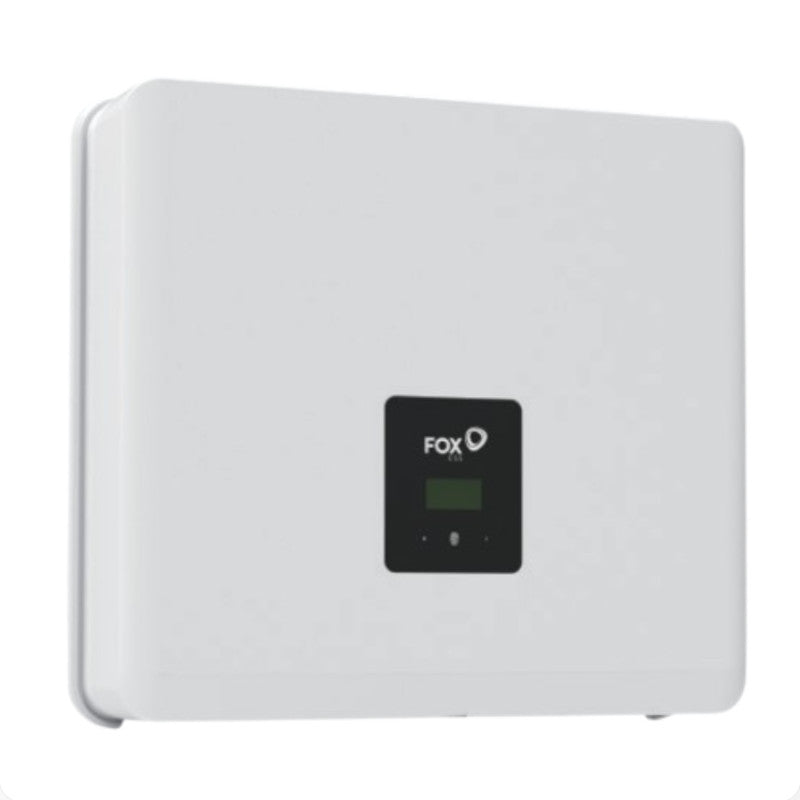

The Fox ESS F3600 G3 (part number FE-F3600-G3) is a 3.6 kW single-phase, dual-MPPT grid-tie PV inverter from the Fox ESS F Series range. With a maximum efficiency of 97.60%, a Euro efficiency of 96.80%, and an MPPT tracking efficiency of 99.80%, the F3600 delivers high conversion performance across two independent MPPT trackers, each accepting up to 20 A input. It features a wide MPPT operating range of 60 V to 550 V, a maximum input voltage of 600 V, and a total maximum DC input of 7,200 W (4,000 W per MPPT). The F3600 G3 is IP65 rated for outdoor installation, weighs 9.5 kg or less, and measures 358 x 335 x 155 mm. It includes internal WiFi for monitoring via FoxCloud V2.0 and is battery ready for future upgrade when paired with a Fox ESS charge controller. Available from DECO Group, a UK solar wholesaler for trade installers.
Key Technical Details
- Part number: FE-F3600-G3
- Model: F3600
- Inverter type: Single-phase grid-tie, non-isolated topology
- Rated output power: 3,600 W
- Maximum output apparent power: 3,960 VA
- Nominal AC current: 16.4 A
- Maximum AC current: 18.0 A
- Inrush current: 7.9 A @ 50 µs
- Rated grid voltage: 220/230/240 V
- Rated grid frequency: 50/60 Hz
- Displacement power factor: 1 (adjustable from 0.8 leading to 0.8 lagging)
- Total harmonic distortion (THDi): less than 3% at rated output
- Maximum PV input power: 7,200 W (maximum 4,000 W per MPPT)
- Maximum input voltage: 600 V
- MPPT voltage range: 60 V to 550 V
- MPPT voltage range (full load): 100 V to 550 V
- Nominal DC operating voltage: 360 V
- Start-up voltage (LCD): 60 V
- Start-up voltage (operation): 80 V
- Maximum DC input current: 20 A / 20 A (per MPPT)
- Maximum short-circuit current: 26 A / 26 A (per MPPT)
- Maximum inverter backfeed current to array: 0 mA
- MPPT quantity: 2
- Strings per MPPT: 1 + 1
- MPPT efficiency: 99.80%
- Maximum efficiency: 97.60%
- Euro efficiency: 96.80%
- Connector: MC4 (2 included)
- DC switch: Optional
- AFCI: Optional
- Night mode: Optional
- Surge protection: Type II (DC) and Type II (AC)
- Communication: Meter, CT, RS485
- Monitoring: Internal WiFi; optional external WiFi module, 4G module, or LAN module
- Display: LCD, LED, app, website
- Cooling: Natural convection
- Noise emission (typical): less than 30 dB at 1 m
- Protective class: I
- Ingress protection: IP65
- Overvoltage category: III (AC side), II (PV side)
- Pollution degree: II
- Operating temperature range: -25°C to +60°C (derating at +45°C)
- Storage temperature range: -40°C to +70°C
- Humidity: 0% to 100% (no condensation)
- Maximum operating altitude: 3,000 m
- Standby consumption: less than 1 W (without night mode); less than 3 W (with night mode)
- Dimensions: 358 x 335 x 155 mm (W x H x D)
- Weight: 9.5 kg or less
Key Features
- Dual independent MPPT trackers allow two separate string orientations or roof faces for improved system yield
- 97.60% maximum efficiency with 99.80% MPPT tracking efficiency
- Wide MPPT range of 60 V to 550 V with low operational start-up voltage of 80 V
- Maximum 7,200 W DC input (4,000 W per MPPT) giving a 2:1 DC/AC ratio
- Built-in Type II surge protection on both DC and AC sides
- Internal WiFi included as standard for monitoring via FoxCloud V2.0
- IP65 rated for outdoor installation
- Natural convection cooling, less than 30 dB at 1 m
- Battery ready for future storage upgrade when paired with a Fox ESS charge controller
- This inverter does not include an in-built DC isolation switch; DC switch is an optional addition
System Compatibility
- Part of the Fox ESS F Series dual-MPPT range covering 3.0 kW to 6.0 kW models
- MC4 DC connectors (2 pairs included)
- Battery ready when paired with a Fox ESS charge controller for AC-coupled storage
- Internal WiFi included; external WiFi, 4G, and LAN monitoring modules available as options
- The inverter will report an error if PV voltage exceeds 585 V
Protection Features
- Insulation monitoring
- Residual current monitoring
- DC reverse polarity protection
- Anti-islanding protection
- AC short-circuit protection
- AC overcurrent protection
- AC overvoltage protection
- Temperature protection
- Surge protection: Type II (DC) and Type II (AC)
Certifications and Compliance
- IEC 62109
- G100
- AS4777
- CEI 21
- IEC 61727
Warranty
- Standard warranty: 5 years
- Extended warranty: 10 years when the installation is registered with Fox ESS online
Common Questions
Click a question below to reveal the answer.
Does the Fox ESS F3600 G3 include a DC isolation switch?
No. The DC switch is an optional feature on the F Series G3 range. This inverter does not include an in-built DC isolator as standard.
What is the advantage of dual MPPT on the Fox ESS F3600 G3?
The two independent MPPT trackers allow separate string orientations, roof faces, or shading zones to operate independently, improving total system yield compared to a single-MPPT inverter.
Can the Fox ESS F3600 G3 be used with battery storage?
The F3600 G3 is battery ready. It can be upgraded to include storage when paired with a Fox ESS charge controller.
Does the Fox ESS F3600 G3 include WiFi monitoring?
Yes. The F3600 G3 includes an internal WiFi module as standard for monitoring via FoxCloud V2.0. Optional external 4G and LAN modules are also available.
What are the dimensions and weight of the Fox ESS F3600 G3?
The F3600 G3 measures 358 x 335 x 155 mm (W x H x D) and weighs 9.5 kg or less. It is a single-person lift and install.
