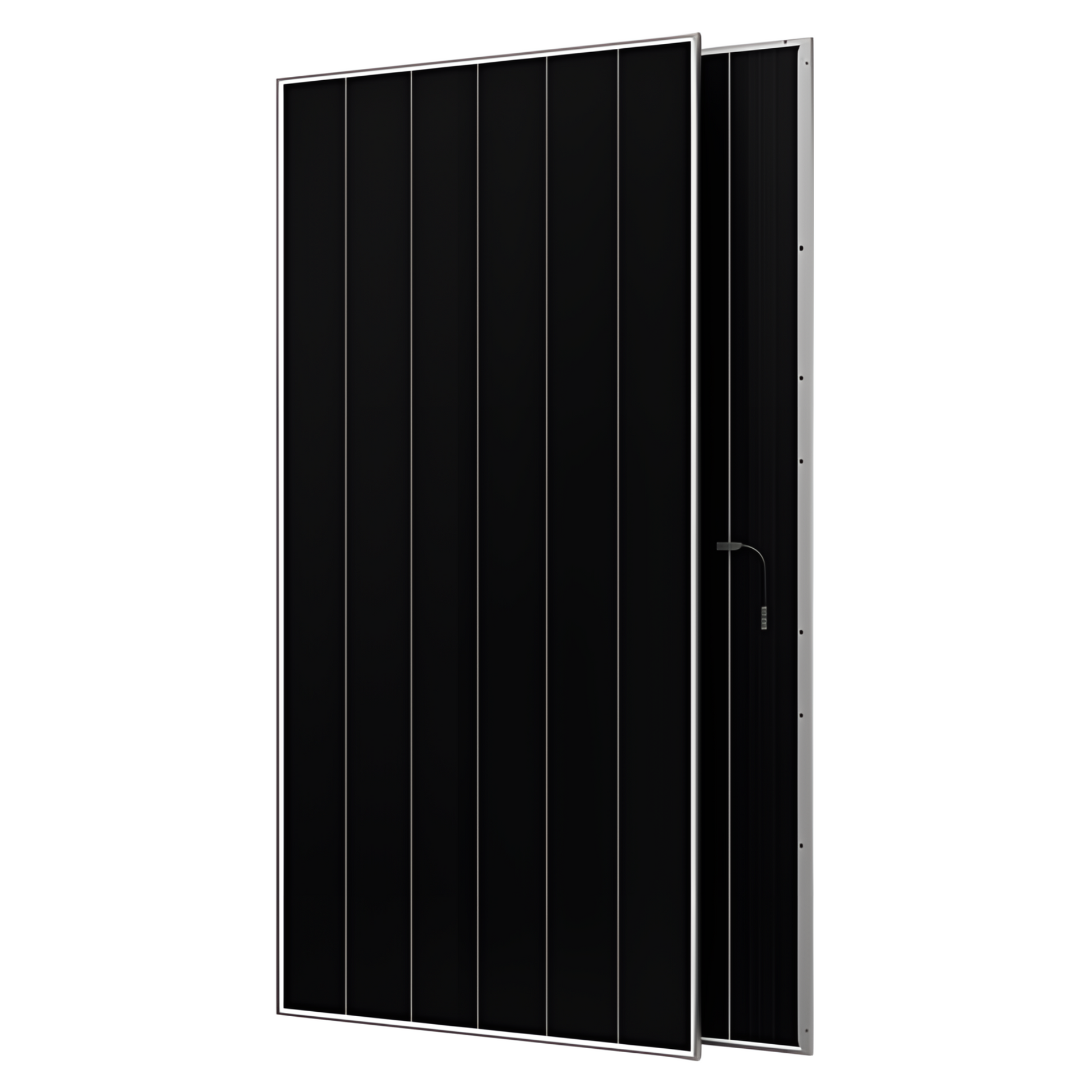

Aiko Stellar 3N+ 665W N-Type ABC Dual-Glass Solar Panel – Silver Frame
The Aiko Stellar 3N+ 665W (part number AIK-A-MDE72-665-SF-DG-01C, manufacturer model AIKO-A665-MDE72Dw) is a 665 W commercial-grade N-Type ABC (All Back Contact) dual-glass solar panel from the Aiko Stellar 3N+ range. With 24.6% module efficiency, a temperature coefficient of -0.26%/°C, dual-glass construction (2.0 + 2.0 mm semi-tempered glass), and a 30-year linear performance warranty backed by Munich Re, the Stellar 3N+ 72-cell format delivers high power density for commercial and utility-scale PV installations. Part of the 650–685 W range with up to 25.4% efficiency across the series. Silver anodised aluminium frame. 1,500 V DC maximum system voltage. IP68 junction box with 3 bypass diodes. Maximum static loading of 5,400 Pa front / 2,400 Pa rear. IEC Class A fire rating. MCS certified. Available from DECO Group, a UK-based solar trade wholesaler.
Key Technical Details
Electrical (STC)
- Part number: AIK-A-MDE72-665-SF-DG-01C
- Manufacturer model: AIKO-A665-MDE72Dw
- Module type: Stellar 3N+72 Dual-Glass
- Cell type: N-Type ABC (All Back Contact)
- Number of cells: 144 (6 x 24)
- Rated power (Pmax): 665 W
- Power tolerance: 0 to +3%
- Module efficiency: 24.6%
- Open-circuit voltage (Voc): 55.20 V
- Voltage at Pmax (Vmp): 45.09 V
- Short-circuit current (Isc): 15.45 A
- Current at Pmax (Imp): 14.75 A
- Maximum system voltage: DC 1,500 V
- Maximum series fuse rating: 30 A
Electrical (NOCT)
- Pmax: 531 W
- Open-circuit voltage (Voc): 51.53 V
- Voltage at Pmax (Vmp): 43.25 V
- Short-circuit current (Isc): 13.26 A
- Current at Pmax (Imp): 12.28 A
Temperature Coefficients
- Temperature coefficient of Isc: +0.05%/°C
- Temperature coefficient of Voc: -0.22%/°C
- Temperature coefficient of Pmax: -0.26%/°C
Mechanical
- Dimensions: 2,382 x 1,134 x 30 mm
- Weight: 32.2 kg (±3%)
- Front glass: 2.0 mm coated semi-tempered glass
- Rear glass: 2.0 mm semi-tempered glass
- Frame: Silver anodised aluminium
- Junction box: IP68, 3 bypass diodes
- Connector: MC4 compatible / Original MC4-EVO2A (see connector note below)
- Cable: 4 mm² (IEC) / 12 AWG (UL), +400 mm / -200 mm or ±1,400 mm
- Clamping: Long side only
- Maximum static loading: Front 5,400 Pa / Back 2,400 Pa
- Hail test: 25 mm diameter hail at 23 m/s
- Fire rating: IEC Class A
- Protection class: Class II
- Operating temperature: -40°C to +70°C
- Pallet quantity: 36 per pallet / 144 per 20' GP / 720 per 40' HC
Connector Note
- The manufacturer datasheet specifies MC4 compatible / Original MC4-EVO2A connectors for the MDE72Dw series. This DECO variant is listed with 01C connectors (as indicated by the "-01C" suffix in the part number). Confirm the connector type for the specific stock variant with DECO Group before ordering extension cables or adapters.
Key Features
- 665 W rated output from a 144-cell format (2,382 x 1,134 mm) for maximum power density on commercial arrays
- 24.6% module efficiency using advanced N-Type ABC cell technology
- Part of the Stellar 3N+ range covering 650–685 W with up to 25.4% efficiency
- Busbar-free design for improved light capture and clean cell appearance
- Dual-glass construction (2.0 + 2.0 mm semi-tempered glass) for enhanced durability
- Excellent temperature coefficient of -0.26%/°C for stronger performance in warm conditions
- Cell-level partial shading optimisation (unique to Aiko ABC technology)
- High temperature limitation for enhanced fire safety
- Resistance to microcracks for long-term mechanical stability
- 5,400 Pa front load and 2,400 Pa rear load ratings
- IEC Class A fire rating
- 1,500 V DC maximum system voltage for commercial string inverter compatibility
- Silver frame for commercial and utility installations
- MCS certified (MR 50677721 0001/1110)
- Bloomberg Tier 1 manufacturer; Munich Re warranty partner
Degradation and Warranty
- First-year degradation: ≤1%
- Annual degradation (year 2–30): ≤0.35%
- Product warranty: 15 years
- Performance warranty: 30-year linear
- Optional Munich Re coverage available upon request
Certifications
- IEC 61215 / IEC 61730
- IEC 61701 / IEC 62716
- ISO 9001, ISO 14001, ISO 14064, ISO 45001
- CE (TÜV Rheinland)
- MCS certified (MR 50677721 0001/1110)
Installation Notes
- At 32.2 kg, a two-person lift is required
- Clamping on long side only
- Verify that open-circuit voltage at minimum expected temperature remains within inverter limits
- Must be installed by a qualified solar installer or competent electrician
Common Questions
Click a question below to reveal the answer.
What is the difference between the Aiko Stellar 3N+ and Neostar 3P+ ranges?
The Stellar 3N+ is the commercial/utility range with larger 144-cell panels in the 650–685 W range (2,382 mm tall, silver frame) designed for large-scale arrays. The Neostar 3P+ is the residential range with 54-cell (490 W) and 60-cell (540 W) formats in black frame with MC4-EVO2A connectors. Both use the same N-Type ABC cell technology and -0.26%/°C temperature coefficient.
What is the NOCT performance of the 665W panel?
Under NOCT conditions (800 W/m², 20°C, 1 m/s wind), the 665 W panel delivers 531 W with Voc 51.53 V, Vmp 43.25 V, Isc 13.26 A, and Imp 12.28 A. NOCT values give a more realistic indication of real-world output than STC ratings.
Is this panel MCS certified for the UK?
Yes. The Aiko Stellar 665 W is MCS certified (MR 50677721 0001/1110).
What degradation guarantees does the 665W panel offer?
Aiko guarantees ≤1% first-year degradation and ≤0.35% per year from year 2 to 30, backed by a 30-year linear performance warranty with optional Munich Re coverage.
About Aiko
Aiko Solar is a Bloomberg Tier 1 manufacturer and a leading developer of high-efficiency ABC (All Back Contact) cell technology. The Aiko product range includes the Neostar 3P+ for residential and the Stellar 3N+ for commercial applications, both recognised with the Intersolar Innovation Award 2023, Red Dot Design Award 2023, and ESG Transparency Award 2024. Munich Re is the warranty partner for the Stellar range.
DECO Group supplies Aiko solar panels across the Neostar and Stellar ranges alongside compatible commercial inverters such as the Solis S5-GC and S6 C&I series, K2 and Renusol mounting systems, and all balance-of-system components for commercial PV installations. Whether you're specifying for a commercial rooftop or ground-mount array, our Aiko Stellar range delivers the highest available ABC cell efficiency for maximum energy density. Browse our solar panel catalogue at decogroup.co.uk or contact our commercial team for project-specific pricing.
