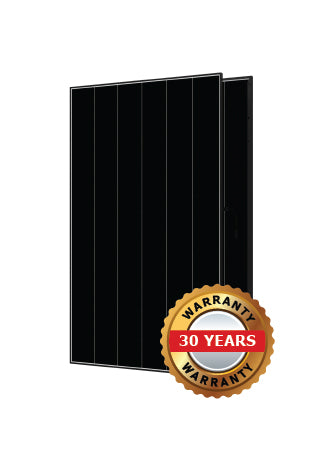

Aiko 540W Neostar 3P+60 N-Type ABC Dual-Glass Solar Panel – Black Frame
The Aiko AIKO-A540-MCE60Dw (part number AIK-A-MCE60-540-BF-DG-G3) is a 540 W premium N-Type ABC (All Back Contact) dual-glass solar panel from the third-generation Aiko INFINITE module range. The 60-cell format delivers 24.4% module efficiency with a temperature coefficient of -0.26%/°C, dual-glass construction, and a 30-year linear performance warranty. The busbar-free design provides a clean architectural appearance with a black anodised aluminium frame. Part of the Neostar 3P+ 60-cell range covering 530 W to 550 W with up to 24.8% efficiency across the series. 1,500 V DC maximum system voltage. MC4-EVO2A connectors. MCS certified. Available from DECO Group, a UK-based solar trade wholesaler.
Key Technical Details
Electrical (STC)
- Part number: AIK-A-MCE60-540-BF-DG-G3
- Manufacturer model: AIKO-A540-MCE60Dw
- Module type: Neostar 3P+60 Dual-Glass
- Cell type: N-Type ABC (All Back Contact)
- Number of cells: 60
- Rated power (Pmax): 540 W
- Module efficiency: 24.4%
- Open-circuit voltage (Voc): 45.6 V
- Voltage at Pmax (Vmp): 38.4 V
- Short-circuit current (Isc): 14.84 A
- Current at Pmax (Imp): 14.07 A
- Maximum system voltage: DC 1,500 V
Temperature Coefficients
- Temperature coefficient of Pmax: -0.26%/°C
- Temperature coefficient of Voc: -0.22%/°C (series specification)
- Temperature coefficient of Isc: +0.05%/°C (series specification)
Mechanical
- Dimensions: 1,954 x 1,134 x 30 mm
- Weight: 27.1 kg
- Glass: Dual glass
- Frame: Black anodised aluminium
- Connector: Original MC4-EVO2A (Stäubli)
- Cable length: 1.2 m
- Clamping: Long side only
- Fire rating: IEC Class A (series specification)
- Protection class: Class II (series specification)
Key Features
- 540 W rated output from a 60-cell format (1,954 x 1,134 mm) for high power density on larger roof areas
- 24.4% module efficiency using advanced N-Type ABC cell technology
- Busbar-free design for clean architectural appearance and improved light capture
- Dual-glass construction for enhanced durability and environmental resistance
- Excellent temperature coefficient of -0.26%/°C for stronger performance in warm conditions
- Cell-level partial shading optimisation (unique to Aiko ABC technology)
- High temperature limitation for enhanced fire safety
- Resistance to microcracks for long-term mechanical stability
- 1,500 V DC maximum system voltage
- MC4-EVO2A connectors for reliable system integration
- MCS certified (MR 50677721 0001/2118)
Degradation and Warranty
- Product warranty: 15 years (extendable to 25 years in eligible markets)
- Performance warranty: 30-year linear performance warranty
Installation Notes
- At 27.1 kg, a two-person lift is recommended
- Clamping on long side only
- Minimum installation tilt angle of 10° for drainage
- Minimum 10 mm spacing between adjacent modules
- Verify that open-circuit voltage at minimum expected temperature remains within inverter limits
- Must be installed by a qualified solar installer or competent electrician
Common Questions
Click a question below to reveal the answer.
What is the difference between the Aiko 490W and 540W panels?
The 490 W uses a 54-cell format (1,762 x 1,134 mm, 24.2 kg) while the 540 W uses a larger 60-cell format (1,954 x 1,134 mm, 27.1 kg). Both share the same N-Type ABC technology, -0.26%/°C temperature coefficient, dual-glass construction, and warranty terms. The 540 W has higher Voc (45.6 V vs 41.1 V), making it better suited for longer strings on larger arrays.
What cell technology does this panel use?
N-Type ABC (All Back Contact) technology, which relocates all electrical contacts to the rear of the cell. This eliminates front-side busbars, increases the active light-absorbing area, and creates a clean uniform appearance.
Is this panel MCS certified for the UK?
Yes. The Aiko 540 W is MCS certified (MR 50677721 0001/2118), qualifying for the Smart Export Guarantee in the UK.
What connectors does the Aiko 540W use?
Original Stäubli MC4-EVO2A connectors with 1.2 m cable length.
About Aiko
Aiko Solar is a leading manufacturer of high-efficiency solar cells and modules, pioneering ABC (All Back Contact) cell technology. The Neostar 3P+ range has been recognised with the Intersolar Innovation Award 2023, Red Dot Design Award 2023, and ESG Transparency Award 2024.
DECO Group supplies Aiko Neostar solar panels in both 54-cell and 60-cell formats alongside compatible inverters, mounting systems, and installation accessories. Browse our solar panel catalogue for premium residential and commercial PV modules.
