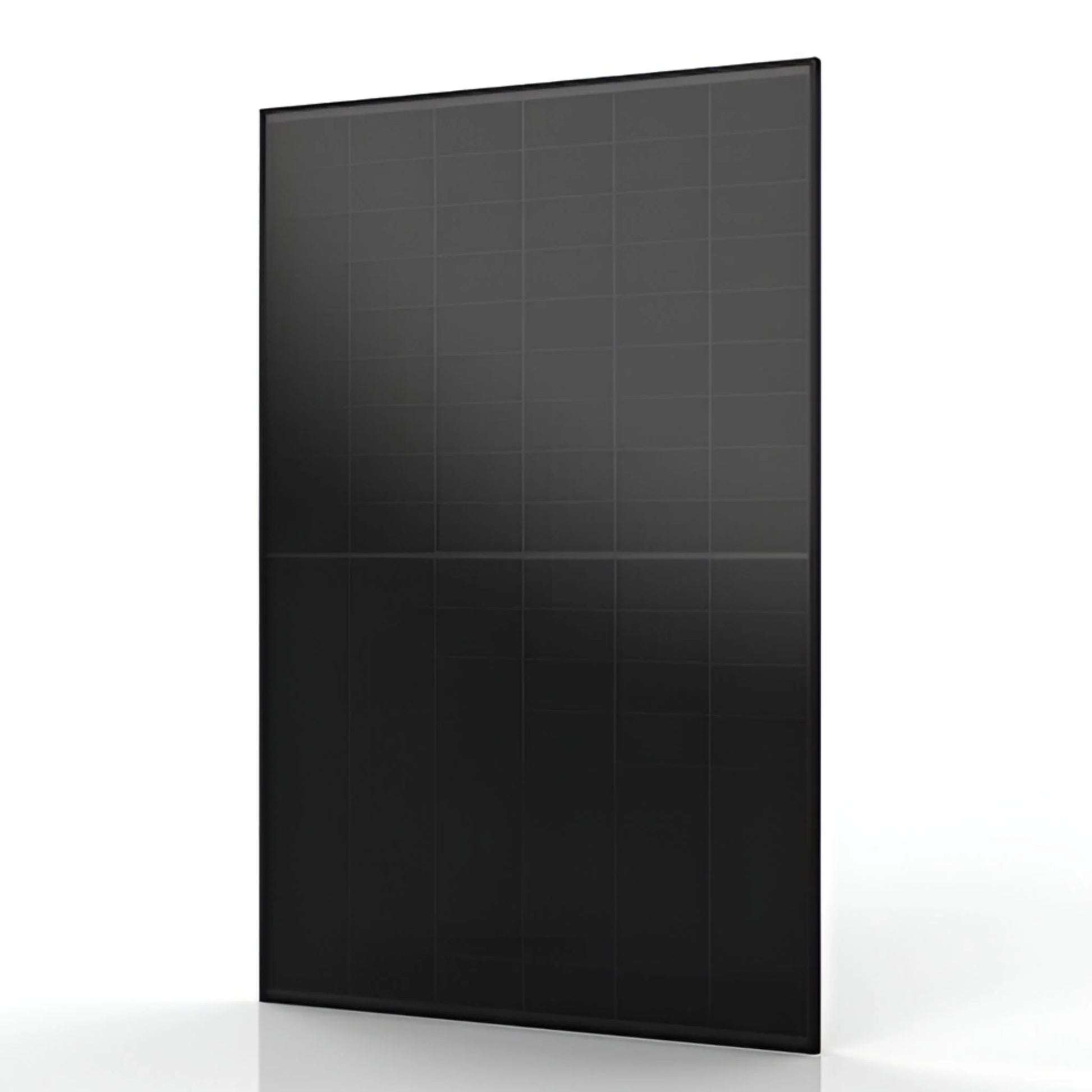

Aiko 485W Neostar 3S N-Type ABC All-Black Mono-Glass Solar Panel
The Aiko AIKO-A485-MCE54Mb (part number AIK-A-MCE54-485-AB-G3) is a 485 W all-black N-Type ABC (All Back Contact) mono-glass solar panel from the third-generation Aiko Neostar 3S range. With 24.3% module efficiency, a temperature coefficient of -0.26%/°C, single-glass construction, and a true all-black appearance (black frame, black backsheet, no visible busbars), the Neostar 3S delivers premium aesthetics with high performance for design-conscious residential installations. Gen 3 modules feature Precision Overlap Soldering for a larger active cell surface and 15–20 W higher output than Gen 2. 25-year product warranty and 30-year performance warranty. 1,500 V DC maximum system voltage. MC4-EVO2 connectors. Available from DECO Group, a UK-based solar trade wholesaler.
Key Technical Details
Electrical (STC)
- Part number: AIK-A-MCE54-485-AB-G3
- Manufacturer model: AIKO-A485-MCE54Mb
- Module type: Neostar 3S All-Black Mono-Glass
- Cell type: N-Type ABC (All Back Contact)
- Number of cells: 54
- Rated power (Pmax): 485 W
- Module efficiency: 24.3%
- Open-circuit voltage (Voc): 41.0 V
- Voltage at Pmax (Vmp): 34.6 V
- Short-circuit current (Isc): 14.84 A
- Current at Pmax (Imp): 14.02 A
- Maximum system voltage: DC 1,500 V
- Temperature coefficient of Pmax: -0.26%/°C
Mechanical
- Dimensions: 1,762 x 1,134 x 30 mm
- Weight: 21 kg
- Glass: Mono-glass (single glass)
- Backsheet: Black
- Frame: Black anodised aluminium
- Connector: MC4-EVO2 (Stäubli)
- Cable: 1,200 mm landscape cable included
- Clamping: Long side only
Key Features
- 485 W rated output with 24.3% efficiency from a compact 54-cell format
- True all-black appearance: black frame, black backsheet, no visible busbars
- N-Type ABC cell technology with Precision Overlap Soldering for maximum active cell area
- Mono-glass construction at just 21 kg — lighter than the dual-glass equivalent
- Excellent temperature coefficient of -0.26%/°C
- Cell-level partial shading optimisation (unique to Aiko ABC technology)
- High temperature limitation for enhanced fire safety
- Resistance to microcracks for long-term mechanical stability
- Gen 3 delivers 15–20 W higher output than Gen 2 modules
- 1,500 V DC maximum system voltage
- 25-year product warranty (extended vs 15 years on the dual-glass variant)
Neostar 3S vs Neostar 3P+ Comparison
- Neostar 3S (this product): Mono-glass, all-black (black backsheet), 485 W, 21 kg, 25-year product warranty. Optimised for residential aesthetics.
- Neostar 3P+ (dual-glass): Dual-glass construction, black frame, 490 W, 24.2 kg, 15-year product warranty. Optimised for durability and environmental resistance.
- Both share the same N-Type ABC technology, -0.26%/°C temperature coefficient, 30-year performance warranty, and 1,762 x 1,134 x 30 mm dimensions.
Warranty
- Product warranty: 25 years
- Performance warranty: 30-year linear performance warranty
Installation Notes
- At 21 kg, manageable for a single-person installation
- Clamping on long side only
- 1,200 mm landscape cable included
- Verify that open-circuit voltage at minimum expected temperature remains within inverter limits
- Must be installed by a qualified solar installer or competent electrician
Common Questions
Click a question below to reveal the answer.
What is the difference between the Aiko Neostar 3S and 3P+?
The 3S is the all-black mono-glass variant (485 W, 21 kg, 25-year product warranty), designed for visually sensitive residential rooftops. The 3P+ is the dual-glass variant (490 W, 24.2 kg, 15-year product warranty), offering enhanced durability. Both use identical N-Type ABC technology and share the same dimensions.
Why is the all-black panel rated at 485W vs 490W for the dual-glass?
The mono-glass all-black construction with a black backsheet absorbs slightly more heat than the dual-glass variant, resulting in a marginally lower rated power at STC. The difference in real-world output is minimal.
Why does the all-black panel have a longer product warranty?
The Neostar 3S all-black carries a 25-year product warranty vs 15 years on the 3P+ dual-glass. Both share a 30-year performance warranty. Refer to the manufacturer's warranty terms for full details.
Is this panel suitable for heritage or conservation area roofs?
The true all-black appearance (black frame, black backsheet, no visible busbars) makes it one of the most aesthetically discreet panels available, which may help with planning considerations on visually sensitive properties. However, planning approval is always subject to local authority requirements.
About Aiko
Aiko Solar is a leading manufacturer of high-efficiency solar cells and modules, pioneering ABC (All Back Contact) cell technology. The Neostar range has been recognised with the Intersolar Innovation Award 2023, Red Dot Design Award 2023, and ESG Transparency Award 2024.
DECO Group supplies Aiko Neostar solar panels in both all-black (3S) and dual-glass (3P+) variants alongside compatible inverters, mounting systems, and installation accessories. Browse our solar panel catalogue for premium residential PV modules.
